Autel MaxiCharger DC Fast - Page 34

28
Table 5-3 Digging a Hole Specifications
Parameter
Specification
MaxiCharger DC 120 MaxiCharger DC 240
A1
640 mm 25.2 in 740 mm 29.13 in
A2
820 mm 32.28 in 820 mm 32.28 in
A3
500 mm 19.68 in 500 mm 19.68 in
Pour the concrete into the hole. Make sure that the cable duct/conduit is in the
correct position. Ensure that the conduit come out of the surface within the
marked area (C). See Figure 5-4 Drilling Holes and Table 5-6 Drilling Holes
Specifications.
Table 5-4 Foundation Specifications
Parameter
Specification
MaxiCharger DC 120 MaxiCharger DC 240
X
820 mm 32.28 in 820 mm 32.28 in
X1
285 mm 11.22 in 275 mm 10.83 in
Y
640 mm 25.2 in 740 mm 29.13 in
Y1
190 mm 7.48 in 151 mm 5.94 in

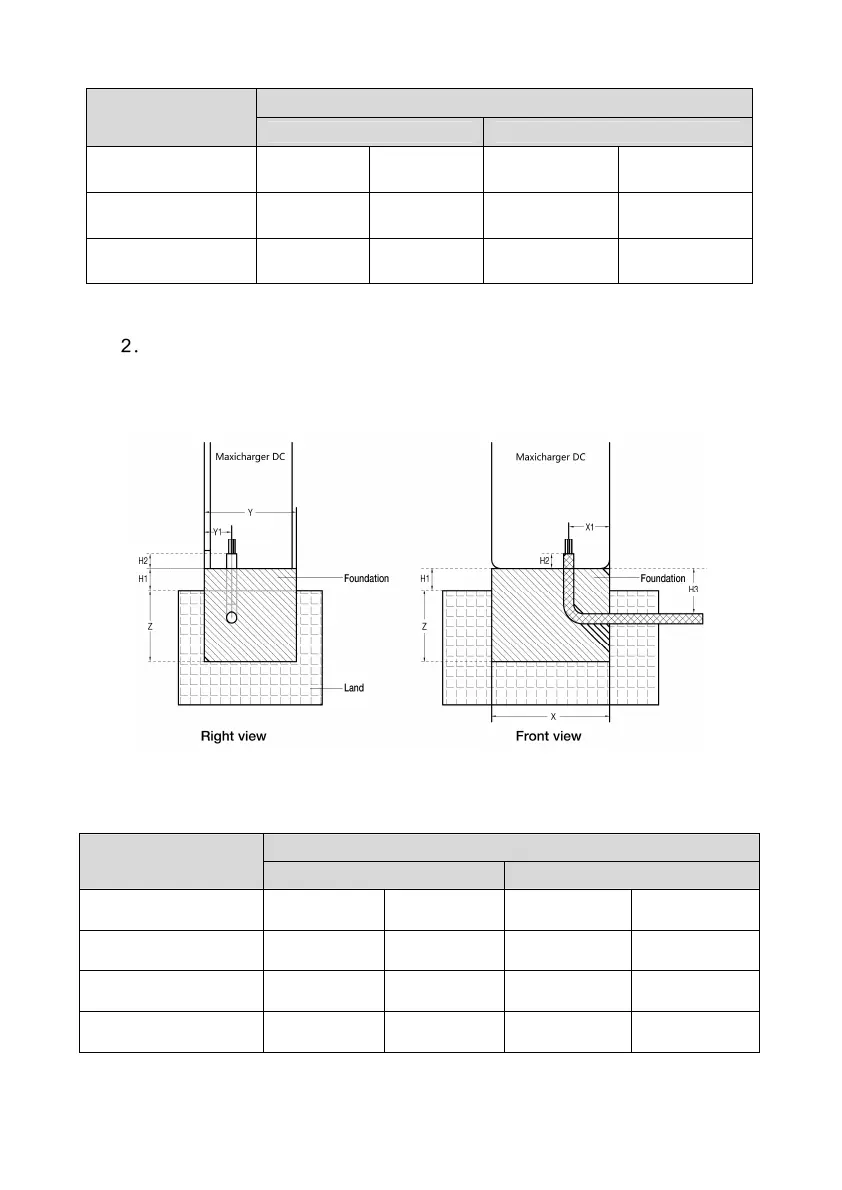

Figure 5-3 Pouring the Concrete and Setting the Conduit
