Autonics DPU Series User Manual
5
of 1
of 1 rating
61 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...

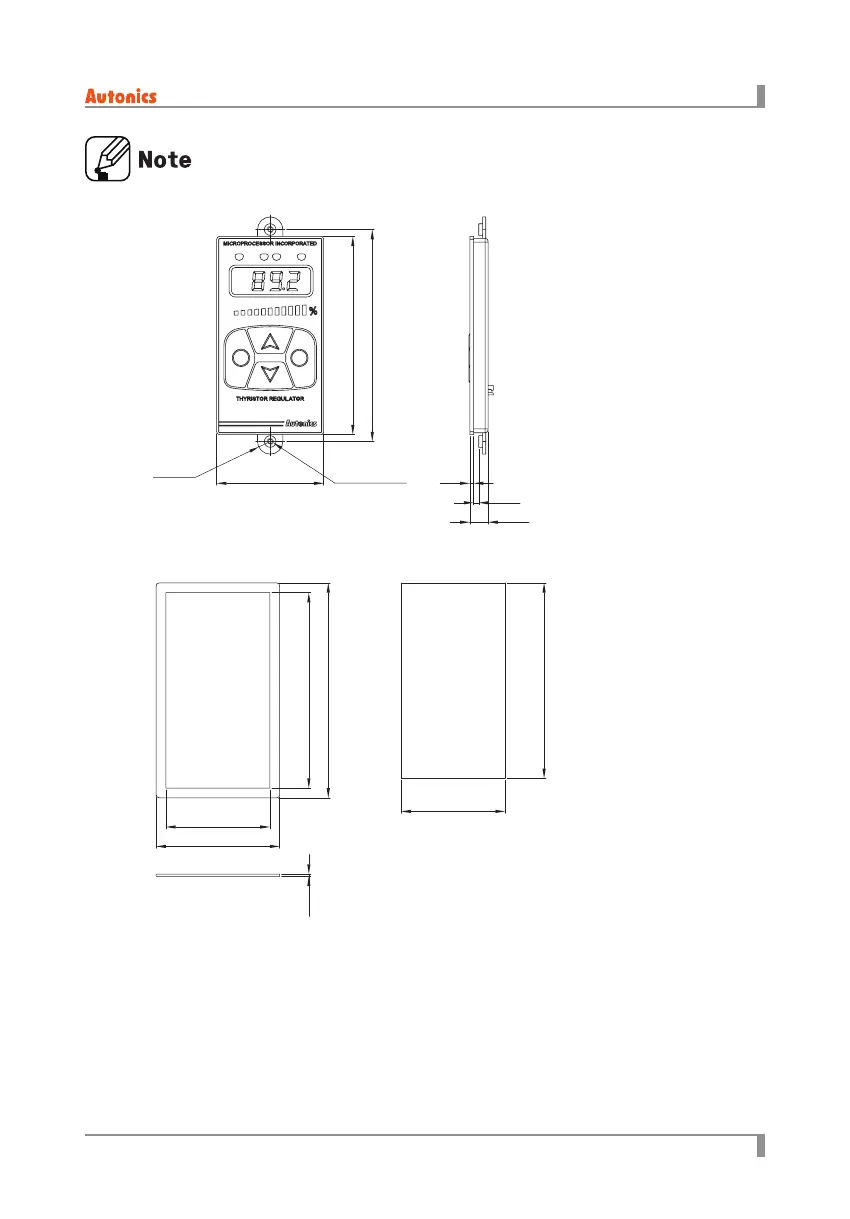

Dimensions
21
© Copyright Reserved Autonics Co., Ltd.
-|T
ransparent setting guide|-
Remote display unit
102
109
55
2-M3 T
AP
2-R6.5
2.6
2
9.4
Remote display plate
Remote display panel cut-out
100.5
110.5
1.2
53.5
63.5
100.5
+0.5
0
53.5
+0.5
0
※
It is recommended for remot
e panel cable to use max. 5 m to prev
ent noise. (Check the length
when ordering it.)
18
20
Table of Contents
User Manual Guide
4
User Manual Symbols
5
Safety Considerations
6
Table of Contents
7
Table of Contents
8
Product Introduction
9
Features
9
Ordering Information
10
Unit Description
11
Specifications
13
Connections
20
Single-Phase (DPU1 Series)
20
3-Phase (DPU3 Series)
22
Installation and Initial Operation
24
Installation
24
Initial Display
24
Parameter Setting Group
24
Parameters
24
Monitoring Mode
25
Operation Mode [ OP ]
26
Setting Mode 1 [ ST-1 ]
27
Setting Mode 2 [ ST-2 ]
28
Parameter Setting and Functions
30
Control Input
30
Functions
31
Control Method [ C-MD ]
31
Soft Start [ ST-T ]
34
Start Limit [ S-LM ] and Start Limit Time [ S-LT ]
35
Output Slope Setting [ SLOP ]
35
Output Slope Manual Adjustment [ A-GA ]
36
Base-Up [ B-UP ]
36
Slow Up/Slow down [ UP-T / DN-T ]
37
Output High Limit Value [ H-OL ], Output Low Limit Value [ L-OL ]
37
Digital Input (DI)
38
Proportional and Integral Constant Set of Feedback Control
40
Input Correction[ IN-B ]
41
Input Slope Correction [ SPAN ]
41
Display Value Content [ DISP ], Bar Graph Content [ BAR ]
41
Load Resistance Display Method [ DRES ]
42
Full Load Auto Recognition [ F-LD ]
43
Parameter Lock [ LOCK ]
43
Alarm
44
Overcurrent Alarm [ OC-A ]
44
Current Limit [ C-LM ]
44
Overvoltage Alarm [ OV-A ]
45
Fuse Disconnection Alarm [ FUSE ]
45
Heatsink Overheating Alarm [ HEAT ]
45
Element Error Alarm [ SCR ]
45
Heater Disconnection Alarm [ HB-A ]
46
Factory Default
48
Maintenance
50
Fuse
50
Single-Phase (DPU1 Series)
50
3-Phase (DPU3 Series)
51
Thyristor (SCR)
51
Modbus Mapping Table
52
Function Code 3 (0×03) = Read Holding Resisters
52
Function Code 4 (0×04) = Read Input Resisters
52
Function Code 6 (0×06) = Write Single Resisters
53
Function Code 16 (0×10) = Write Multiple Resisters
53
Address Mapping Table
54
Input Resisters
54
Holding Resisters
56
Other manuals for Autonics DPU Series
Manual
22 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Autonics DPU Series and is the answer not in the manual?
Ask a question
Autonics DPU Series Specifications
General
Brand
Autonics
Model
DPU Series
Category
Controller
Language
English
