Autonics DPU Series User Manual

5. Installation and Initial Operation
28
© Copyright Reserved Autonics Co., Ltd.
-|Transparent setting guide|-

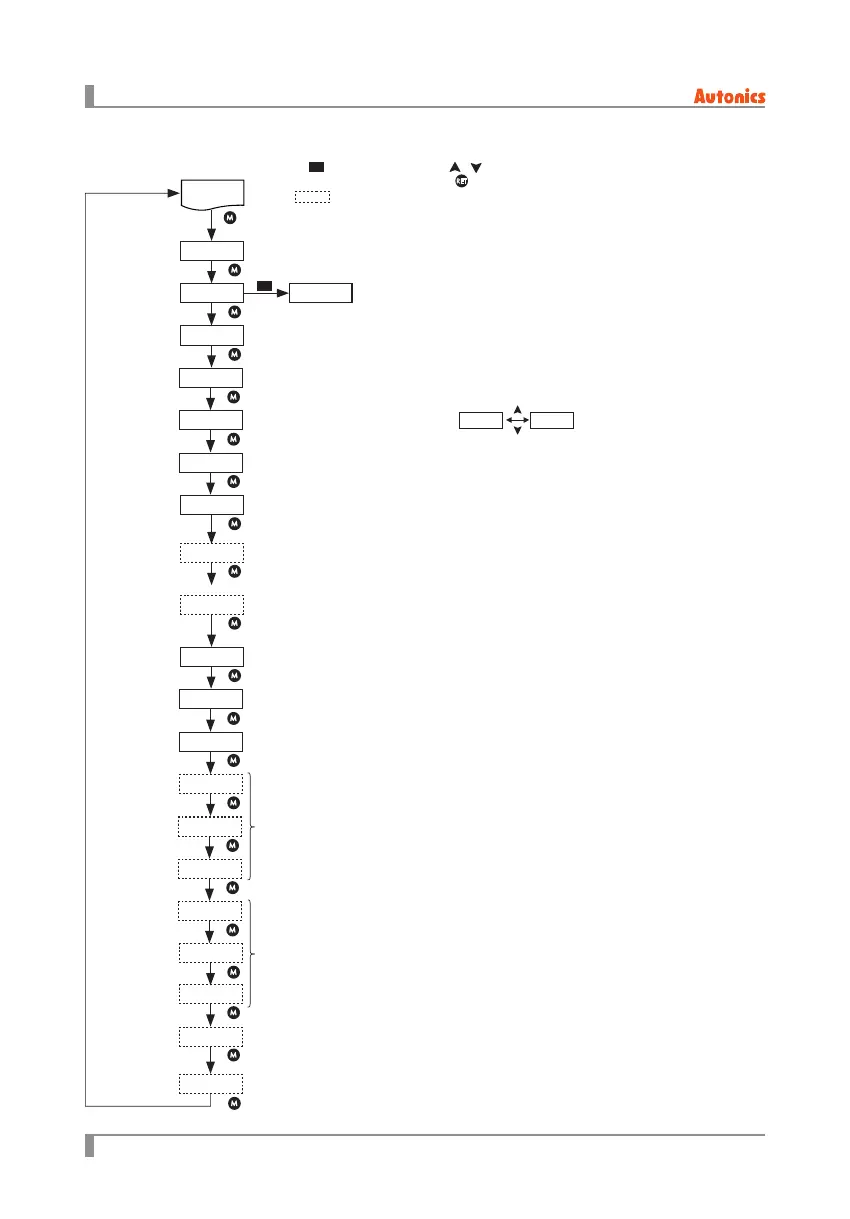

5.3.3 Operation Mode [
OP
]
Displays operating mode.
Set soft start time.
• Setting range: 0 to 100 sec
Set limit output value.
• Setting range: 0 to 110%
Set start limit time.
• Setting range: 0 to 100 sec
Set output slope manual adjustment.
Set output change ratio by control input.
• Setting range: 0.00 to 1.00%
※
Not displayed when output slope manual adjustment [ A-GA] is ON.
Set base-up value.
• Setting range: 0 to 100%
Set output low-limit.
• Setting range: 0 to 110%
Set output high-limit.
• Setting range: 0 to 110%
Set current limit value.
• Setting range: 0 to 110%
• Setting range: 0 to 100%
※
Displayed only when DI-1 to DI-3 of ST-1 mode is set SP M or SP1 to SP3.
Set proportional constant.
• Setting range: 1 to 2000
※
Displayed only for constant voltage, constant current, constant power in phase control.
Set integral constant.
• Setting range: 0.1 to 999.9
※
Displayed only for constant voltage, constant current, constant power in phase control.
• Setting range: 0 to 100%
※
Displayed only when DI-1 of ST-1 is set SP M.
Set slow-up time.
• Setting range: 0 to 999 sec
※
Not displayed when C-MD mode is set as cycle control.
Set slow-down time.
• Setting range: 0 to 999 sec
※
Not displayed when C-MD mode is set as cycle control.
OP
H-OL
50ST-T
C-LM
S-LM
SP1
S-LT
SP2
A-GA
SP3
SLOP
SP4
B-UP
SP5
UP-T
SP6
DN-T
P
L-OL
I
P
Operating
mode
Soft start time
Start limit
Start limit time
Output slope
Base up
Slow up
Slow down
Output low-limit
value
Output high-limit
value
Current limit
Setting point 1
Setting point 2
Setting point 3
Setting point 4
Setting point 5
Setting point 6
Proportional
constant
Integral
constant
Output slope
manual
adjustment
※
1
RUN
mode
3 sec
※
1.
P
: Press any key among , .
※
To return RUN mode, press the
key at any parameter, or not to operate any keys in 30 sec.
※
: This parameter may or may not appear, depending on the other parameter settings.
OFFON
