Autonics DPU Series User Manual

6. Parameter Setting and Functions
39
© Copyright Reserved Autonics Co., Ltd.
-|Transparent setting guide|-

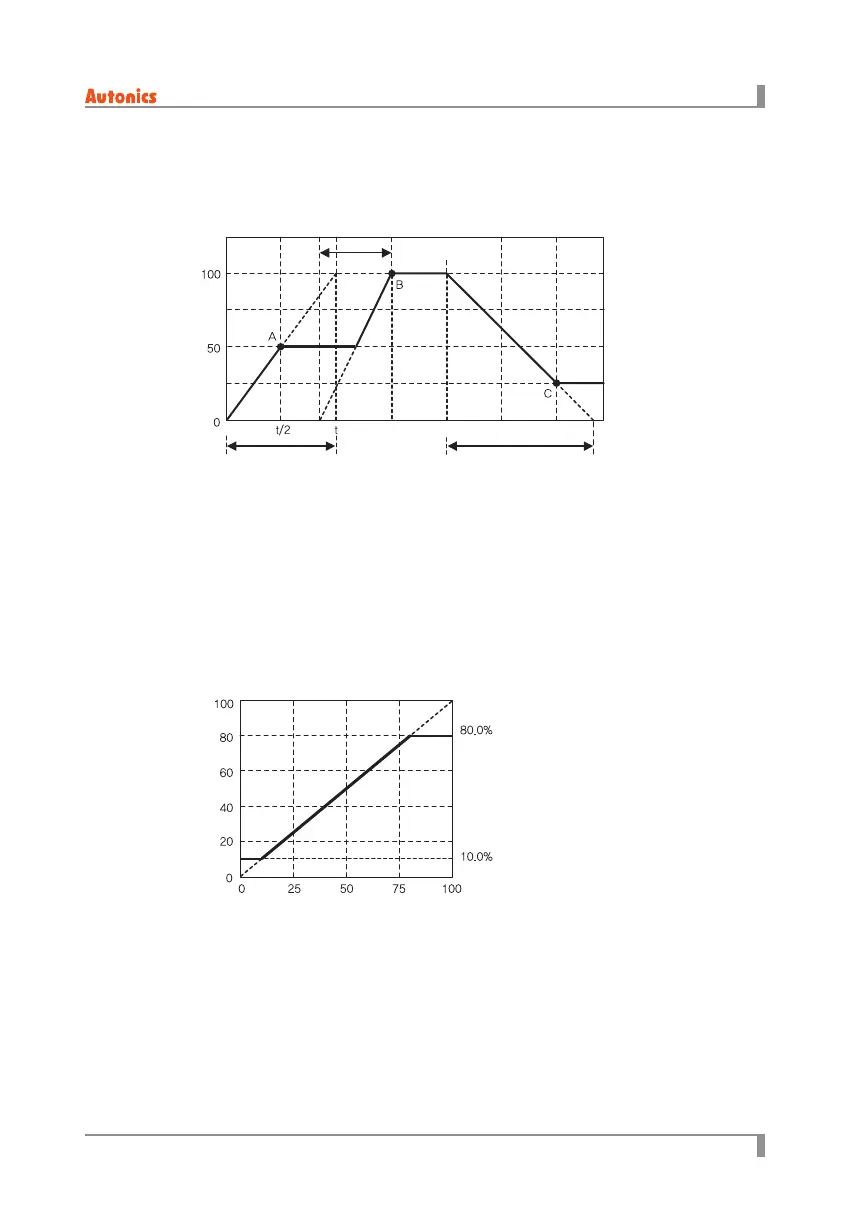

6.2.7 Slow up/Slow down [
UP-T
/
DN-T
]
It is same purpose as soft start function.
Soft start starts only one time at rst but slow up/slow down function start during operation.
Regardless of control method setting (phase control or cycle control), it operates as phase control.
A: Soft start ends
B: Slow up ends
C: Slow down ends
When it reaches to the target output value, slow up/slow down functions end. When it sets as ‘0’,
slow up/slow down do not operate.
• Setting range: 0 to 999 (unit: sec)
6.2.8 Output high limit value [
H-OL
], Output low limit value [
L-OL
]
This function is to high/low limit output range to protect load.
• Setting range:
0 to 110
(unit: %)
(Output low limit value < Output high limit value)
Output(%)
SOFT START set time
Time
SLOW UP set time
SLOW DOWN set time
Output high-limit: H-OL
Output low-limit: L-OL
Control input signal(%)
Output(%)
