Autonics DPU Series User Manual

6. Parameter Setting and Functions
38
© Copyright Reserved Autonics Co., Ltd.
-|Transparent setting guide|-

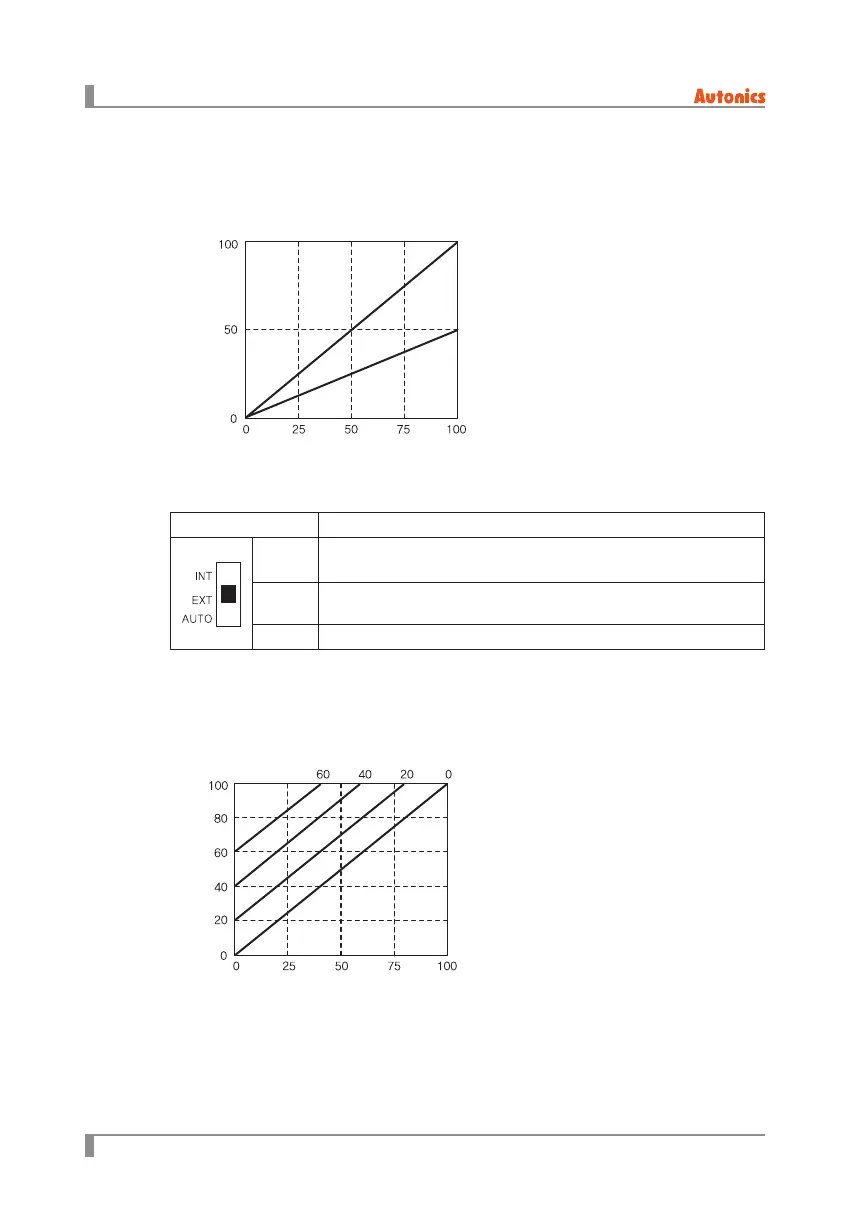

6.2.5 Output slope manual adjustment [
A-GA
]
This function is to adjust manually (internal or external adjuster) output value ratio for control input.
When setting AUTO GAIN function as ON in AUTO operation, [
SLOP
] is not displayed. It displays
slope value by the internal or external adjuster input.
6.2.6 Base-up [
B-UP
]
This function is to add base-up set value to input signal.
It is available only when output low-limit value is 0%.
It is limited by start limit value at initial start.
• Setting range: Base-up set value (%) < Output high-limit value
• Output value for Base-up setting: Input(%)×Slope value+Base-up set value
• Output slope manual adjustment [
A-GA
] setting as ON
: Set output slope by the inner 3- level slide switch
100% of internal or
external adjuster
50% of internal or
external adjuster
Control input signal(%)
Output(%)
Type Description
MAN
MAN
MAN
INT
Adjust output slope with the internal adjuster
MAN
EXT
Adjust output slope with the external adjuster
AUTO No function
BASE-UP SV(%)
Control input signal(%)
Output(%)
