-|Transparent setting guide|-
5. Installation and Initial Operation
5.1 Installation
Turn OFF the main power and open the front cover.
Wire it according to the connection diagrams.

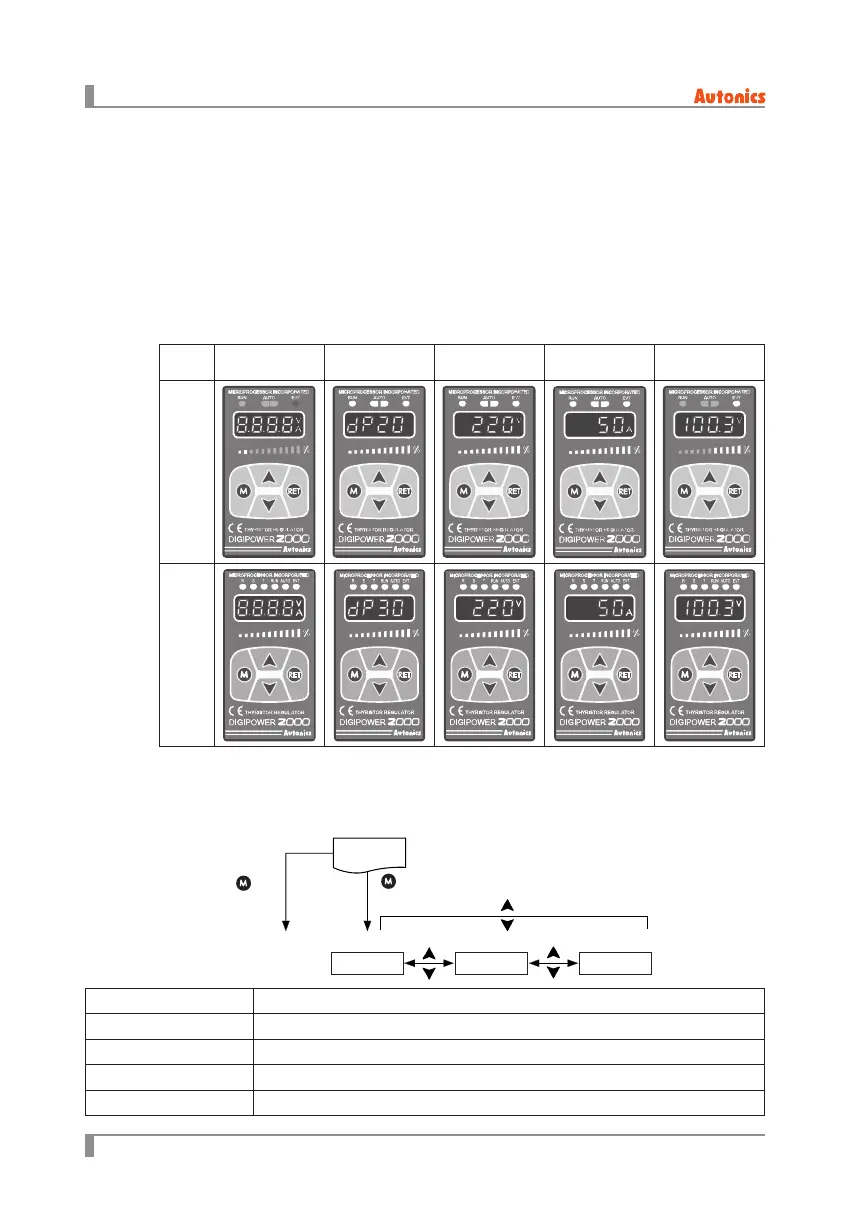

5.2 Initial display
When turning ON the power to the unit, front displays ash for 1 sec and it displays product
version, rated voltage, rated current and operates RUN mode.
5.3 Parameter setting group
5.3.1 Parameters
Mode Descriptions
Monitoring Mode Monitors input value, load voltage/current/power/resistance, power frequency.
Operating Mode[
OP
] Sets parameters for DPU operation
Setting Mode 1[
ST-1
] Sets parameters for details set.
Setting Mode 2[
ST-2
] Sets parameters for alarm
①
Whole ashes
②
Displays
product version
③
Displays rated
voltage
④
Displays rated
current
⑤
RUN mode
Single-
phase
3-phase
ST-2ST-1OP
1 sec
3 sec
Monitoring
mode
Operating mode Setting mode 1 Setting mode 2
RUN
mode
