-|Transparent setting guide|-
(3) Constant current mode [
C-FB
]
If temperature coe󰀩cient of load (platinum, molybdenum, tungsten, etc) changes 6 to 12 times
based on room temperature, it outputs constant current which is proportion to control input not to
change output voltage for power supply variation, load resistance variation.
(4) Constant power mode [
W-FB
]
It outputs constant power which is proportion to control input even though load variation and
power supply variation. It is proper control method for a heater which resistance value variation by
carbide(SIC) heating is big.

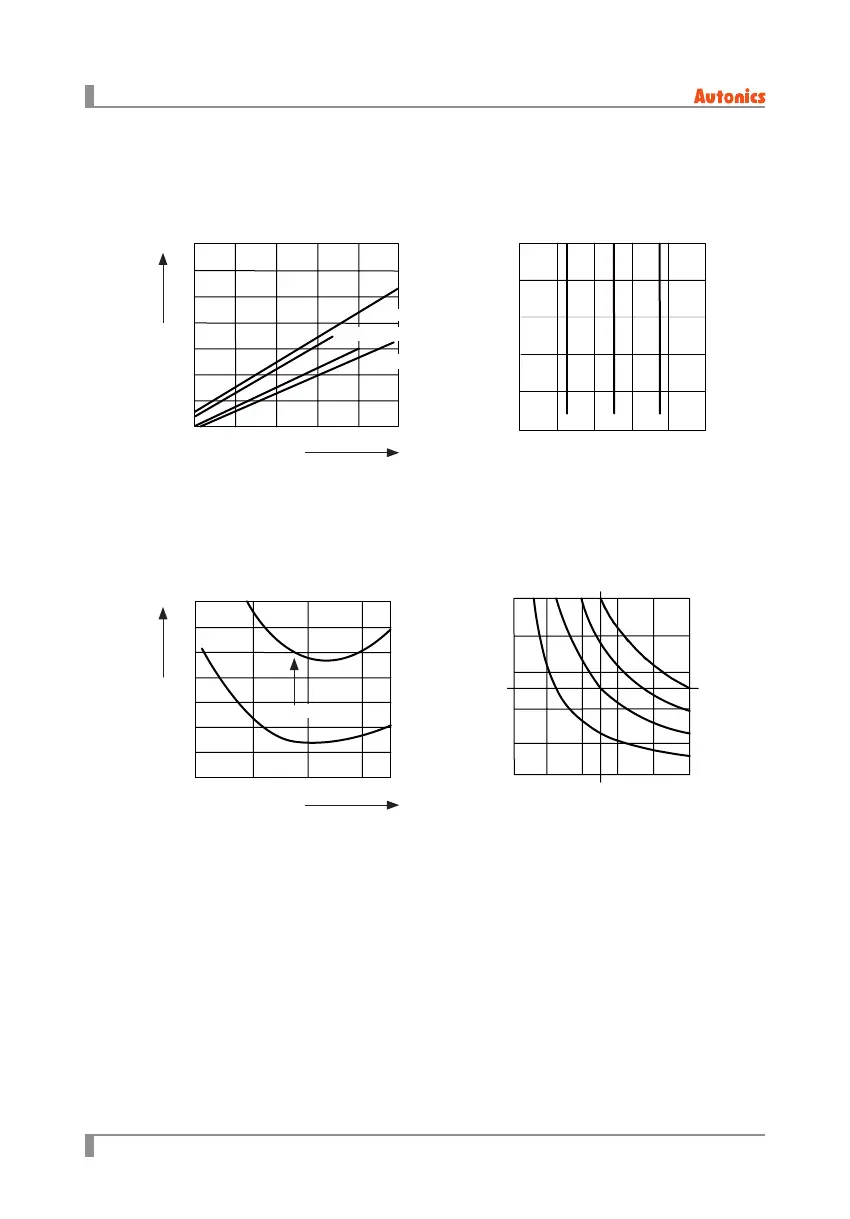

Output characteristics is proper 50% of the curve which connects the point (A) [output voltage
100% × output current 50%] and the point (B) [output voltage 50% × output current 100%].
The current output capacity of this unit should be over two times of load capacity.
