6 Parameter Settings and Functions
68 © Copyright Reserved Autonics Co., Ltd.

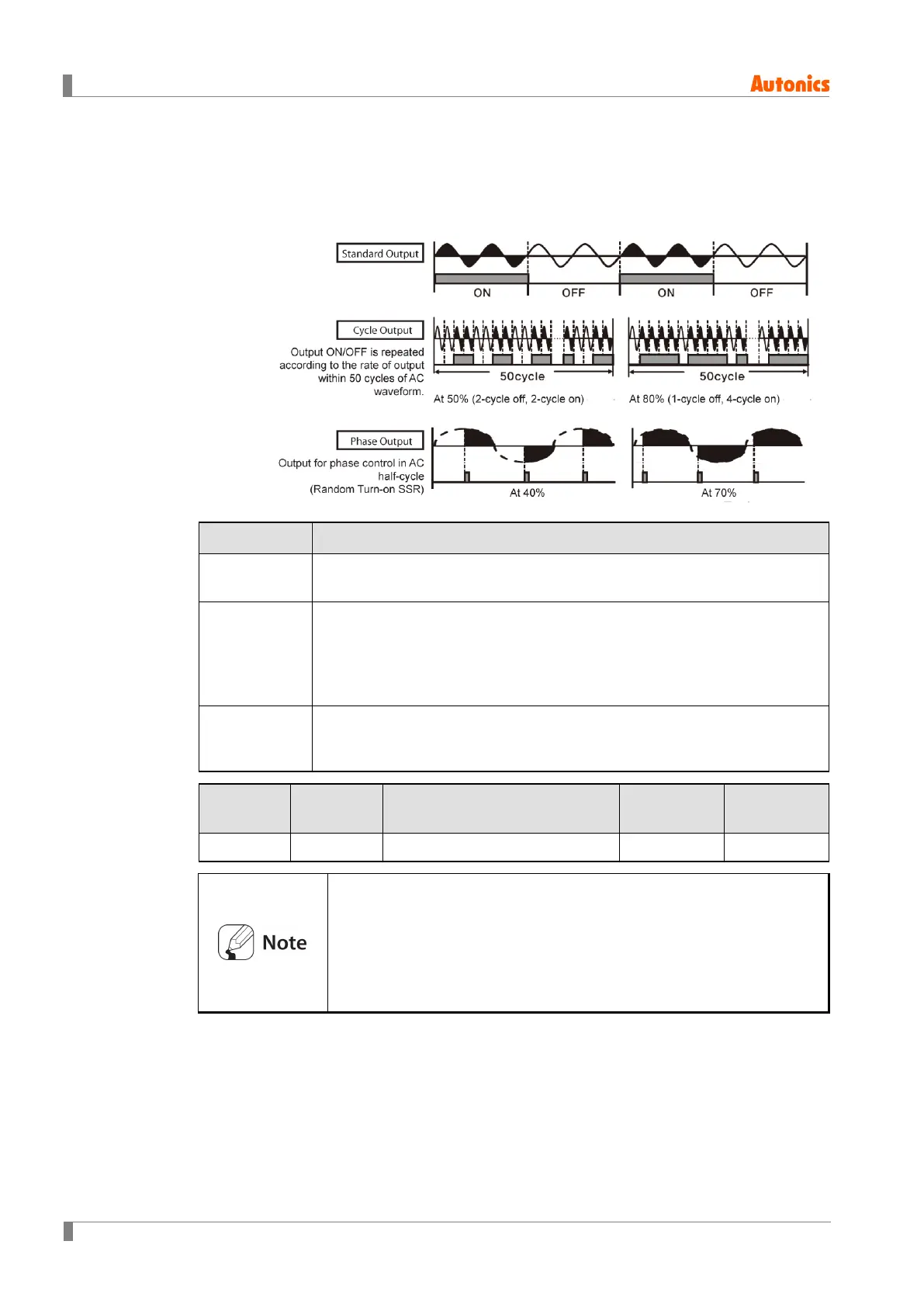

6.2.5.2 SSR Output Type Selection [PAR3 → O1.SR]
In case of selecting SSRP type model for out1 control, users can select SSR output type
among standard, cycle or phase control.
Setting Description
Standard Output
Controlling the load with ON/OFF output, identical to relay output.
Cycle Output
Controlling the load by repeating output ON/OFF according to the rate of
output within a certain cycle
Having improved switching noise characteristics by always conducting
ON/OFF at zero.
Phase Output
Controlling the load via phase control within periodic half cycle (Random
cross SSR must be used.).
Setting
Group
Parameter Setting Range
Factory
Default
Unit
/
/
-
Make sure that SSRP is not available for OUT2. In case of current type
models, SSR is fixed to standard output only. (
).
(
) (
) When selecting phase output (
) or cycle output
(CYCL), the power supply for the load and temperature controllers
must be the same.
In case of selecting phase output or cycle output with PID control type,
control cycle is not available to set.
