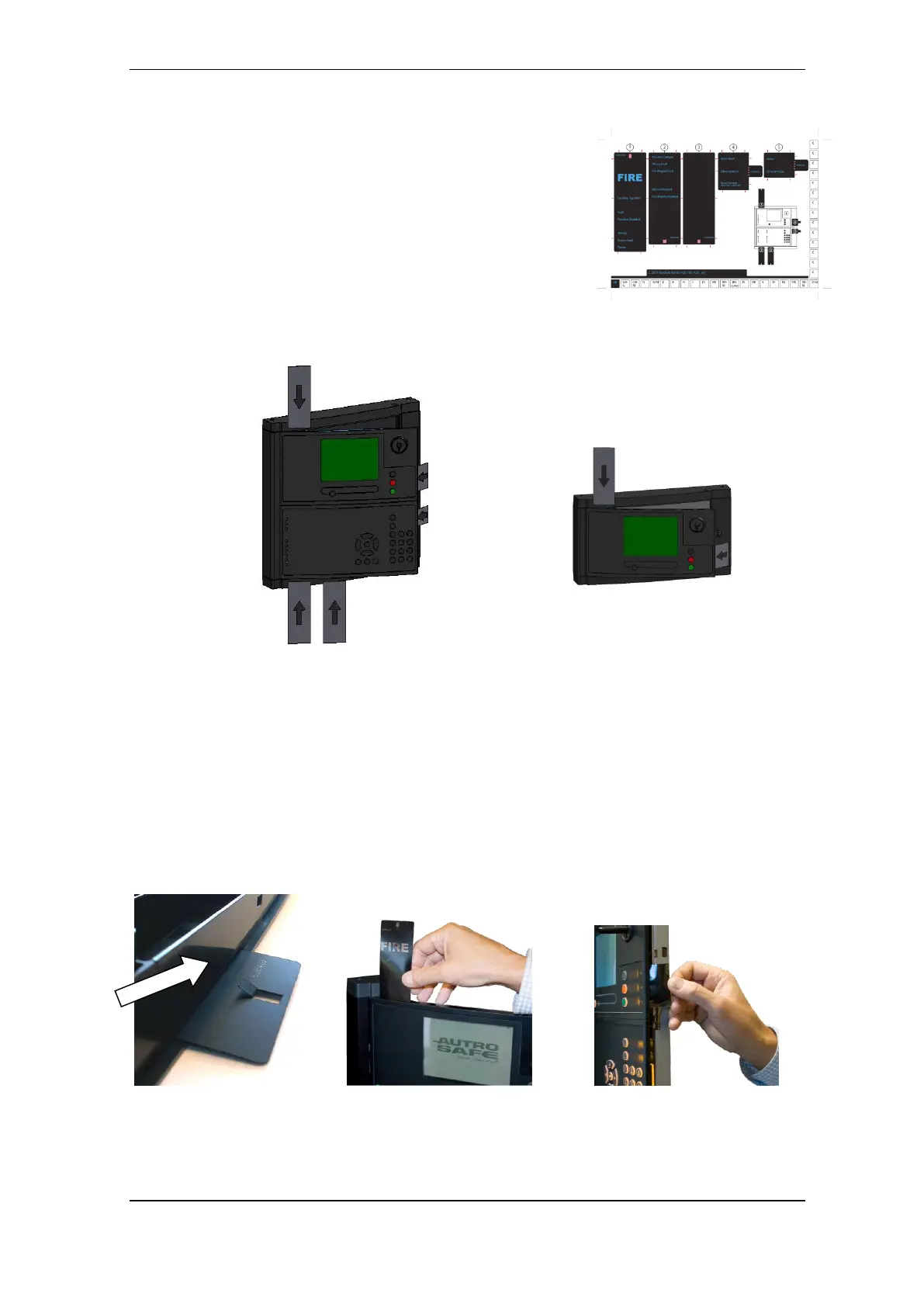

6.8 Inserting Text Foils
◼ Find the text foils in the relevant
language for the panel in question
(foil sheets are delivered with the
panel).
The part numbers are indicated
below.
◼ Make sure that you are holding the textfoil the correct way.
◼ Bend the small flap towards the panel (as shown on the left most
illustation below), then insert the foil into the appropriate slot, and
slightly push it in as far as possible.
◼ The foils that are to be inserted into the slot on the righ hand side of
the panel front have a small flap which can easily be bent (along the
perforation holes).
Fire Alarm Control Panel BS-420 is shown in the example below.
