Connecting External Cables
asafeinstall_dgb, AutroSafe Interactive Fire Detection System, Release 4,
116-P-ASAFE-INSTALL/DGB, Doc-1004796-2, 2021-08-23, Autronica Fire and Security AS
Page 43
10.6.2 AutroNet Single Star Topology
As an option, AutroSafe 4 allows also single Ethernet connections to
one or several panels in a system if redundancy is not required.
Ethernet 1 must always be used for single Ethernet connections.

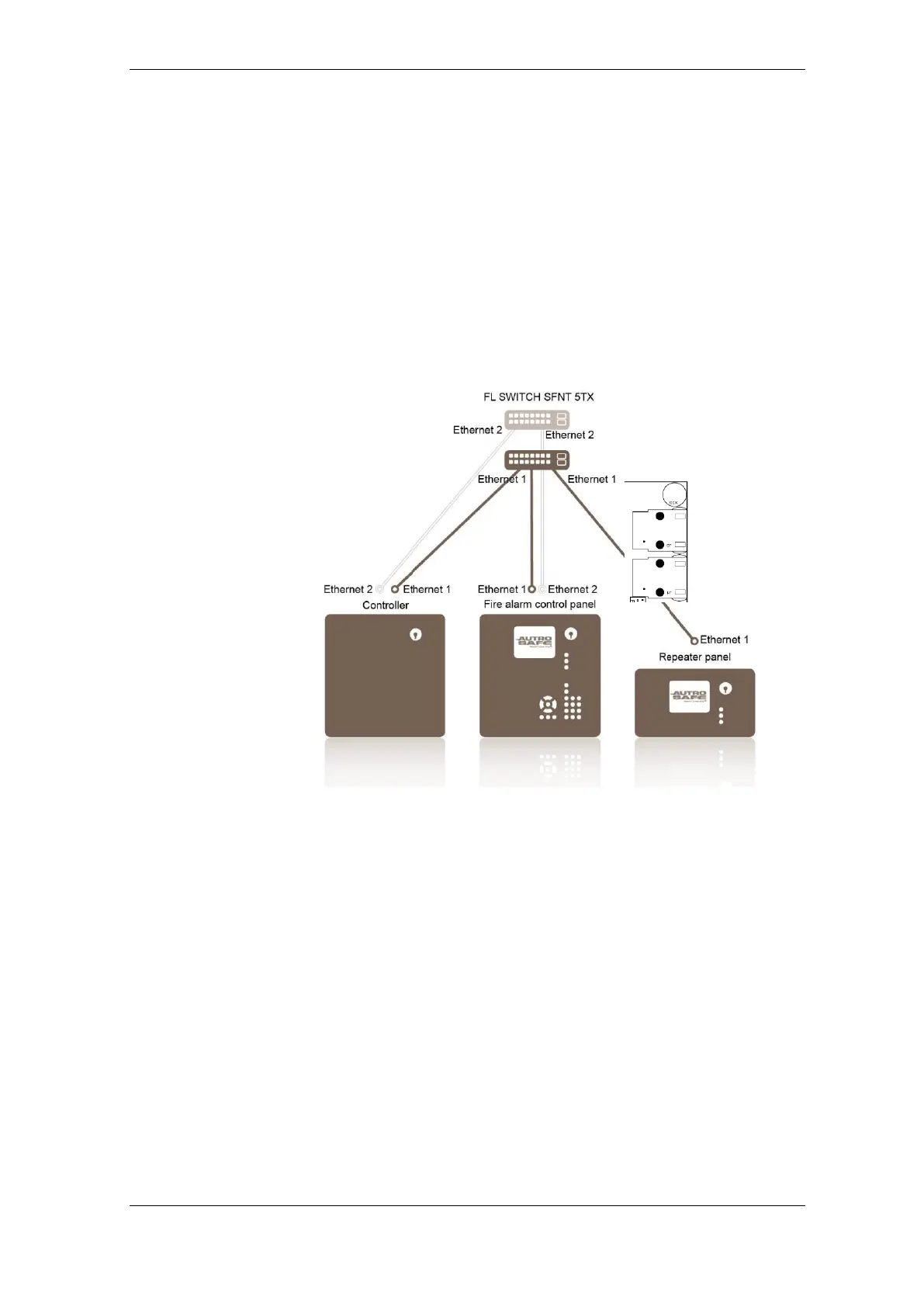

The example below is similar to the one in the previous chapter; all
panels have redundant connections to the system, except for the
Repeater Panel, which has a single Ethernet connection.
• Between the Repeater Panel and the Ethernet switch, make
only a single Ethernet connection to and from Ethernet 1.
• Connect the remaining Ethernet cables as described in the
previous chapter
For single Ethernet connections,
always use Ethernet port 1
