10.6.3 AutroNet Ring Topology

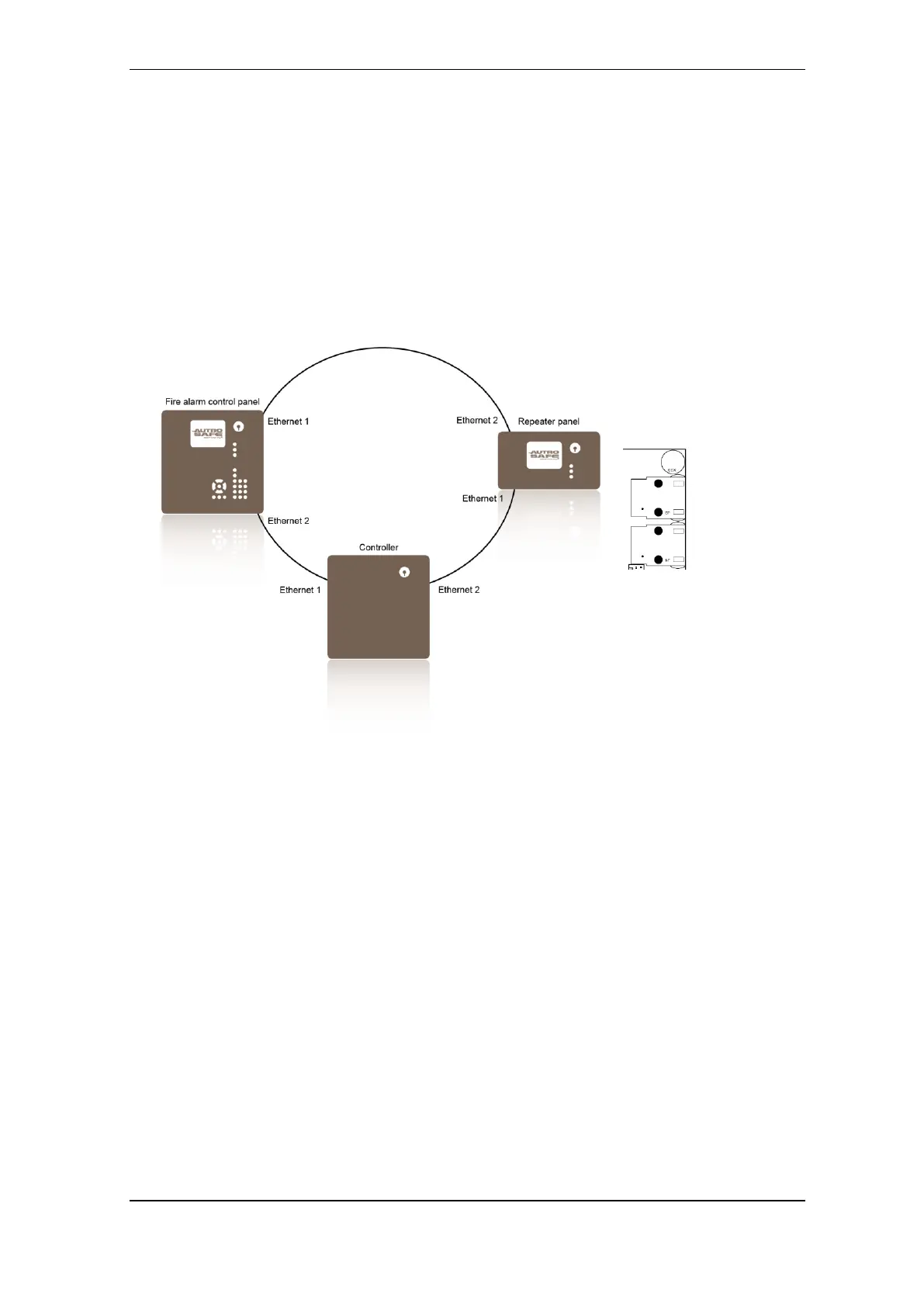

In an AutroNet Ring Topology all panels are connected to each other
forming a closed loop. The first panel is connected to the second, the
second is connected to the third, and so on (preferably from Ethernet 1
to Ethernet 2, from Ethernet 1 to Ethernet 2, from Ethernet 1 to Ethernet
2 and so on).
A ring topology is a redundant network, as all panels will continue to
operate even with a single break or short-circuit on the ring.
