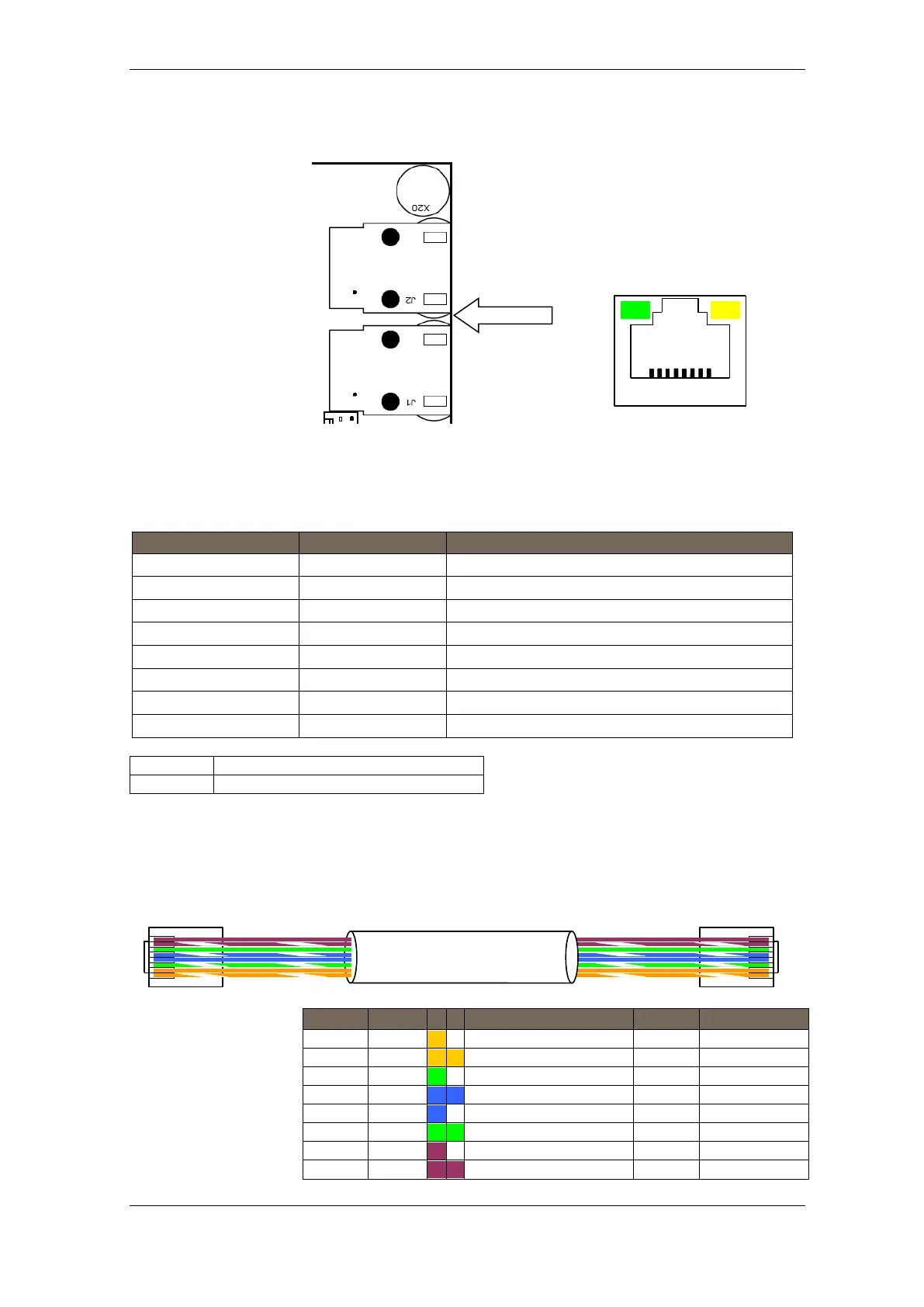

15.18 Ethernet Ports (RJ-45 Connectors)
The BSA-400 board provides two separate 10/100Mbit Ethernet ports.
Each connector has 2 built-in status LEDs; Link and Act/Speed. The
connector is an RJ-45 modular jack, suitable for shielded cable CAT5
which allows cable lengths up to 100m.
Connector
Connector
Description
J1.1
J2.1
TX+, Transmit Data+
J1.2
J2.2
TX-, Transmit Data-
J1.3
J2.3
RX+, Transmit Data+
J1.4
J2.4
N.C.
J1.5
J2.5
N.C.
J1.6
J2.6
RX-, Transmit Data-
J1.7
J2.7
N.C.
J1.8
J2.8
N.C.
LED 1
Activity LED
LED 2
If ON, 100MBit/s, if OFF, 10MBit/s
Connector Connector Description
15.18.1 Ethernet Straight Through Cable
Name
Pin
Cable Color
Pin
Name
TX+
1
White/Orange
1
TX+
TX-
2
Orange
2
TX-
RX+
3
White/Green
3
RX+
4
Blue
4
5
White/Blue
5
RX-
6
Green
6
RX-
7
White/Brown
7
8
Brown
8
ame Pin Cable Color Pin Name
18
1 2
1
8
1
8
J2
J1
BSA-400
