◼ Reassemble the front
panel and tighten the 4
wing nuts.
◼ Reconnect the earth
cable to the termination
point inside the cabinet
(PE=Protective Earth).
◼ Insert the text foils (in
the appropriate
language) into the their
respective positions.
For detailed
description of the
various text foils,
see chapter 6.8

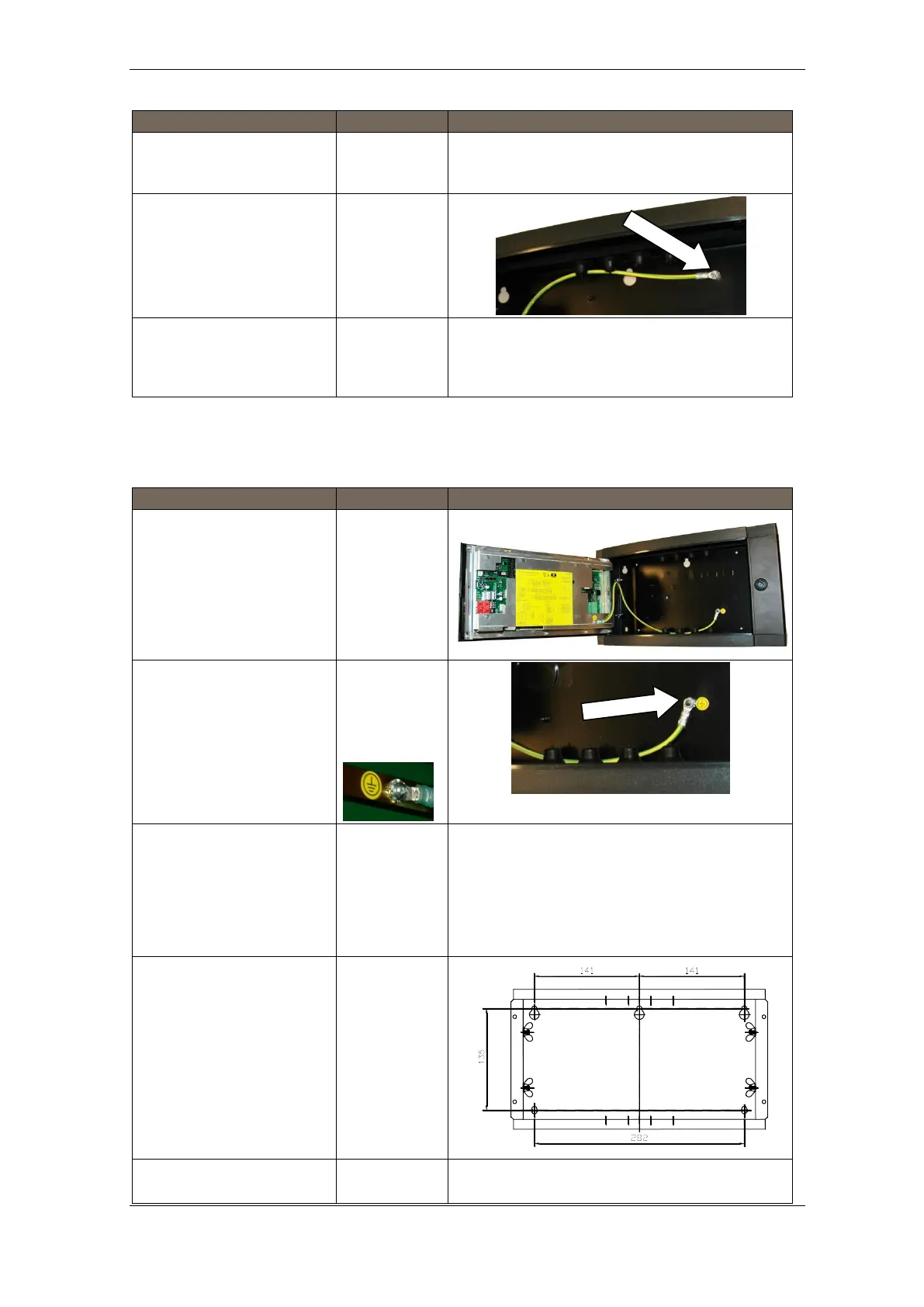

6.4 Mounting Repeater Panel BU-BV-420
Instructions
Remarks
Illustrations
◼ Unlock the front panel
by turning the unbraco
key clockwise.
◼ Open the front panel.
In order to easily
access the
mounting holes
when mounting
the cabinet, the
front panel should
be removed.
◼ Unscrew and disconnect
the earth cable from the
termination point inside
the cabinet.
Note: Do NOT
unscrew the earth
cable from the
connection point
on the front panel
(PE=Protective
Earth).
◼ Unscrew the 4 wing nuts
located on the right and
left hand side of the
cabinet, then close the
front panel, and remove
the front panel from the
cabinet.
◼ Mark and drill all 3
holes.
The cabinet has 5
mounting holes
located at the
rear. The upper 3
holes are of key-
hole-type.
◼ Partly fasten the upper
screws.
