Dual Safety Installation
asafeinstall_dgb, AutroSafe Interactive Fire Detection System, Release 4,
116-P-ASAFE-INSTALL/DGB, Doc-1004796-2, 2021-08-23, Autronica Fire and Security AS
Page 55

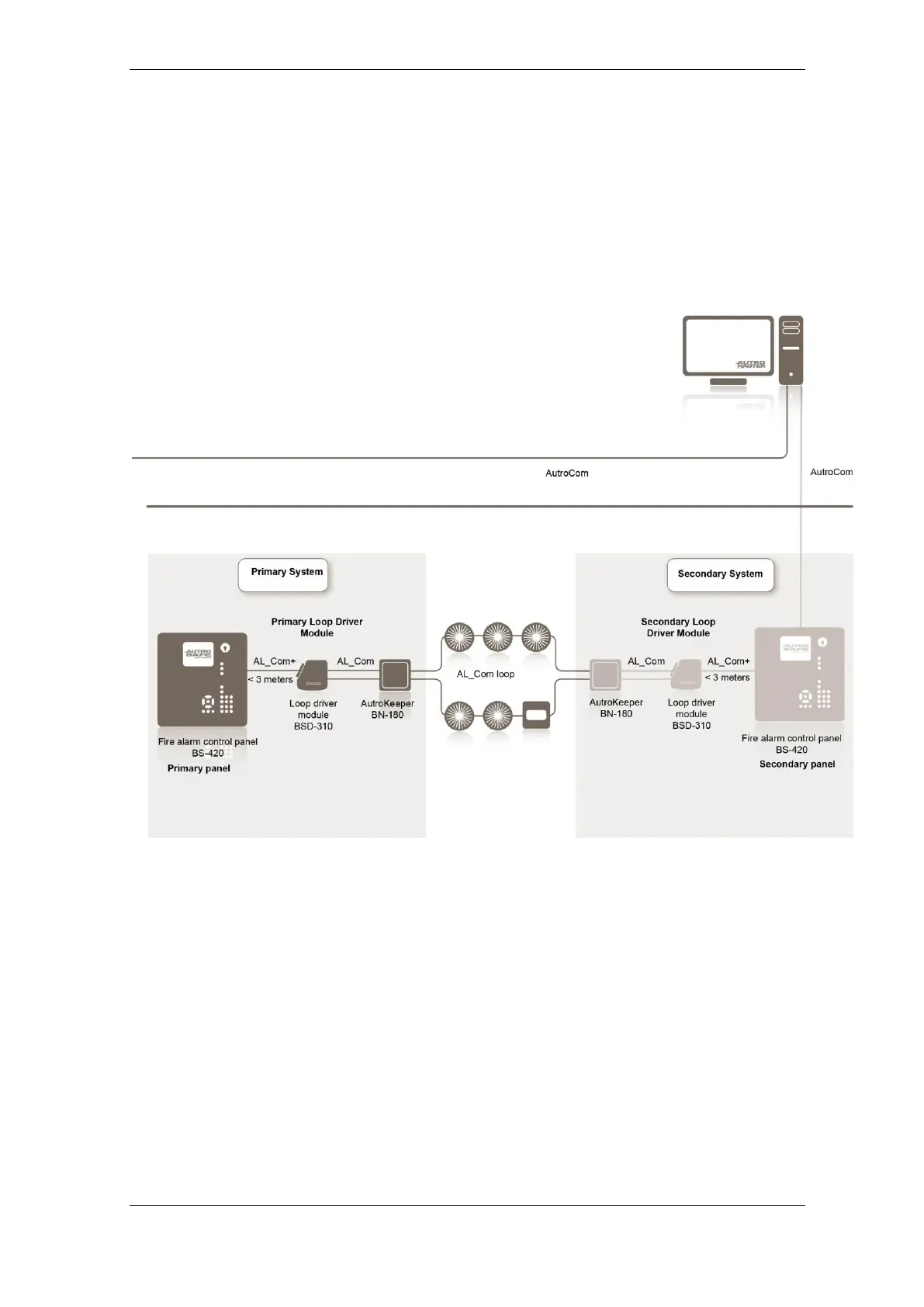

12.2.1 Example 1: Connections Using AL_Com+ only
The distance from the Primary Panel to the Loop Driver Module is less
than 3 meters. An AL_Com+ flat ribbon cable is used between the panel
AL_Com port and the I/O stack (including the Loop Driver Module).
The distance from the Secondary Panel to the Secondary Loop Driver
Module is less than 3 meters. An AL_Com+ flat ribbon cable is used
between the panel AL_Com port and the I/O stack (including the
Secondary Loop Driver Module).
