Installing I/O Modules
asafeinstall_dgb, AutroSafe Interactive Fire Detection System, Release 4,
116-P-ASAFE-INSTALL/DGB, Doc-1004796-2, 2021-08-23, Autronica Fire and Security AS
Page 53

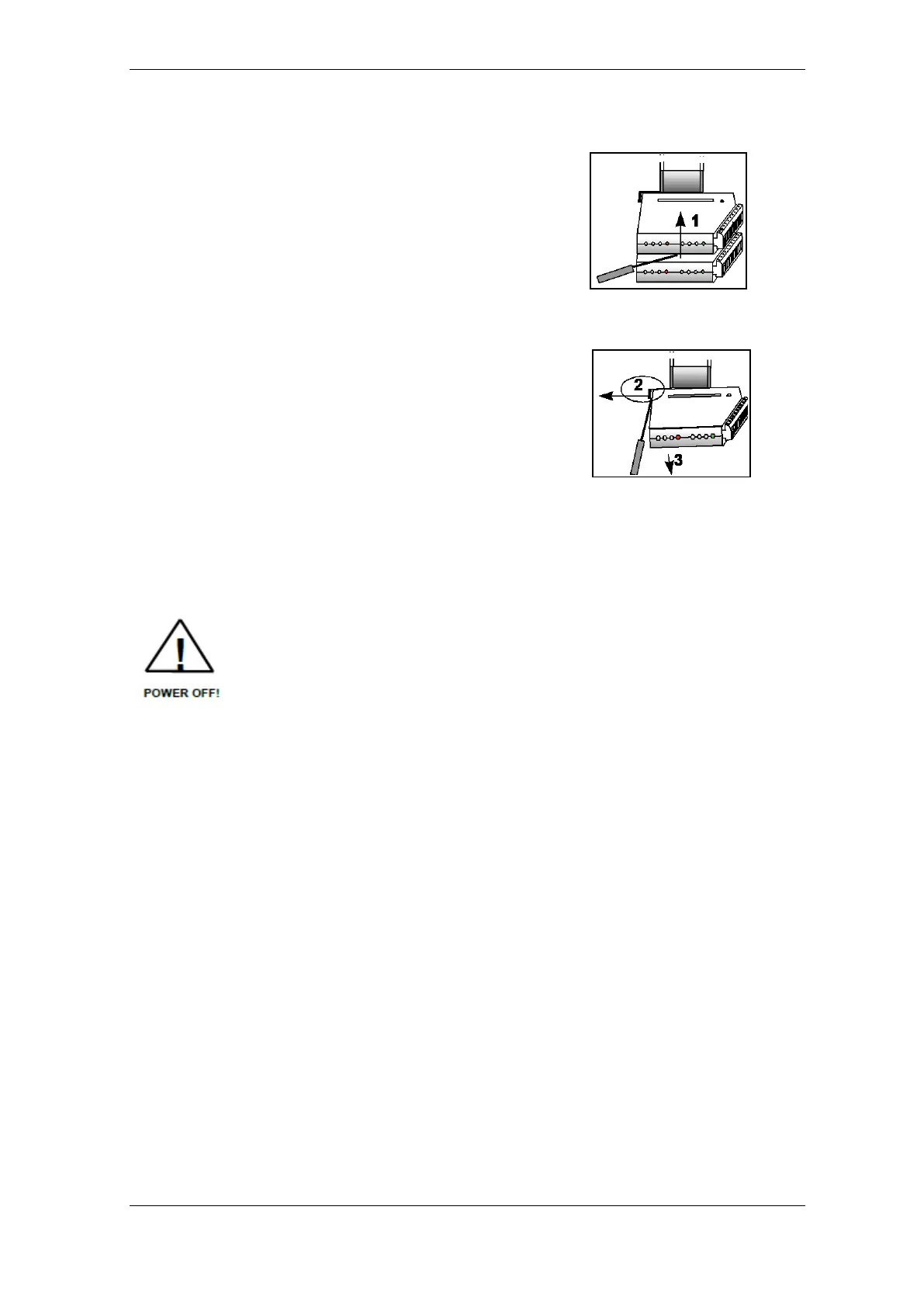

11.3.3 Removing
◼ Ensure the panel is not powered.
◼ Unplug the connection block.
◼ Use a screwdriver to carefully
lift the topmost module upwards
(1) until the connector between the
modules is free.
◼ Use the screwdriver to slightly
bend the left side of the
fastener towards left (2) until
it loosens, then remove (3) the
module.
◼ If necessary, continue removing
the next one in the same way.
11.3.4 Before Connecting Cables
• Before connecting cables, make sure that the mains power is
not connected.
11.4 Data Sheets - I/O Modules
The AutroSafe User Documentation provides data sheets for I/O
modules, including a short description of the I/O module, its application,
plus technical specifications and cabling.
