Mounting Instructions
asafeinstall_dgb, AutroSafe Interactive Fire Detection System, Release 4,
116-P-ASAFE-INSTALL/DGB, Doc-1004796-2, 2021-08-23, Autronica Fire and Security AS
Page 31
6.10.2 Operator Panel BS-430

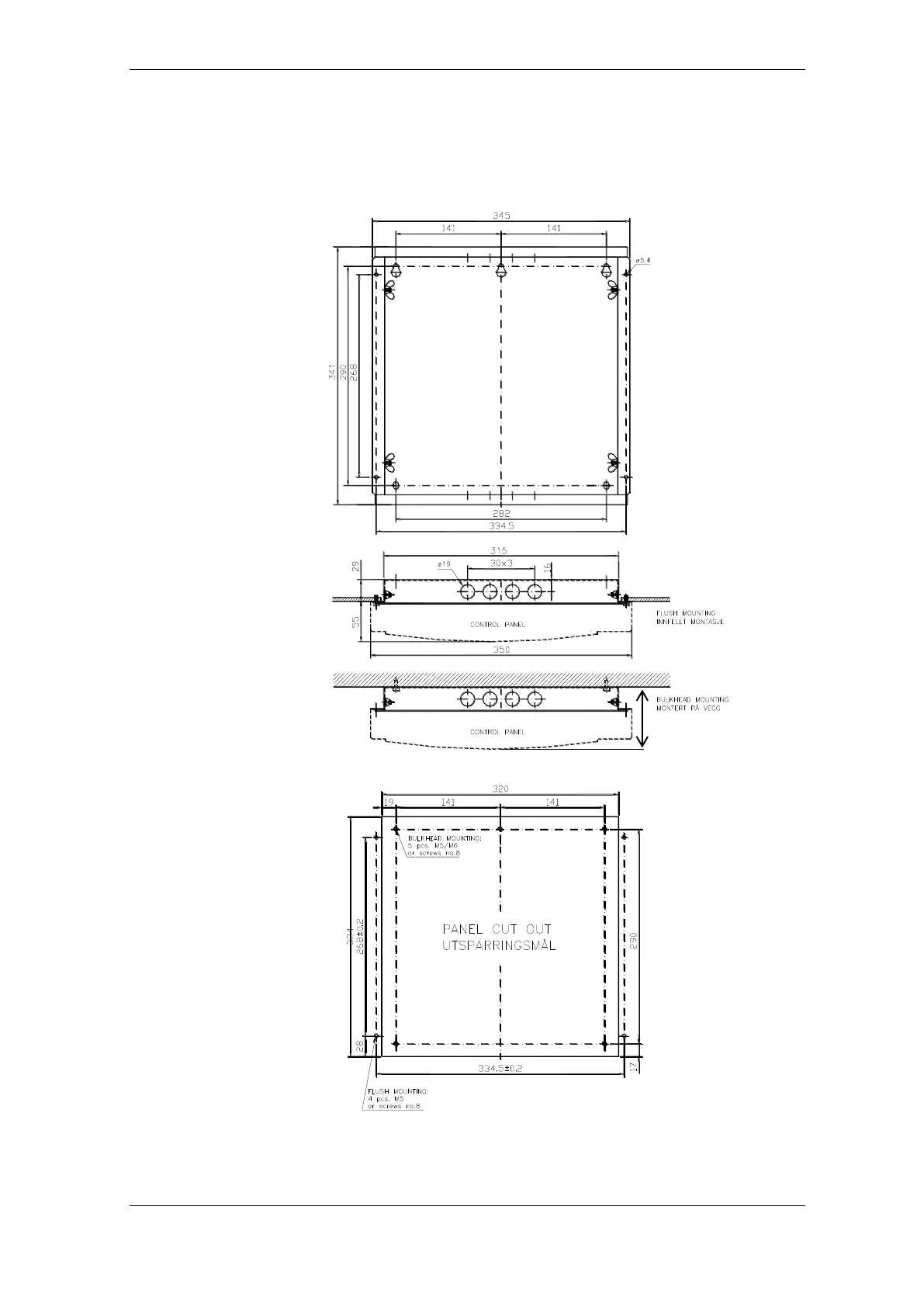

The illustration below shows the cabinet’s cut out dimensions. The
dimensions given include space for the cover frame.
