A local call between an IP and an analog telephone
A local call is placed at 00:57 between IP telephone extension 2004 and analog telephone

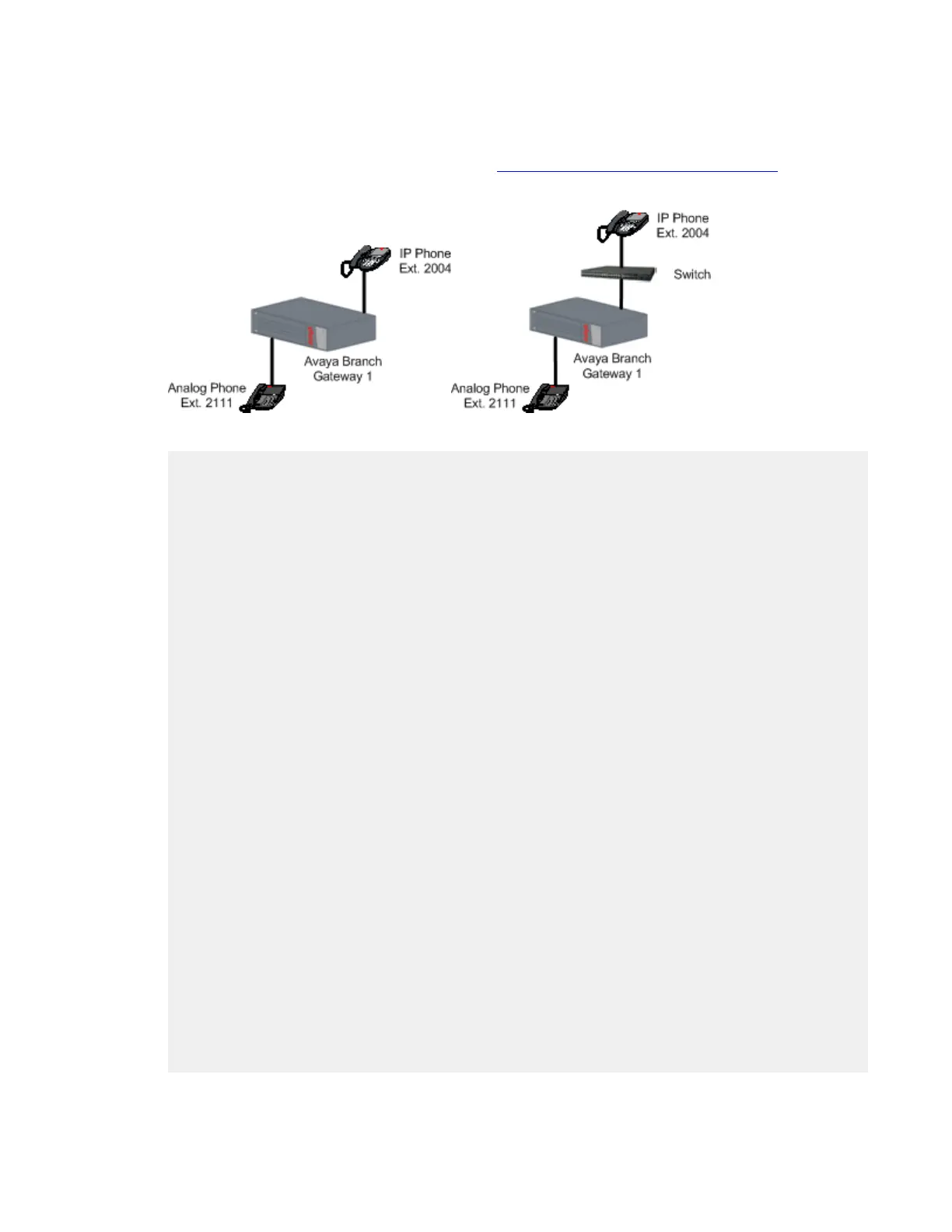

extension 2111 in the network described in Four telephones in a sample network on
page 373. The call is finished at 00:59:19.
After the call is ended, the administrator uses the CLI to view the QoS statistics:
//to see if there were QoS problems registered during the session
Gxxx-001 (super)# show rtp sessions last 1
ID QoS
1
Start date and time End Time Type Destination
----- --- ------------------- -------- --------- ------------
00001 2004-12-07,00:57:13 00:59:19 G711U 30.30.30.2
//To display details of the session:
Gxxx-001 (super)# show rtp-stat detailed 1
Session-ID: 1
Status: Terminated, QOS: Ok
2
, EngineId: 0
Start-Time: 2004-12-07,00:57:13, End-Time: 2004-12-07,00:59:19
Duration: 00:02:06
CName: gwp@30.30.30.1
Phone: 200:2111
Local-Address: 30.30.30.1:2165 SSRC 2533871380
Remote-Address: 30.30.30.2:2165 SSRC 93269 (0) ip phone or another medi proc
Samples: 25 (5 sec)
Codec:
G711U 200B 20mS Off, Silence-suppression(Tx/Rx) Disabled/Disabled, Play-Time 130
.080sec, Loss 0.0% #0
3
, Avg-Loss 0.0%
4
, RTT 83mS #0
5
, Avg-RTT 108mS
6
,
JBuf-under/overruns 0.0%/0.0%, Jbuf-Delay 5mS, Max-Jbuf-Delay 27mS
Received-RTP:
Packets 6503, Loss 0.0% #0
7
, Avg-Loss 0.0%
8
, RTT 0mS #0
9
, Avg-RTT 0mS
10
, Jitter 0mS
#0
11
, Avg-Jitter 0mS
12
, TTL(last/min/max) 64/64/64, Duplicates 0, Seq-Fall 0, DSCP
46, L2Pri 12, RTCP 26
Transmitted-RTP:
VLAN 1, DSCP 46, L2Pri 6, RTCP 31
Remote-Statistics:
Loss 0.0% #0
13
