Avid S6 Installation Guide24
9 Secure the Back and Front Tie plates of the second chassis to the first chassis using Hex fasteners as shown in Figure 21.
10 Fully tighten all screws holding the Side Walls to the Chassis Bottom Plate (Phillips), Back and Front Tie Plates (Hex).
11 If your system includes legs, fully tighten the fasteners securing each chassis to the Beams and End Brackets.
12 If you are assembling an 8-fader system (two chassis), proceed to “Attaching the Back Feet” on page 25.
13 All other configurations, repeat the previous steps to assemble all chassis, then continue to the next section.
Figure 22 shows an example illustration of four assembled chassis (a 24-fader system).
Important

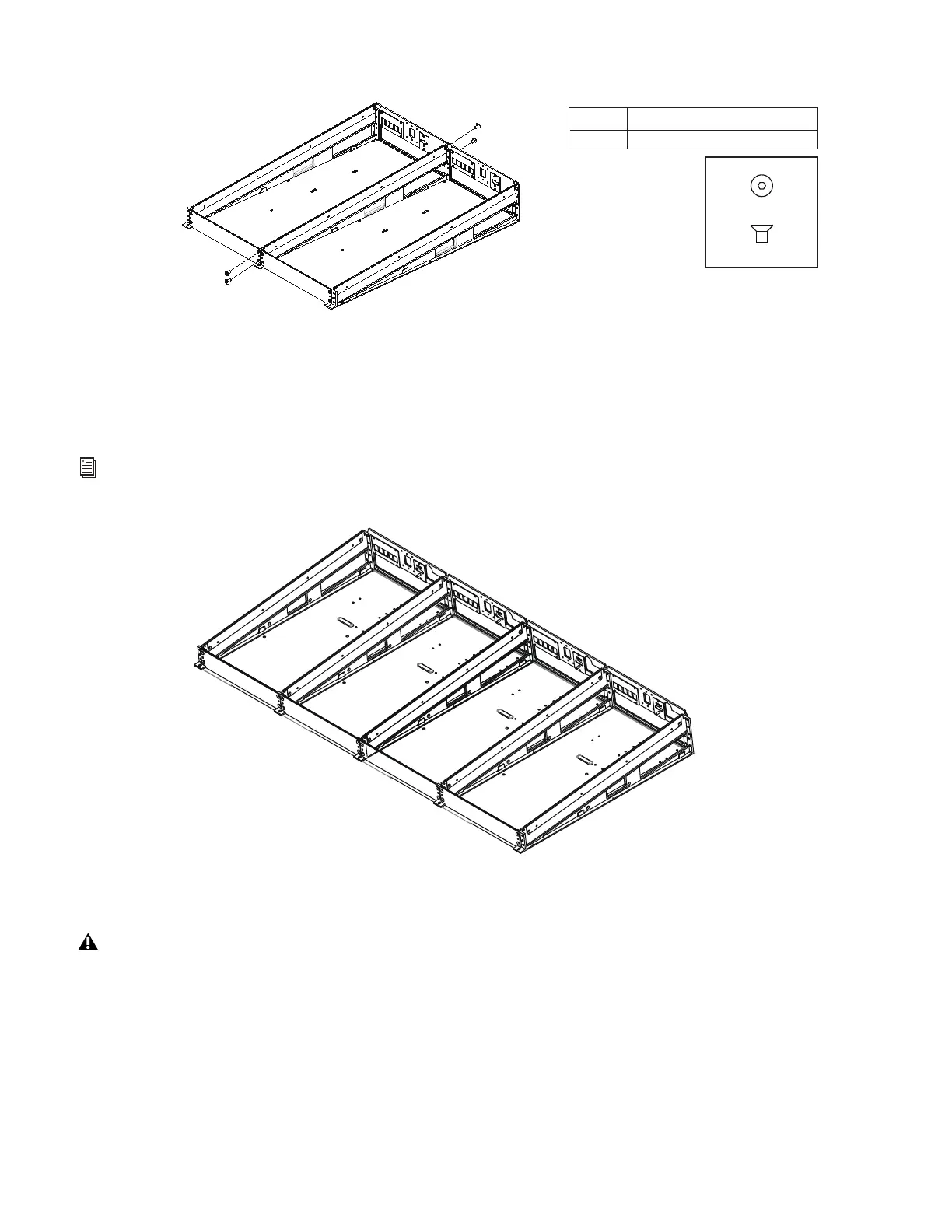

Figure 21. Securing the Back and Front Tie Plates of the first chassis to the Side Wall of the second chassis (cables not shown)
If your system includes a Producer’s Desk option, see the Producer’s Desk Guide for assembly and installation instructions.
Figure 22. Four Frame Chassis Large (cables not shown)
Do not lift or move an S6 system that is five or more chassis in width (32-faders or more). If you need to move a five-or-wider S6
system that does not include Legs, you must partially disassemble the frame so that no section is more than four chassis in width.
For more information, see Appendix A, “Reference.”
(Not to scale)
M5x8 FHCS (7760-30553-00)
Fastener
M3 Hex
Tool
To Next Page
