IFD500 Series Pilot Guide
4-8 Map Subsystem

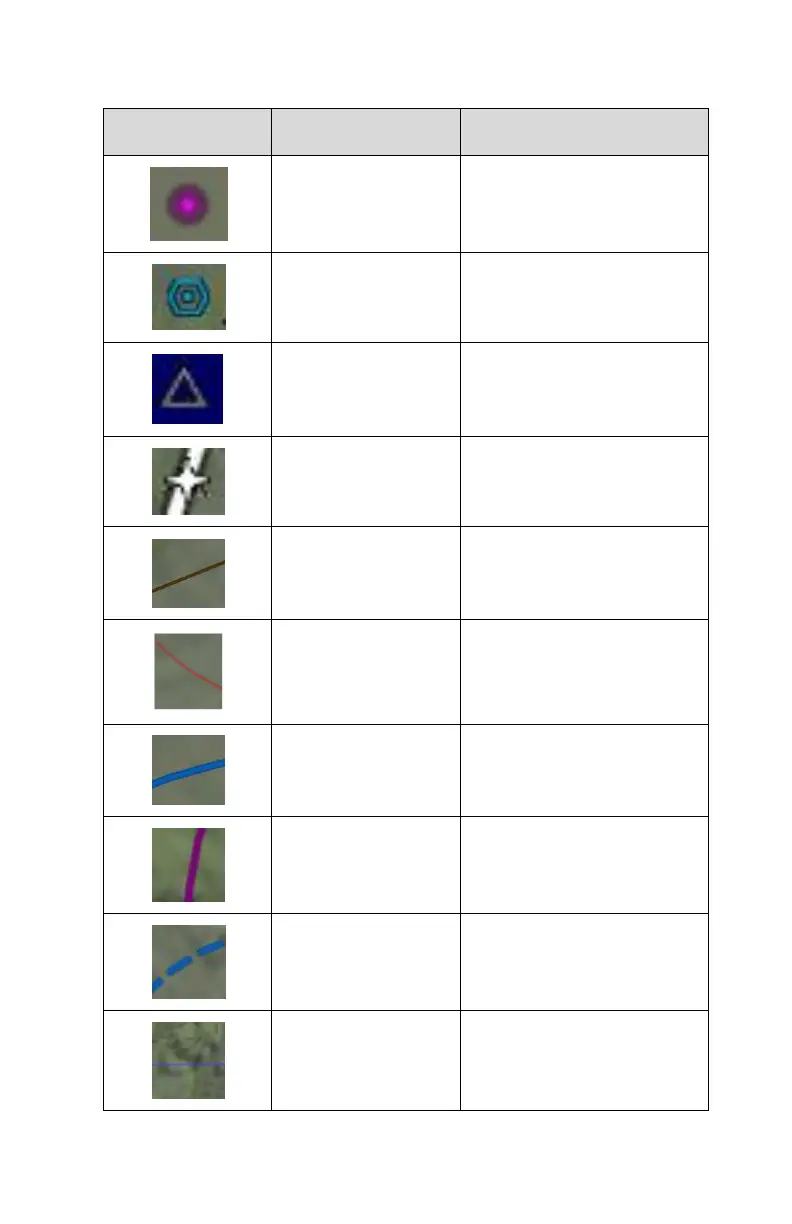

Map Symbol
Item
Description
NDB
All NDBs in nav
database (magenta
diamond)
VOR
All VORs in nav
database (blue)
Intersection
All intersections in nav
database (gray)
Flight plan, course
waypoints
Each waypoint in flight
plan (white)
Interstate highway
All interstate highways in
the database (solid
brown)
Class A
Each boundary of Class
A airspace (solid red
line)
Class B
Each boundary of Class
B airspace (solid blue)
Class C
Each boundary of Class
C airspace (solid
magenta)
Class D
Each boundary of Class
D airspace (dashed blue)
Victor or Jet
Airways
All Victor and/or Jet
airways (solid blue-gray)
