Avidyne IFD540 - General Ifd Operations; IFD540 & IFD550 Bezel Layout; IFD510 & IFD545 Bezel Layout

IFD500 Series Pilot Guide
System Overview 1-13
GENERAL IFD OPERATIONS

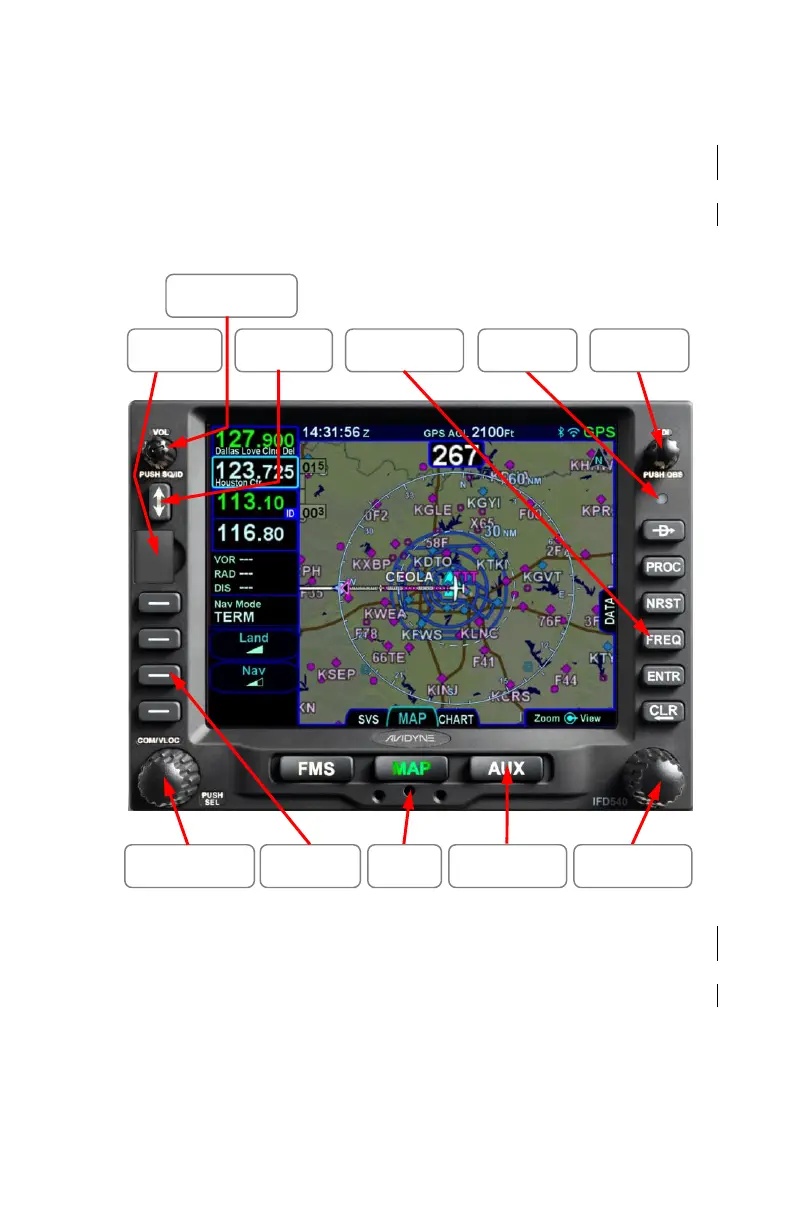

IFD540 & IFD550 BEZEL LAYOUT
The IFD540 and IFD550 have the same bezel layout except that
the IFD550 has one extra page key labeled "SVS" to the left of
the FMS key.
IFD510 & IFD545 BEZEL LAYOUT
The IFD510 and IFD545 have the same bezel layout except that
the IFD545 has one extra page key labeled "SVS" to the left of
the FMS key.
Com/Nav Manual
Tuning Knob
Page Function
Keys
Cam
Latch
Line Select
Keys
Dedicated
Function Keys
Context
Sensitive Knob
Volume / Power /
Squelch Knob
CDI Nav
Source Knob
Ambient
Light Sensor
Frequency
Swap
USB Port
