IFD500 Series Pilot Guide
Map Subsystem 4-23
No Datalink Coverage Area Hatched Lines
Like ADS-B radar, ADS-B lightning has a defined coverage area.
However, whereas the ADS-B radar coverage is shown by
highlighted those areas that are not covered, the coverage area for
ADS-B lightning is shown by highlighting the area that is covered.

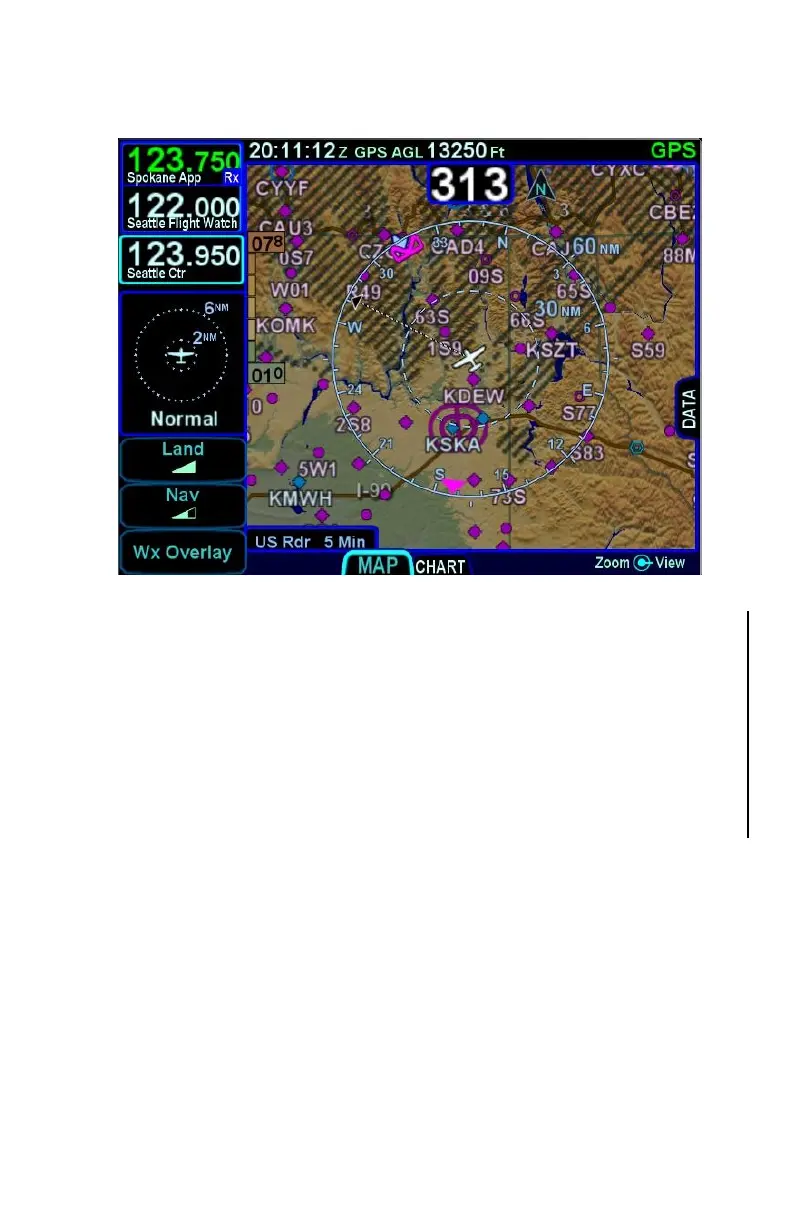

The coverage area for which lightning data has been received is
depicted using a “shadow”, as illustrated below. The shadow
consists of a transparent, gray region on all Land declutter settings.
This allows for quick distinction between two coverage areas when
simultaneously displaying radar and lightning overlays.
