IFD500 Series Pilot Guide
4-74 Map Subsystem

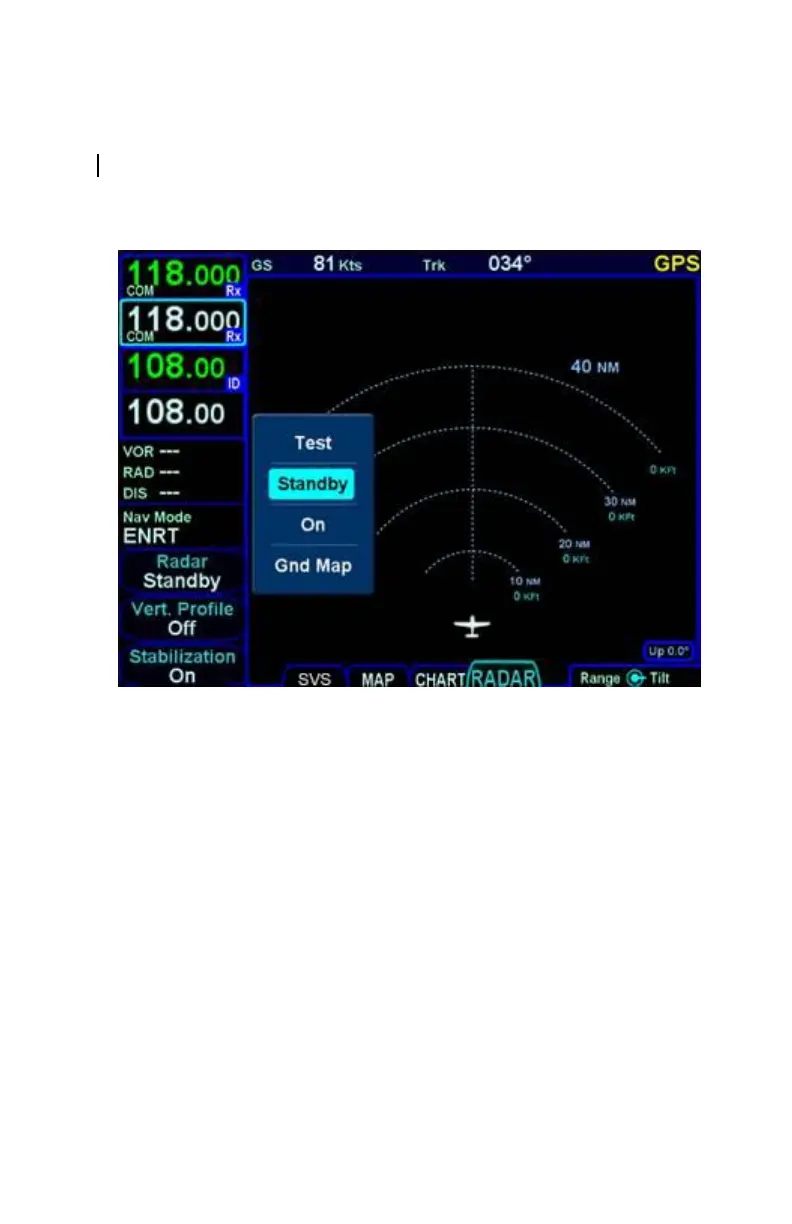

The radar mode is controlled by a line select key along the left side
labeled “Radar”. Pressing the LSK or touching the label will generate
a drop down list of the available modes. Turn the bottom right knob to
scroll through the list or touch the desired mode in the list to select it.
Radar Mode Control
The possible modes are:
Test – when selected, initiates a radar self-test function that
is monitored by the IFD. The test function is confirmed by
the presence of the test annunciation and test pattern
display. During self-test, all of the circuitry and functions of
the R/T are exercised with the exception of the magnetron
tube. No microwave energy is emitted in the test function.
The display will have a test pattern with the following colors:
green, yellow, red, and magenta.
Standby – the system will always power up in this mode.
Standby places the radar circuitry in an energized but
inactive state. In Standby, the moving scan indicator and
radar echo returns are not present and the antenna is placed
in the desired park position.
