IFD500 Series Pilot Guide
4-78 Map Subsystem
Vertical Profile mode allows you to view approaching weather as a
slice of the vertical plane instead of the conventional horizontal
forward view.
Switching between horizontal forward view and vertical profile view is
accomplished by toggling the “Vert Profile” LSK on/off.
Vertical profile display contains the same functions and modes as
shown on the horizontal forward view. Dual IFDs stay synched in
radar view – if one is changed to vertical, the other will follow.

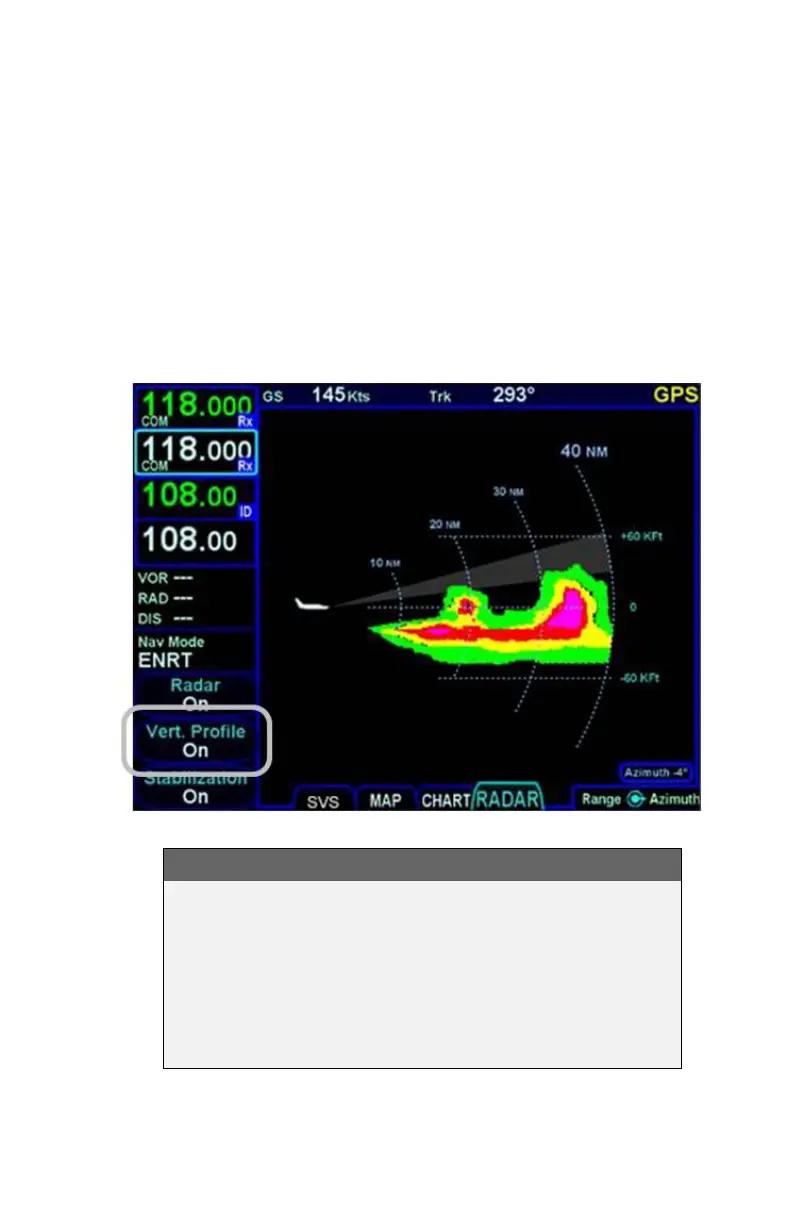

Vertical Profile Radar View
NOTE
Dual IFD Range Changes
If radar is an overlay currently displayed on one IFD
map and the RADAR tab is displayed on the second
IFD, if the map range on the overlay page is changed,
the radar page range will change on the second IFD.
Conversely, if the radar range is changed on the second
IFD, the map range will NOT change on the first IFD.
