4-/5-Gas Measuring Instruments Unit AVL 4000
5-8 Service Manual
5.3.4 Pump
Disconnect the hoses from the gas IN and condensate IN side.
Disconnect the mains plug and take it right out of the socket.
Remove the screwable, right-angle connector from the instrument’s rear panel
(1 slotted screw).
Unscrew the 4 Phillips screws on the pump unit from the rear panel. The four rubber
vibration pads remain attached.
Replace the pump unit.
Reassemble in reverse order.

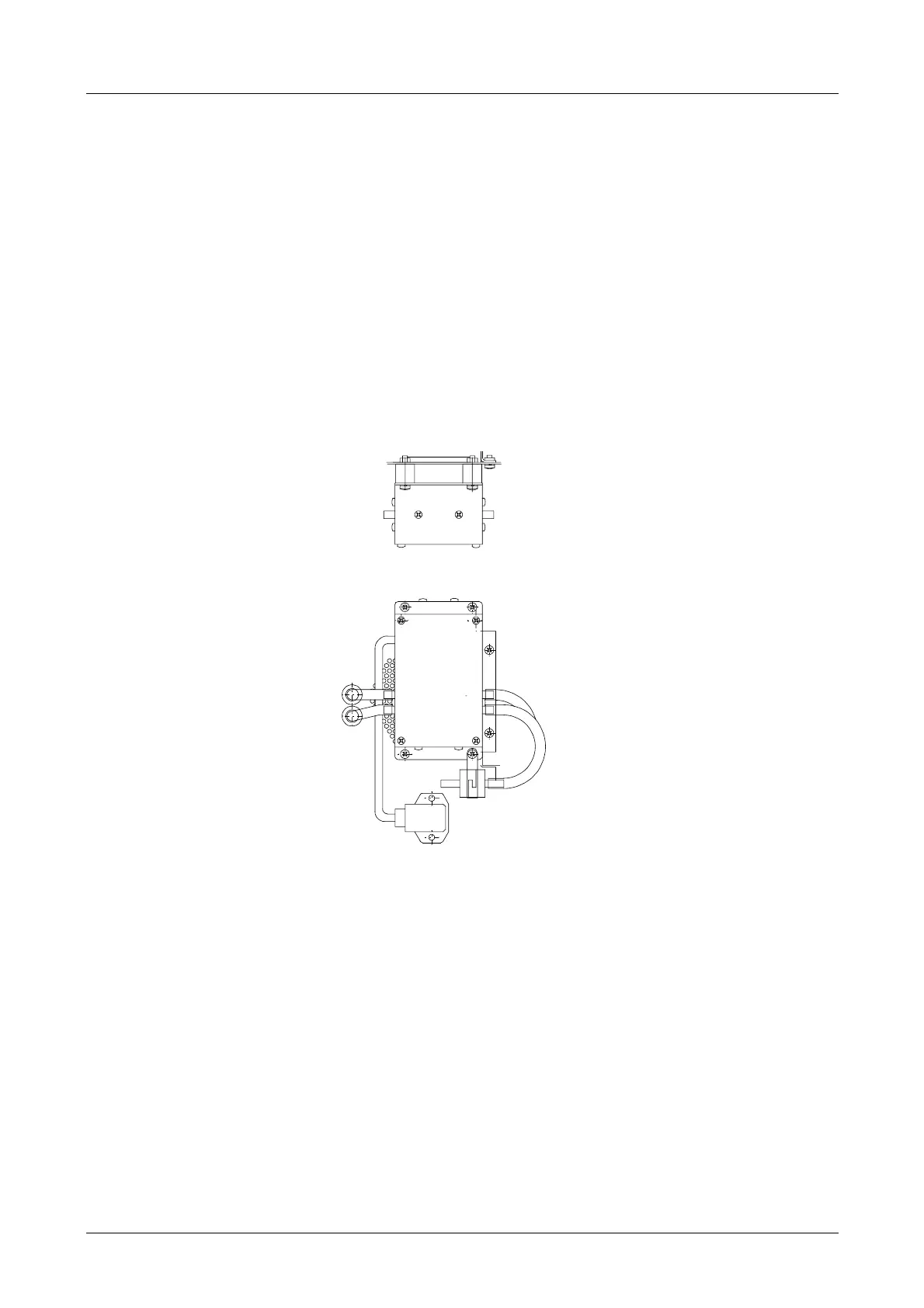

Fig. 5-6
Rear view
View from above
