4000 Opacity Measuring Chamber 4000
Service Manual 7-7

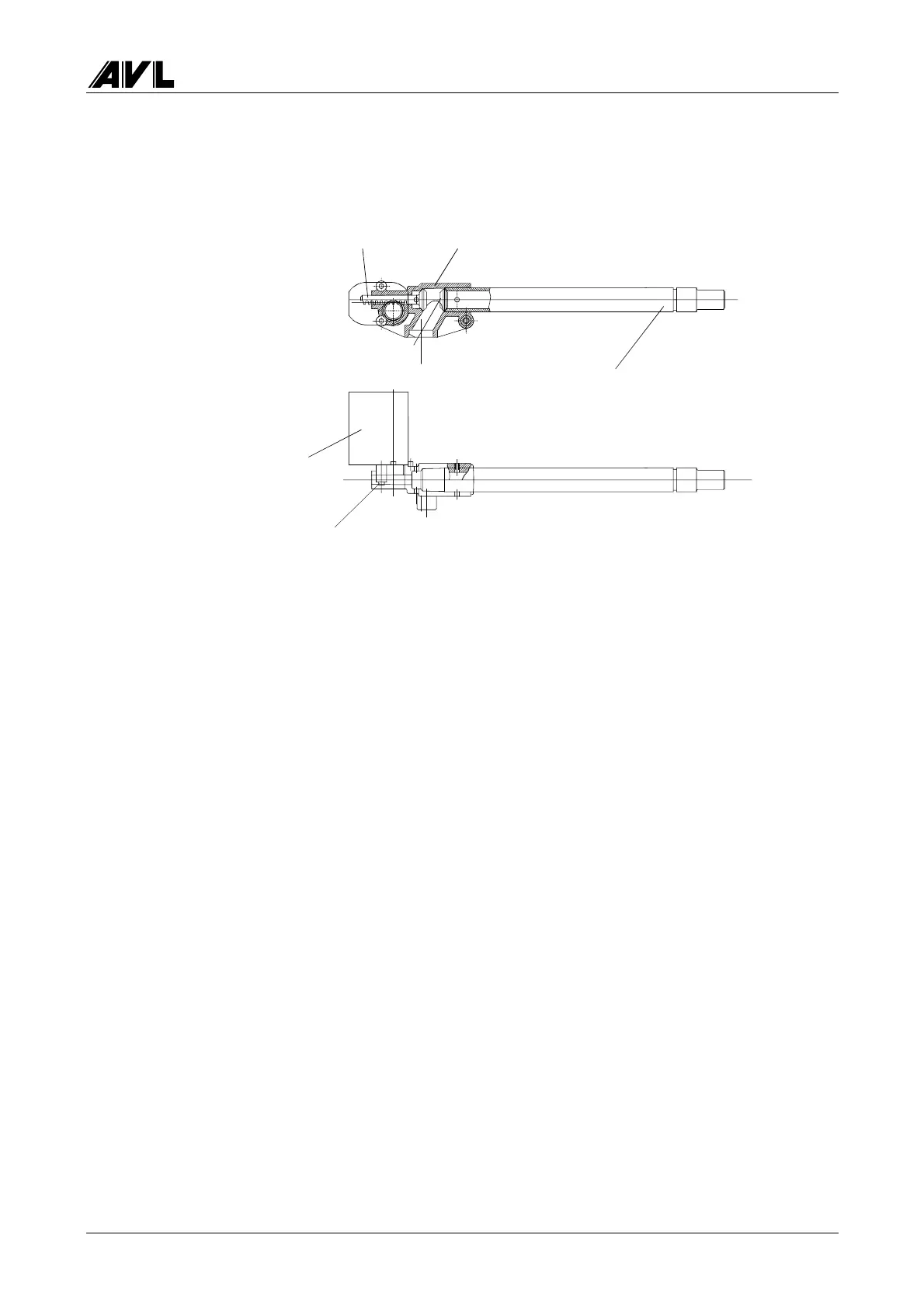

7.4.3 Valve Unit (BO2139)
Fig. 7-8
The motor, ident. no. BV2084, can be dismantled by undoing the two screws.
Temperature sensor PT 100: ident. no. EZ0180 for measuring the gas temperature
7.4.3.1 Replacing the Temperature Sensor
Pull the PT 100 out and pinch off the litz wire.
Solder on a new sensor.
Insulate soldering points and insert the sensor in the bore again.
Valve plunger
RM0154
Valve block
YM3190
Inflow tube
YM3185
Drive motor
including cable
BV2084
Oval head screw
DS1270
