Opacity Measuring Chamber Type A AVL 4000
6-8 Service Manual
11 x
Fig. 6-9
Housing cover 2 RM0115
Label ZB1384
Silicon seal RM0121
Detail: Rubber pads
You do not need to remove the rubber pads to dismantle the measuring
chamber.
Detail: Probe connection plate
You do not need to remove the probe connection plate to dismantle the
measuring chamber.

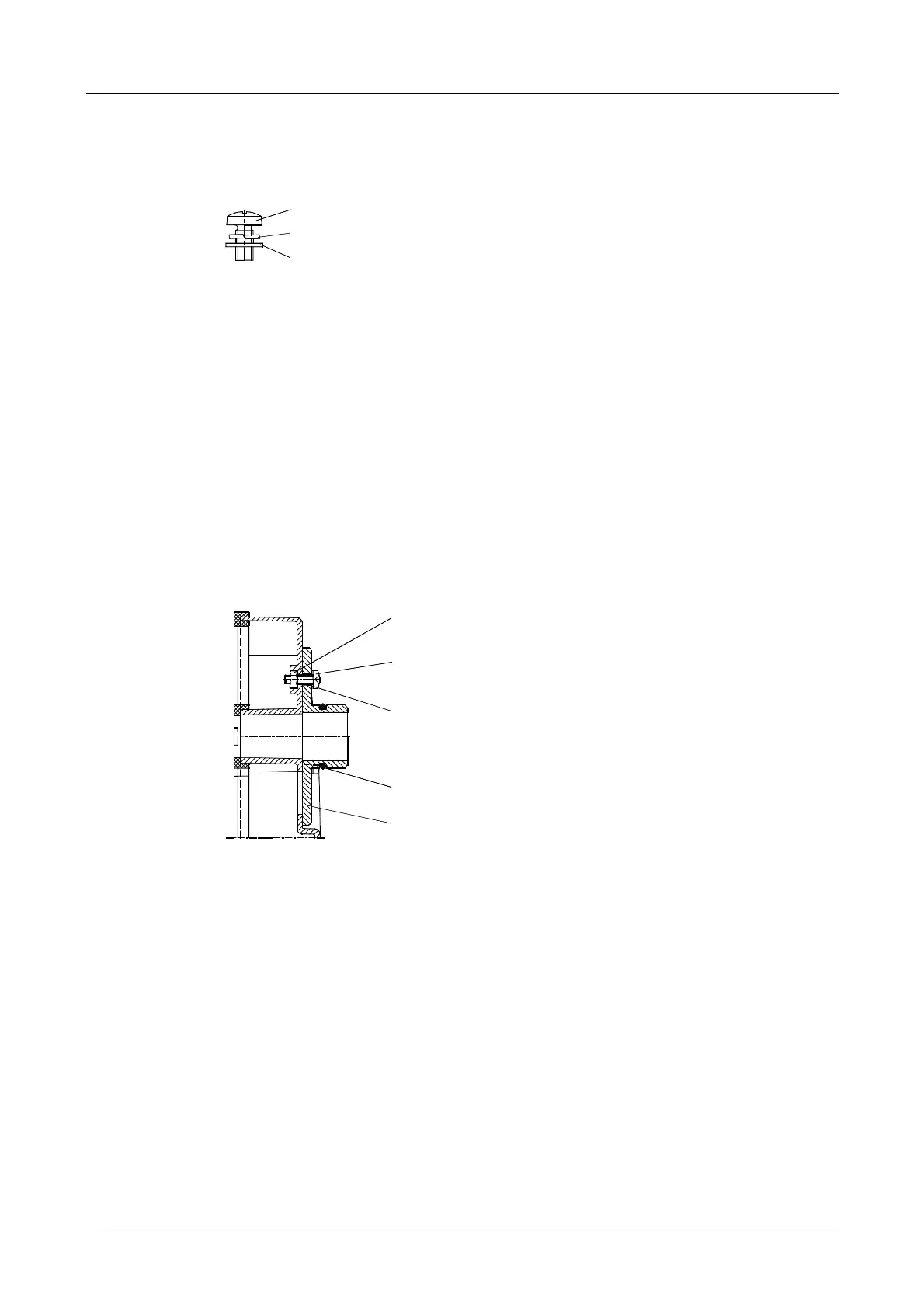

Cross-section A-A (Fig. 6-8)
Fig. 6-10
DS1172 Oval-head screw M5x10
DZ0567
DZ0253
Hexagonal nut DM0089 (3 pcs.)
Oval-head screw M5x16 DS0947 (3 pcs.)
Washers DZ0253 (3 pcs.)
Spring washer DZ0567 (3 pcs.)
O-ring DA0288
Probe connection plate YM2761
