5-69

Chapter 5. DETAILED DESCRIPTION OF EACH FUNCTION

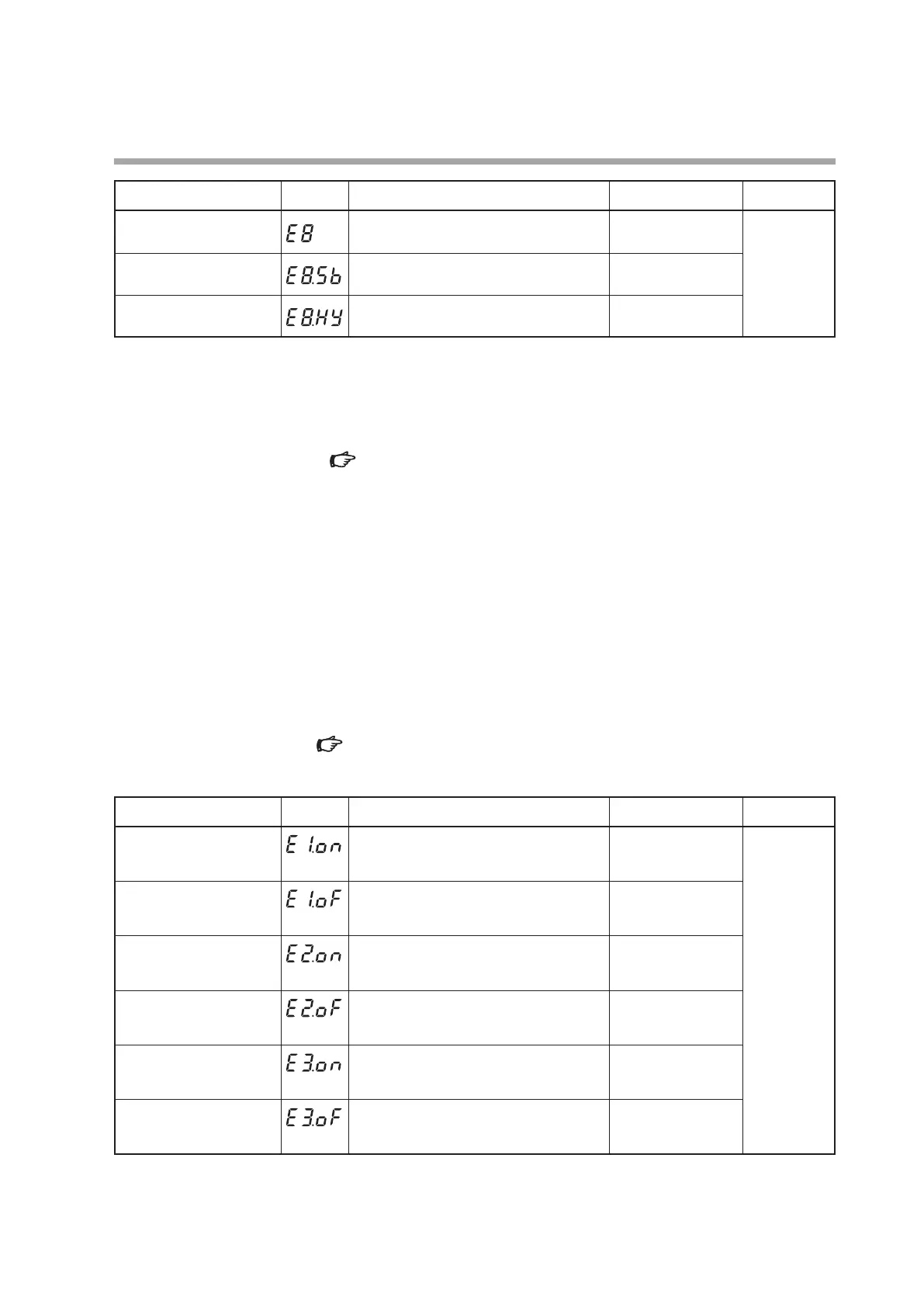

Item (Bank) Display Contents Initial value User level

Internal Event 8 Main setting

(Event bank)

Same as Internal Event 1 Main setting. 0 Basic,

Standard,

High function

Internal Event 8 Sub-setting

(Event bank)

Same as Internal Event 1 Sub setting. 0

Internal Event 8 Hysteresis

(Event bank)

Same as Internal Event 1 Hysteresis. 5

• When the internal event configuration 1 operation type is set at [0: No event], the

internal event main setting, sub-setting, and hysteresis are not displayed.

• For details about internal event operation with main setting, sub-setting, and

hysteresis,

[List of internal event operations] (p.5-59).



ON delay and OFF delay

ON delay is a function that delays the timing, at which the internal event status is

changed from OFF to ON.

OFF delay is a function that delays the timing, at which the internal event status is

changed from ON to OFF.

However, when the operation type is set at [20: Loop diagnosis 1], [21: Loop

diagnosis 2], [22: Loop diagnosis 3], or [32: Timer], the ON delay and OFF delay

are operated as another function.

For details,

[List of internal event operations] (p.5-59).

ON delay and OFF delay can be set.

Item (Bank) Display Contents Initial value User level

Internal Event 1 ON delay

time

(Event bank)

0.0 to 999.9s (Delay time unit is “0.1s”.)

0 to 9999s (Delay time unit is “1s”.)

0 to 9999min (Delay time unit is “1min”.)

0.0s

or 0s

or 0min

High function

Internal Event 1 OFF delay

time

(Event bank)
