5-80
Chapter 5. DETAILED DESCRIPTION OF EACH FUNCTION
This section describes examples of applications using the assignment functions of this unit.
Examples of applications using assignment functions

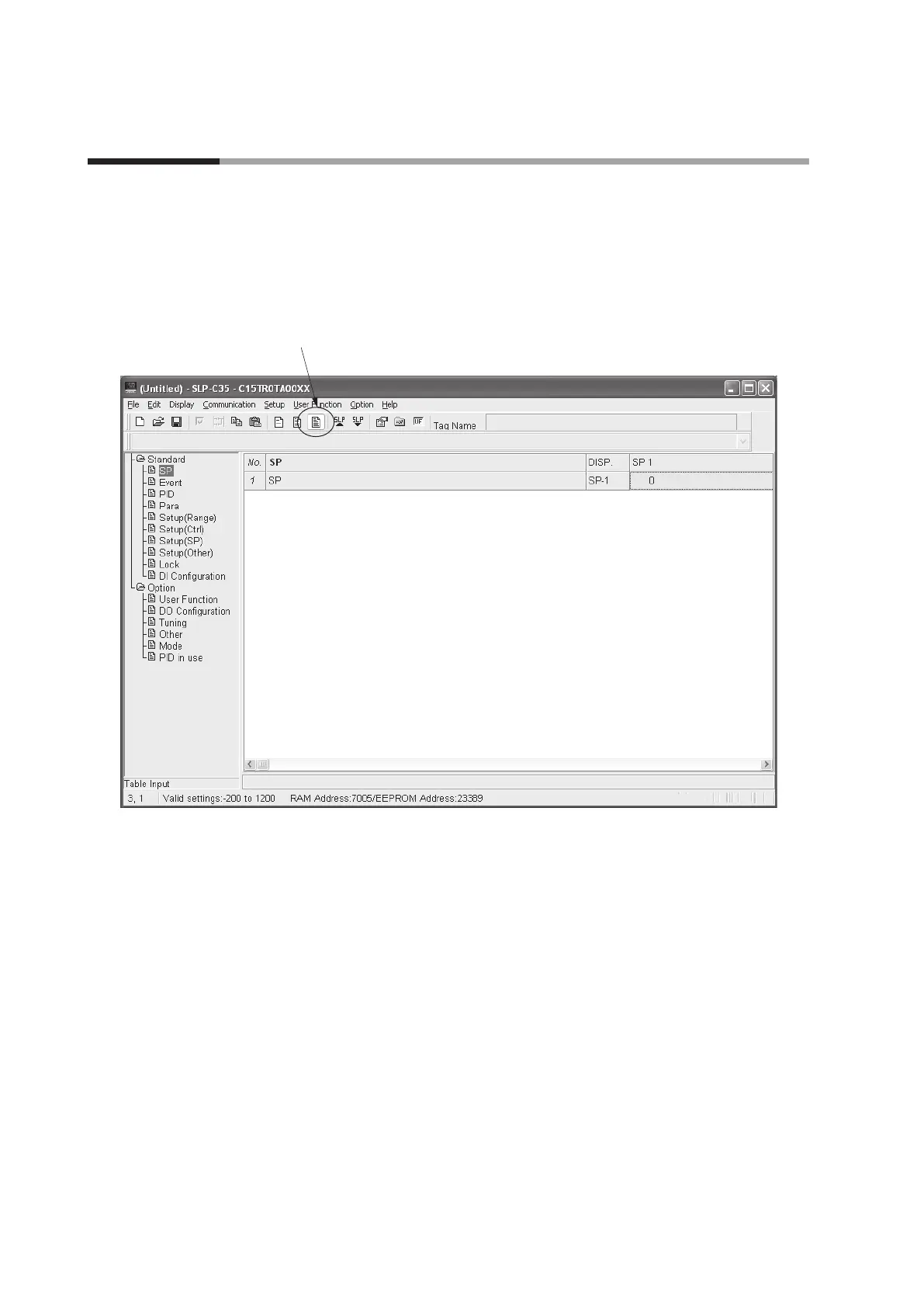

The following shows setting examples with the SLP-C35 Smart Loader Package.
To use assignment functions, it is absolutely necessary to set the user level to “High
function configuration”.
Example 1 Logical OR of the heater burnout and PV high limit alarm is output.
Conditions: PV high limit is set to Internal Event 1.
Heater burnout is set to Internal Event 2.
Logical OR of the above events is output to the EV1 relay.
(1) Select [Standard] → [Event] and set [Internal Event 1] to [1: PV high limit].
(2) Similarly, set [Internal Event 2] to [16: Heater 1 break/Heater over current].
(3) Select [Option] → [DO Assignment] and right-click on the operation type of
[Event output 1] to select [Input/Output port setup].
5 - 10 Application Examples
To Next Page
