5-79
Chapter 5. DETAILED DESCRIPTION OF EACH FUNCTION
DO Assignment setting with SLP-C35 Smart Loader Package
When setting [DO Assignment] with the SLP-C35 Smart Loader Package, select
[Edit (E)] → [Input/Output port setup (O)] in that order from the menu. The
output bit function, output assignment, polarity of output assignment, and polarity
of output bit function can be easily set using visual images as shown below.

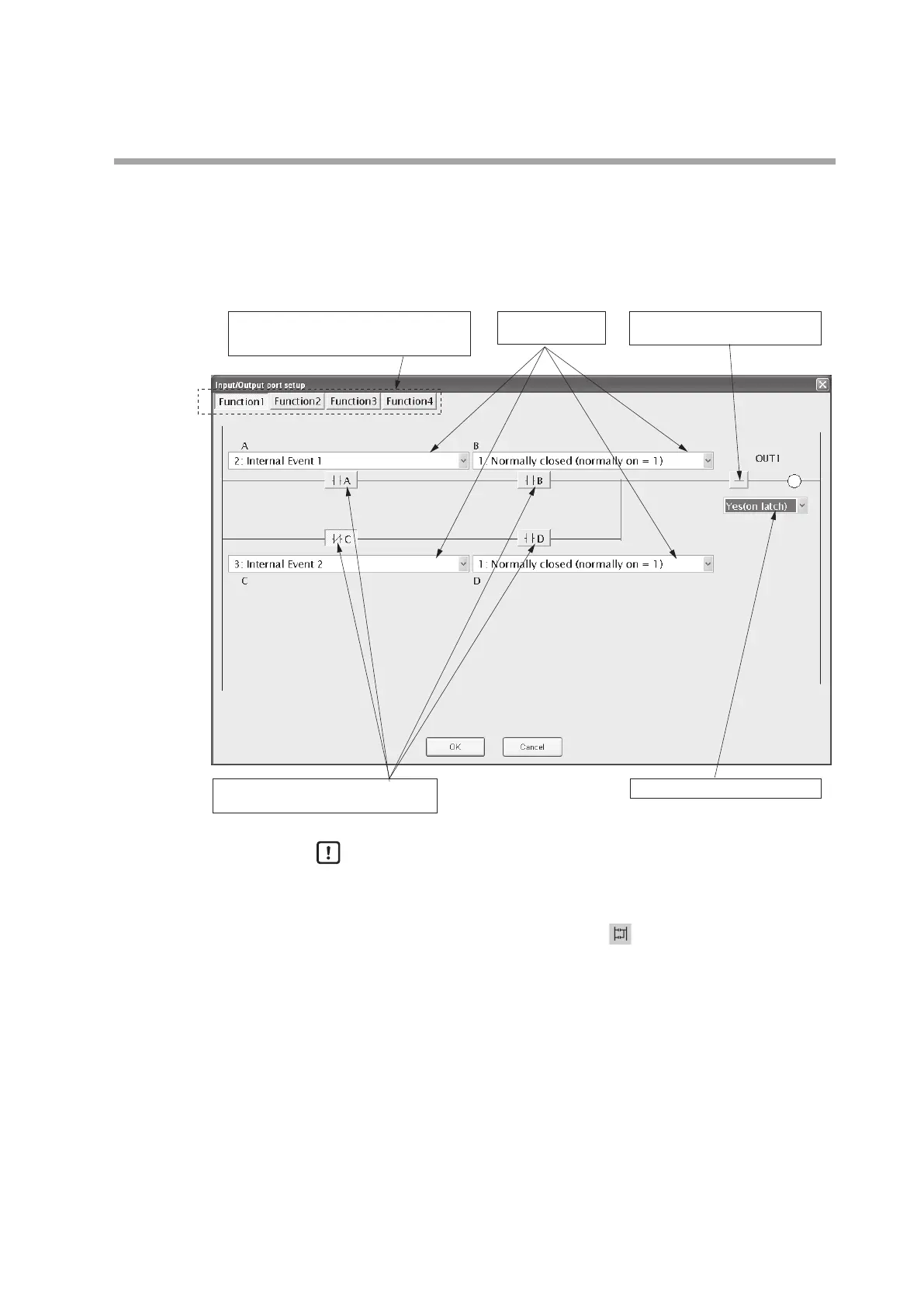

Select the output bit function. The image of
the ladder is changed according to the selected
output bit function.
Select whether or not the polarity is set for
assignments A to D.
Select the latch of the output status.
Select four output
assignments A to D.
Select whether or not the polarity of
the bit function is made.
Handling Precautions
In addition to the selection through the menu, the Input port setup window
can also be opened using the following procedures:
• Click the input/output port setup icon
.
• Right-click in the input bit function setting window.
• Push the [P] key while pressing the [Ctrl] key.
