Azbil C35 Series User Manual

7-16
Chapter 7. CPL COMMUNICATION FUNCTION
7 - 7 Reception and Transmission Timing


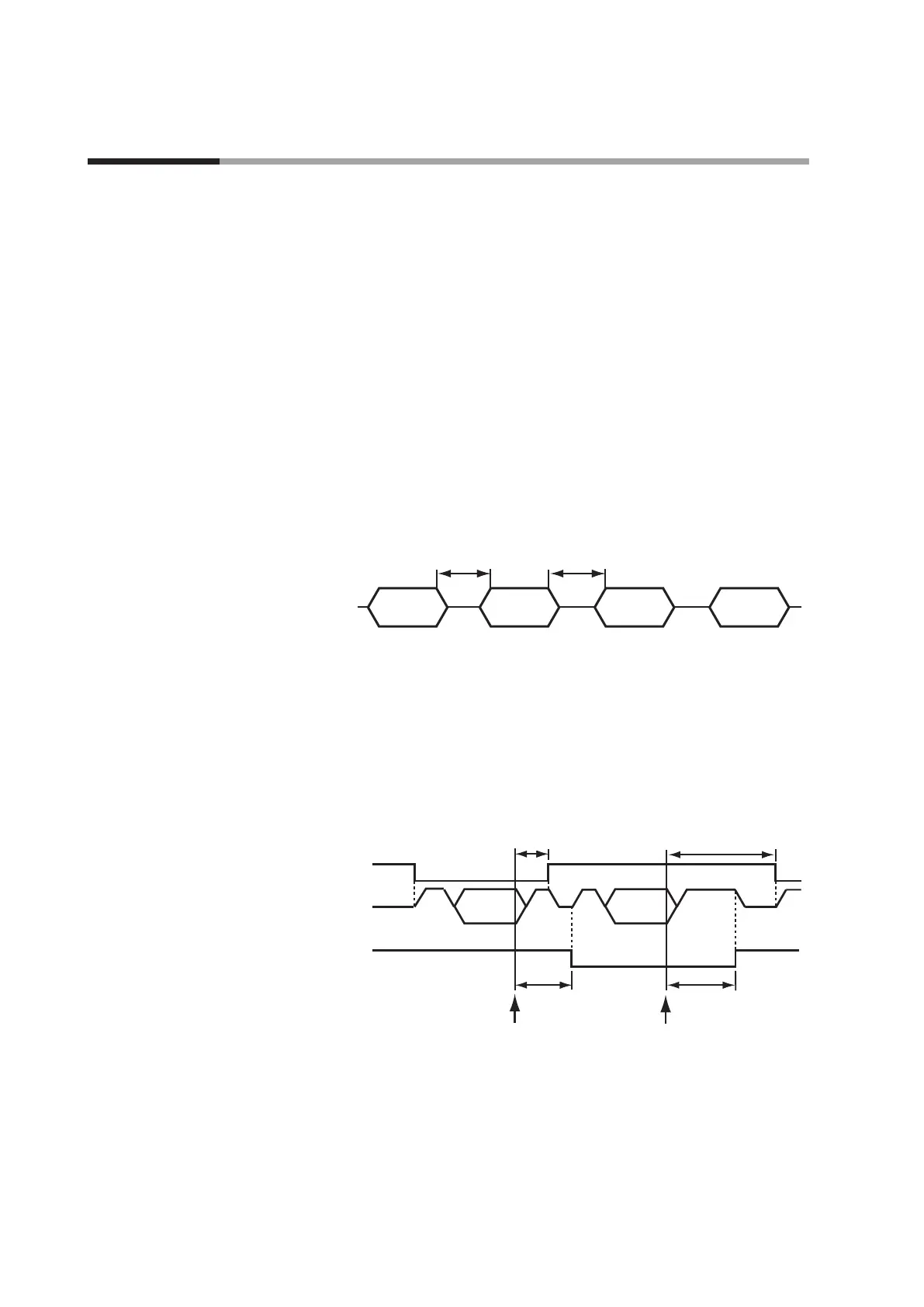

Timing specifications for instruction and response message
The cautions below are required with regard to the timing to transmit a instruction
message from the master station and a response message from the slave station.

Response monitor time
The maximum response time from the end of the instruction message transmission
by the master station until when the master station receives a response message
from the slave station is two seconds ((1) in the figure below). So, the response
monitor time should be set to two seconds.
Generally, when a response time-out occurs, the instruction message is resent.

Transmission start time
A wait time of 10ms is required before the master station starts to transmit the next
instruction message (to the same slave station or a different slave station) after the
end of receiving response message ((2) in the figure below).
Instruction
message
Response
message
Instruction
message
Response
message
Transmis-
sion line
• RS-485 3-wire system
(1) End of master station transmission -
Transmission start time of slave station = Max. 2000 ms
(2) End of slave station transmission -
Transmission start time of master station = Min. 10 ms
(1) (2)

RS-485 driver control timing specifications
When the transmission/reception on the RS-485 3-wire system is directly
controlled by the master station, care should be paid to the following timing:
(enable)
(enable)
(disable)
(disable)
Master station
driver control
Slave station
driver control
Transmission
line
(instruction
message)
Eective
data
Eective
data
(1) End of master station transmission - Driver disable time = Max. 500 μs
(2) End of slave station reception - Driver enable time = Response time-out
setup setting (
C70
) or greater
(3) End of slave station transmission - Driver disable time = Max. 10 ms
(4) End of master station reception - Driver enable time = Min. 10 ms
End of master
station transmission
End of slave
station transmission
(response
message)
(1)
(4)
(2) (3)
