Chapter 3. INSTALLATION
Using a soft cover
For the panel mounting type, it is possible to attach the soft cover to the front
console.
The key can be operated with the soft cover attached.
Attaching the soft cover to the front console provides the protection (IP66) similar
to the waterproof mounting using the gasket.
Items to be prepared:
Soft cover (for SDC35) Part No. 81441121-001 (Optional unit)
(for SDC36) Part No. 81441122-001 (Optional unit)
Main unit
Soft cover
Soft cover
Main unit
Panel
The gasket supplied with the main unit is not used.

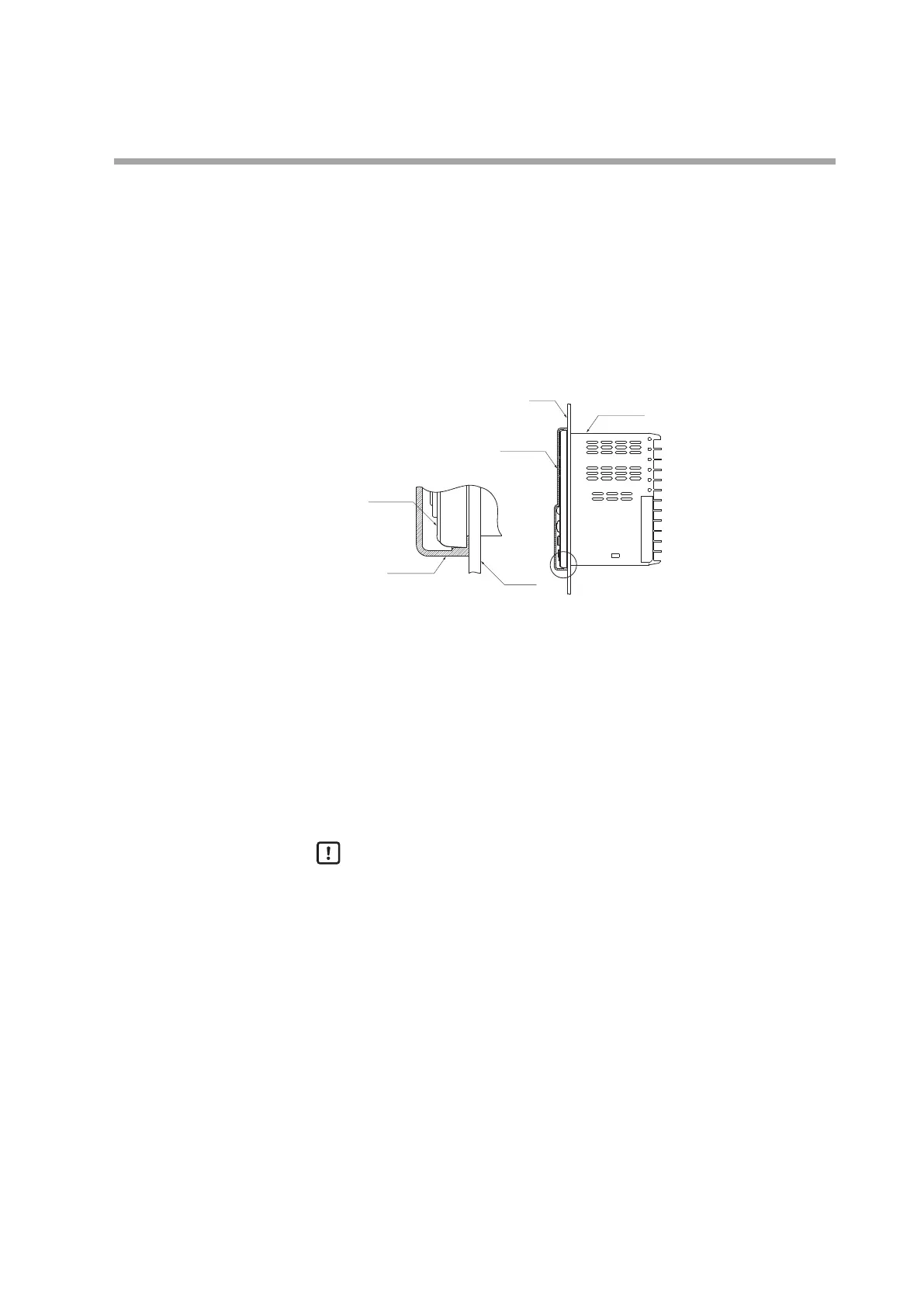

(1) Attach the soft cover so that it covers the console of the main unit.
(2) Insert the unit with the soft cover attached from the front of the panel.
(3) Fit the mounting bracket from the back of the panel.
(4) Push the mounting bracket against the panel until the hook of the mounting
bracket is firmly engaged with the groove of the main unit.
(5) Tighten the upper and lower screws of the mounting bracket.
Handling Precautions
• To fasten this controller onto the panel, tighten a mounting bracket
screws, and turn one more half turn when there is no play between the
bracket and panel. Excessively tightening the screws may deform the
controller case.
• If gang-mounted, dustproof and waterproof protection may not be
maintained.
To Next Page
