Azbil C35 Series User Manual

5-21
Chapter 5. DETAILED DESCRIPTION OF EACH FUNCTION

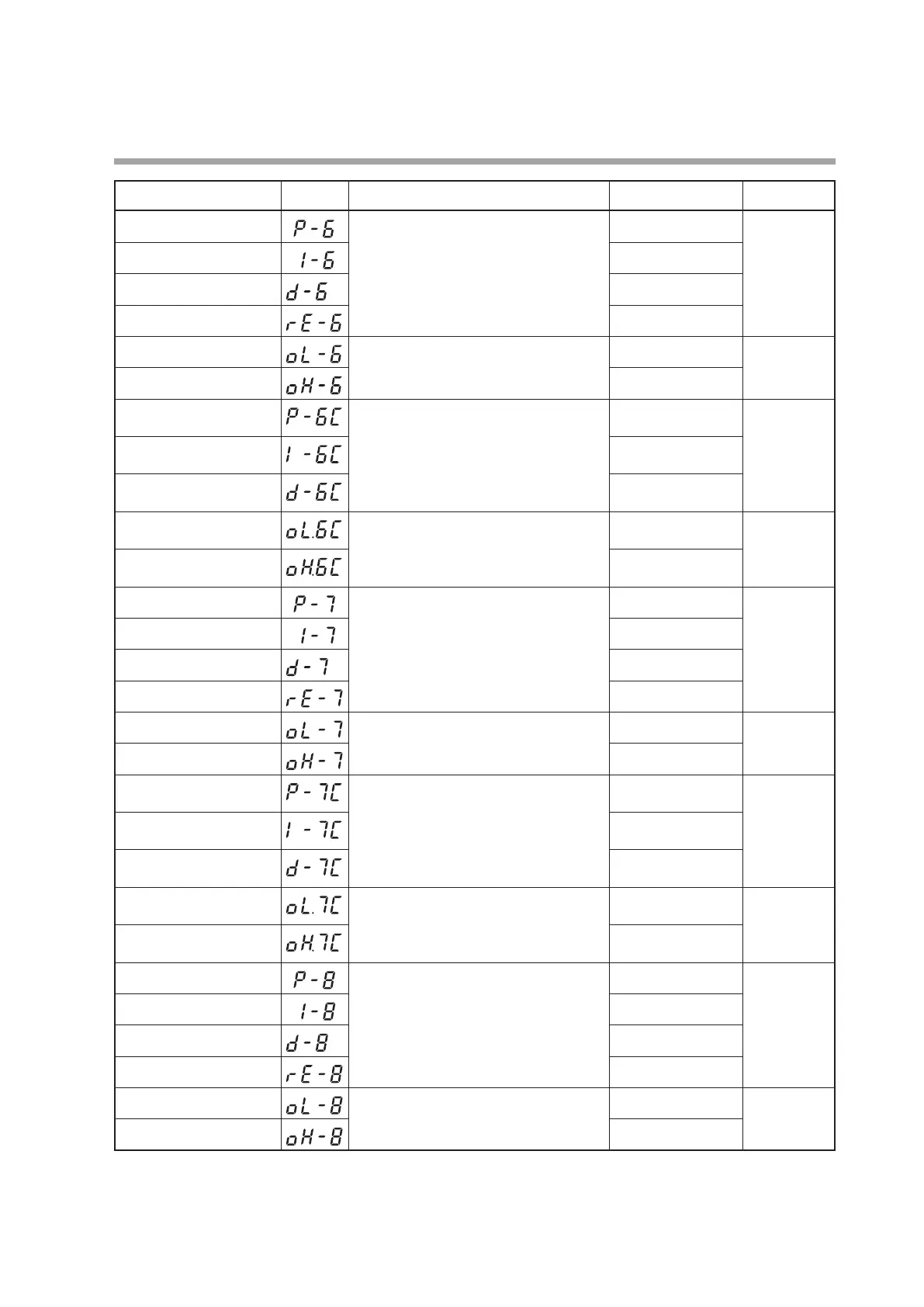

Item (Bank) Display Contents Initial value User level
Proportional band (PID 6)
Same as PID 1 5.0% Basic,
Standard,
High function
Integration time (PID 6)
120s
Derivative time (PID 6)
30s
Manual reset (PID 6)
50.0%
MV low limit (PID 6)
Same as PID 1 0.0% Standard,
High function
MV high limit (PID 6)
100.0%
Cool-side proportional
band (PID 6)
Same as PID 1 5.0% Basic,
Standard,
High function
Cool-side integration time
(PID 6)
120s
Cool-side derivative time
(PID 6)
30s
Cool-side MV low limit
(PID 6)
Same as PID 1 0.0% Standard,
High function
Cool-side MV high limit
(PID 6)
100.0%
Proportional band (PID 7)
Same as PID 1 5.0% Basic,
Standard,
High function
Integral time (PID 7)
120s
Derivative time (PID 7)
30s
Manual reset (PID 7)
50.0%
MV low limit (PID 7)
Same as PID 1 0.0% Standard,
High function
MV high limit (PID 7)
100.0%
Cool-side proportional
band (PID 7)
Same as PID 1 5.0% Basic,
Standard,
High function
Cool-side integration time
(PID 7)
120s
Cool-side derivative time
(PID 7)
30s
Cool-side MV low limit
(PID 7)
Same as PID 1 0.0% Standard,
High function
Cool-side MV high limit
(PID 7)
100.0%
Proportional band (PID 8)
Same as PID 1 5.0% Basic,
Standard,
High function
Integration time (PID 8)
120s
Derivative time (PID 8)
30s
Manual reset (PID 8)
50.0%
MV low limit (PID 8)
Same as PID 1 0.0% Standard,
High function
MV high limit (PID 8)
100.0%
(Continue on next page.)
