BALTECH VP-3470
Operation manual
Balancing 73
the window CORR. WEIGHTS will show several installation angles of the correction
weights and their values (Figure 73).

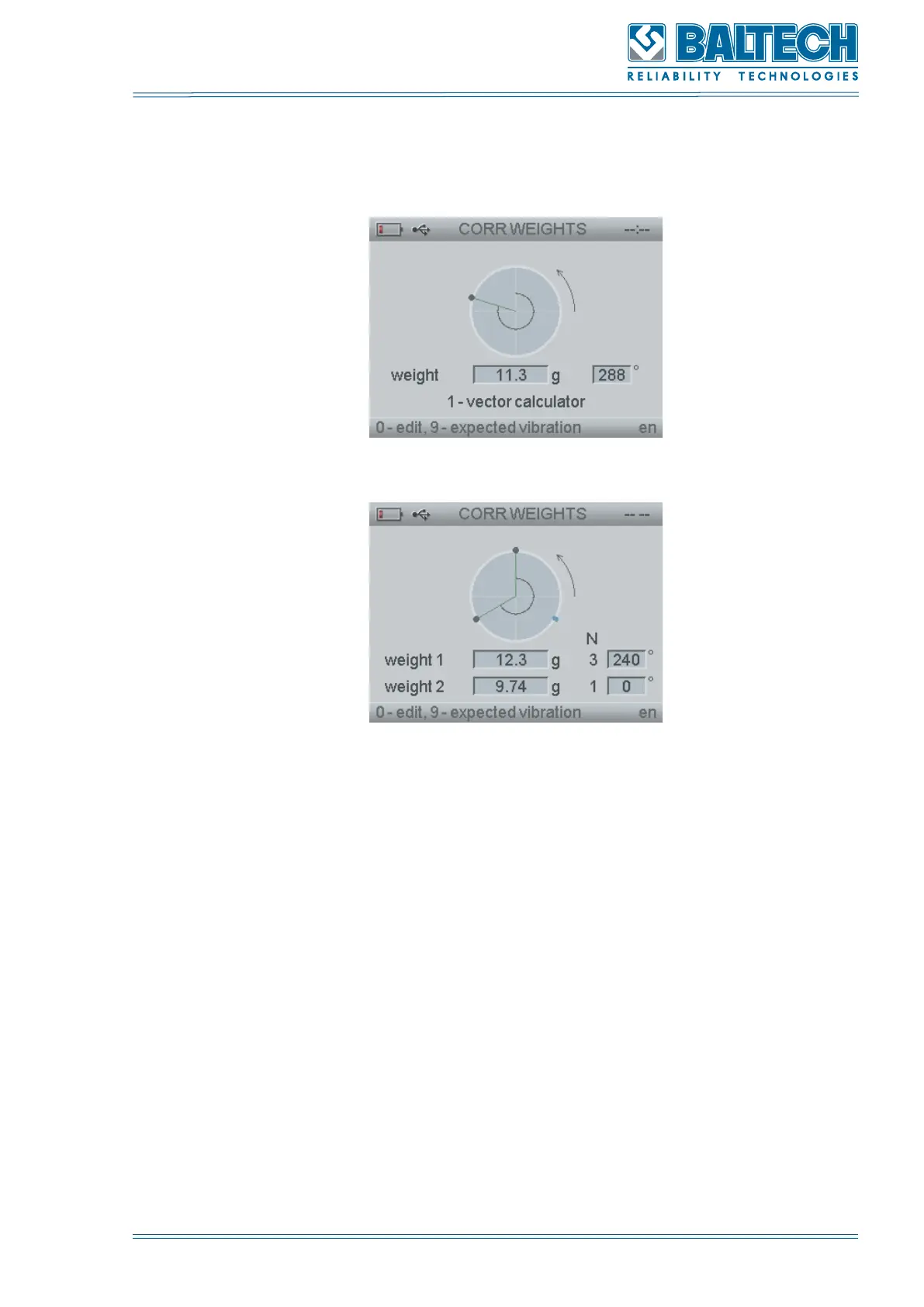

Figure 72. Calculation for ordinary balancing
Figure 73. Calculation for angle method
10. Install the correction weight according to the given recommendations (p.9).
Press Enter. The window TRIM RUN will open (Figure 73). Press Enter to move to
the window MEASURING. When the light indicator becomes green press Enter to get
the results of the trim run (Figure 74). This window shows the vibration and phase
levels received during the trial and trim runs.
