Banner AG4 Series Safety Laser Scanner
2. Connect interface X2 with the PC.
3. Calibrate the front screen using the software; see AG4soft Software Instruction Manual.
5.4.6 Scanner Replacement Procedure
The replacement scanner must be the same model and be installed in the same position and alignment as the original
Scanner to be replaced.
A typical replacement procedure:
1. Remove all power from the Scanner and the machine (see warning at the beginning of Section 5),
2. Remove the original Scanner,
3. Mount the replacement Scanner using the existing mounting bracket or holes,
4. Ensure that the alignment (e.g., tilt and rotation) matches that of the original Scanner,
5a. Ensure the X1 plug slide switch is in position 1 (default) and reconnect the Machine Interface (X1) cordset,
NOTE: In position 1, the ConfigPlug automatically downloads the original Scanner configuration at power-up.
LEDs #2 and #5 flash briefly to confirm the successful transfer of the configuration. See Figure 5-1.
5b. If also replacing the Machine Interface (X1) cordset or the configuration within the ConfigPlug is corrupted, use
the PC interface (X2) connection to transfer the appropriate configuration from a saved file or create a new
configuration (see Section 4 or the AG4Soft Software Instruction Manual).
6. Apply power to only the Scanner (not the machine) and perform the Commissioning Checkout (Section 6.2).

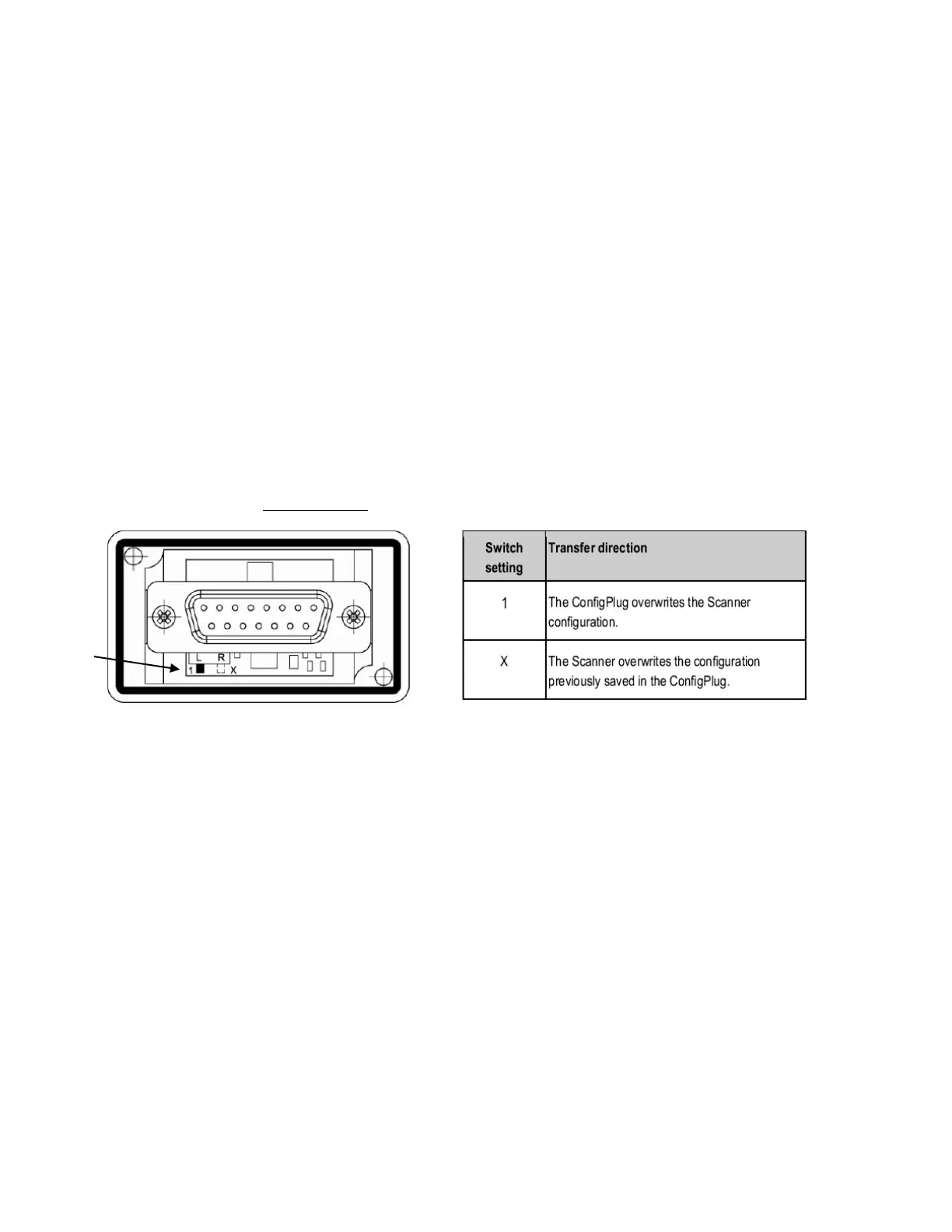

Figure 5-6. ConfigPlug configuration
5.5 Repairs and Warranty Service
Scanner components are designed for reliability. Do not attempt any repairs to the Scanner, other than replacement of
the front screen (window) as described in Section 5.4.2. The Scanner contains no other field-replaceable components. If
repair is necessary, do not attempt to repair yourself; return the unit to the factory, as follows.
1. Contact a Banner Factory Application Engineer at the address or numbers listed on the back cover of this
document, or below:
Banner Engineering Corp.,
Application Engineering Group
9714 Tenth Avenue North
Minneapolis, MN 55441
Phone: 763.544.3164 or
Toll-Free (US only): 888.373.6767
They will attempt to troubleshoot the system from your description of the problem. If they conclude that a
component is defective, they will issue an RMA (Return Merchandise Authorization) number for your
paperwork, and give you the proper shipping address.
2. Pack the component(s) carefully. Damage which occurs during return shipping is not covered by warranty.
