Banner SC26-2 User Manual

Max.
Time
Max.
Time
< 3s< 3s
< 3s< 3s
M0:MSP2-1
M0:MSP2-2
Mute Time Limit
M0:SO1
M0:OS1
M0:ME1
M0:MSP1-1
M0:MSP1-2
Mute Function
One Way - 2 Sensor Pair
On or Off On or Off

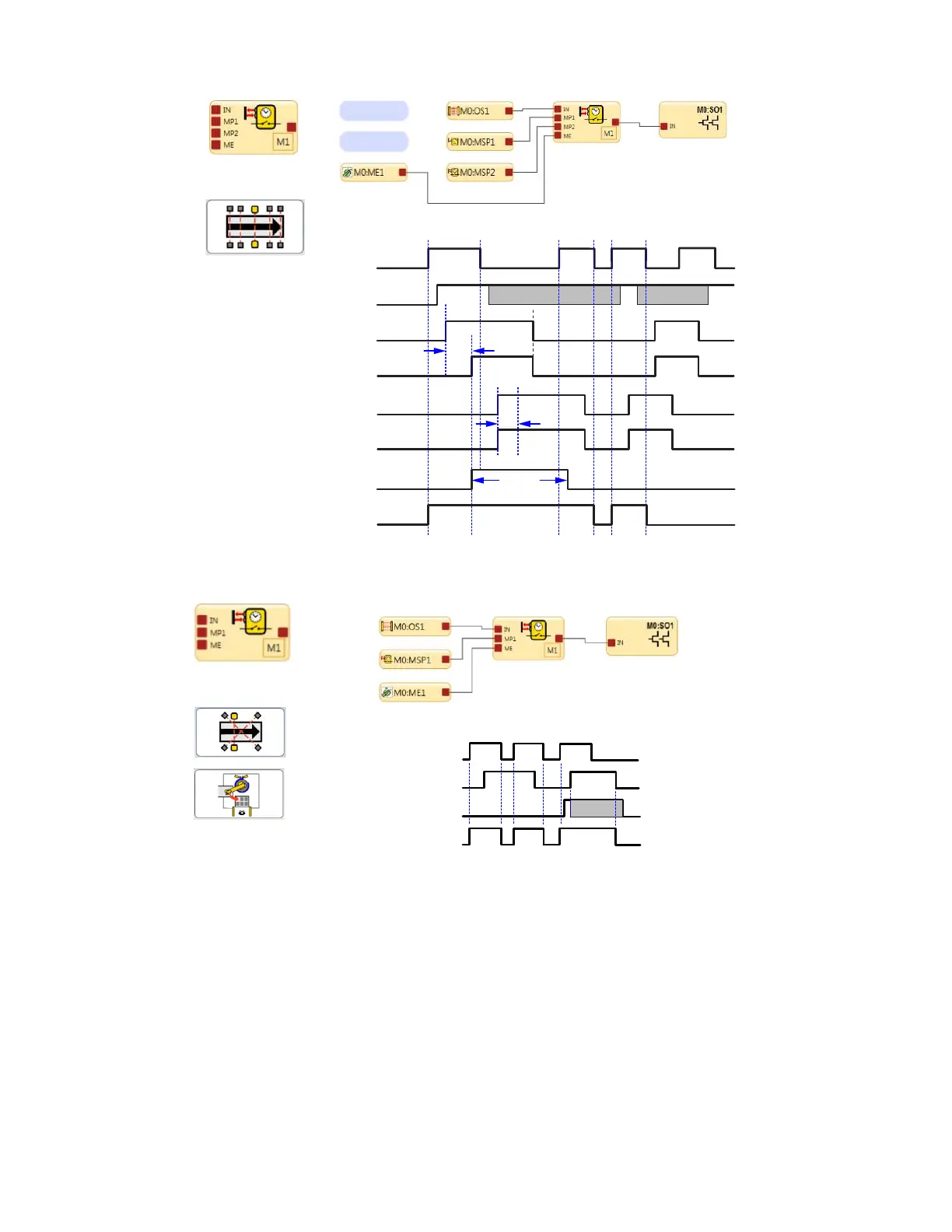

Figure 29. Timing Diagram—One-Way Muting Block, Two Muting Sensor Pairs
Mute Function
Two Way - 1 Sensor Pair
M0:SO1
M0:OS1
M0:MSP1
M0:ME1
On or Off
Figure 30. Timing Diagram—Two-Way Muting Block, One Muting Sensor Pair
XS/SC26-2 Safety Controller
35
