12. Convergence
12.2 Close the sealed compartment
Necessary tools
3 mm A llen wrench
How to close the sealed compartment
1. H ook the cover p late on the studs.
2

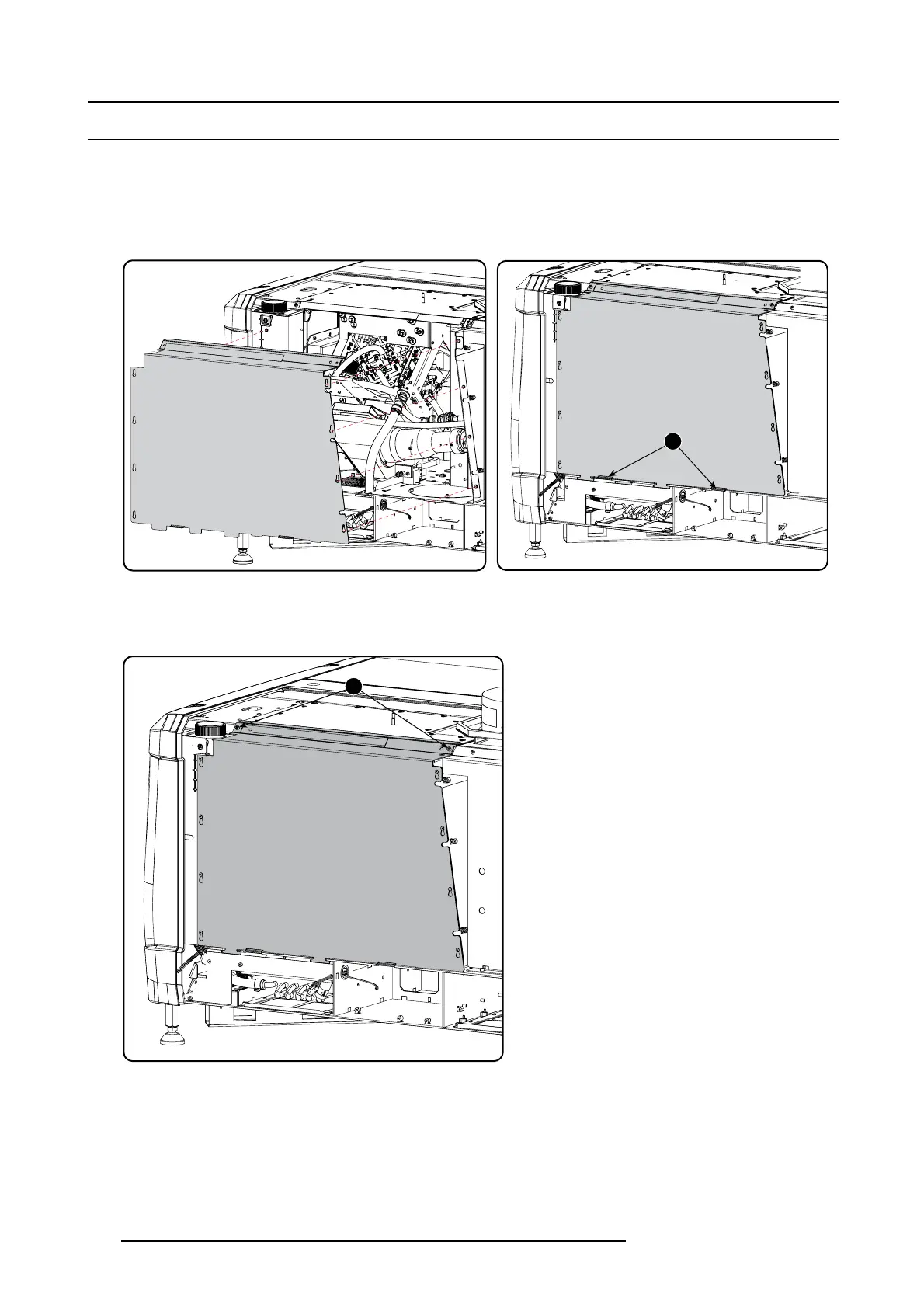

Image 12-3
Sealed cover, m ount
2. Slide the cover downwards by pushing on both lips until it is in its correct position.
3. D rive in both fixation screws (1).
1
Image 12-4
Sealed cover, fixation
