12. Convergence
12.3 C onvergence c ontrols
Definitions-Abbreviations
• X: Horizontal d irection on the screen, with or igin in the centre of the screen a nd + to the right
• Y: Vertical direction on the screen, with origin in the cen tre of the screen and + to the top
• Z rotation: Tilting of the X and Y axes in their plane: + is clockwise rotation
• [1] ; [2] ; [3] ; [4] ; [5 ] ; [6] : these are the 6 a djustments av ailable as they appear on the standard convergence adjustment
screen.

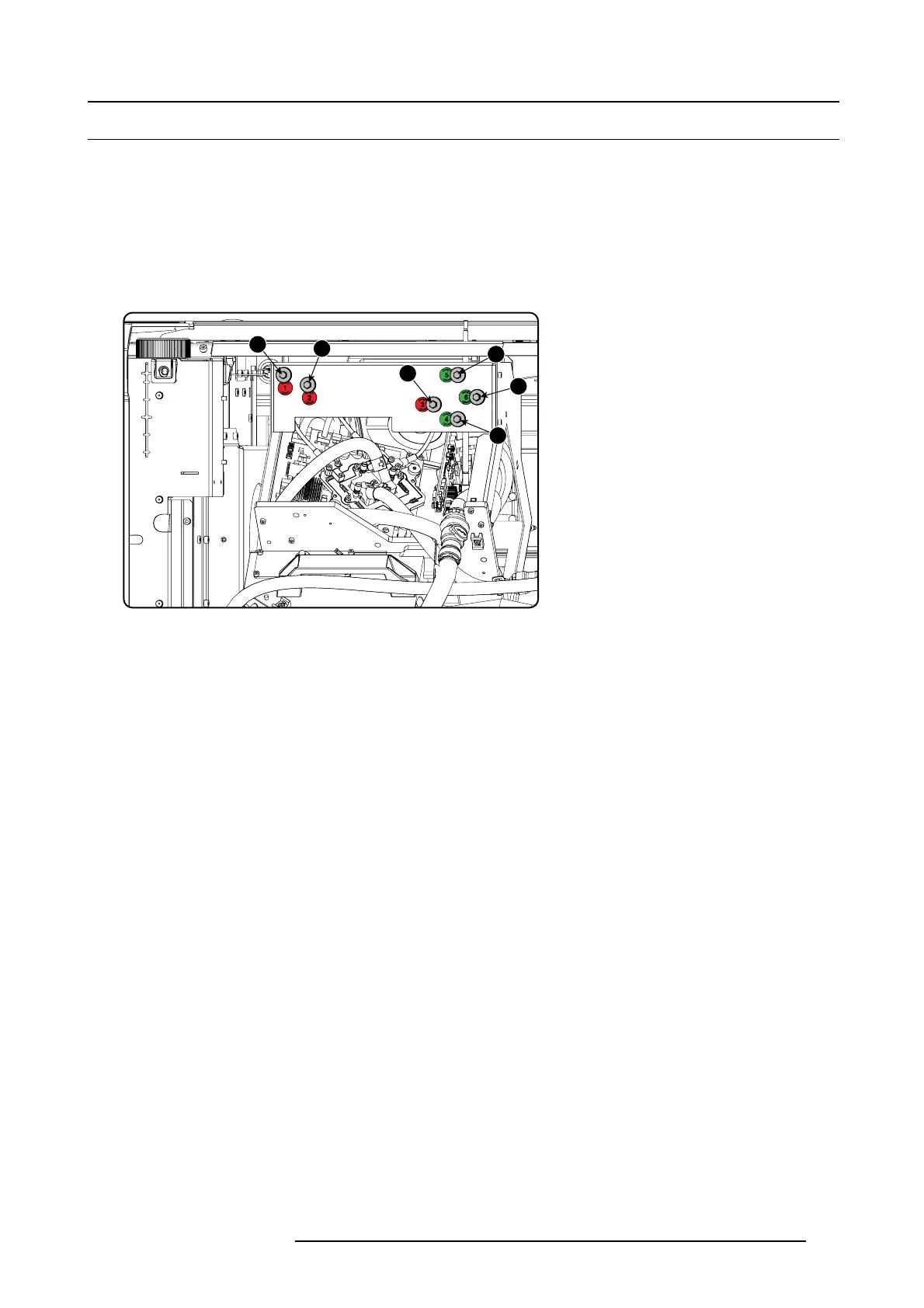

Convergence controls, location
1
2
3
4
5
6
Image 12-5
Convergence knobs
1 Red channel, knob num ber 1
2 Red channel, knob num ber 2
3 Red channel, knob num ber 3
4 Green channel, knob number 4
5 Green channel, knob number 5
6 Green channel, knob number 6
Convergence Test pattern
For the manual correction of the D MD conv
ergence, a typical convergence test pattern is generated.
