4. Lamp & lamp house
4.1 Introdu ction
Lamp and la mp house
The lamp hous e o f the DP2K-32B projector is delivered without lamp. The xenon bulb lam p is deliver ed s eparately and has to b e
installed on site by a qualified service technician.
A
B
C
D
E
F
G
H

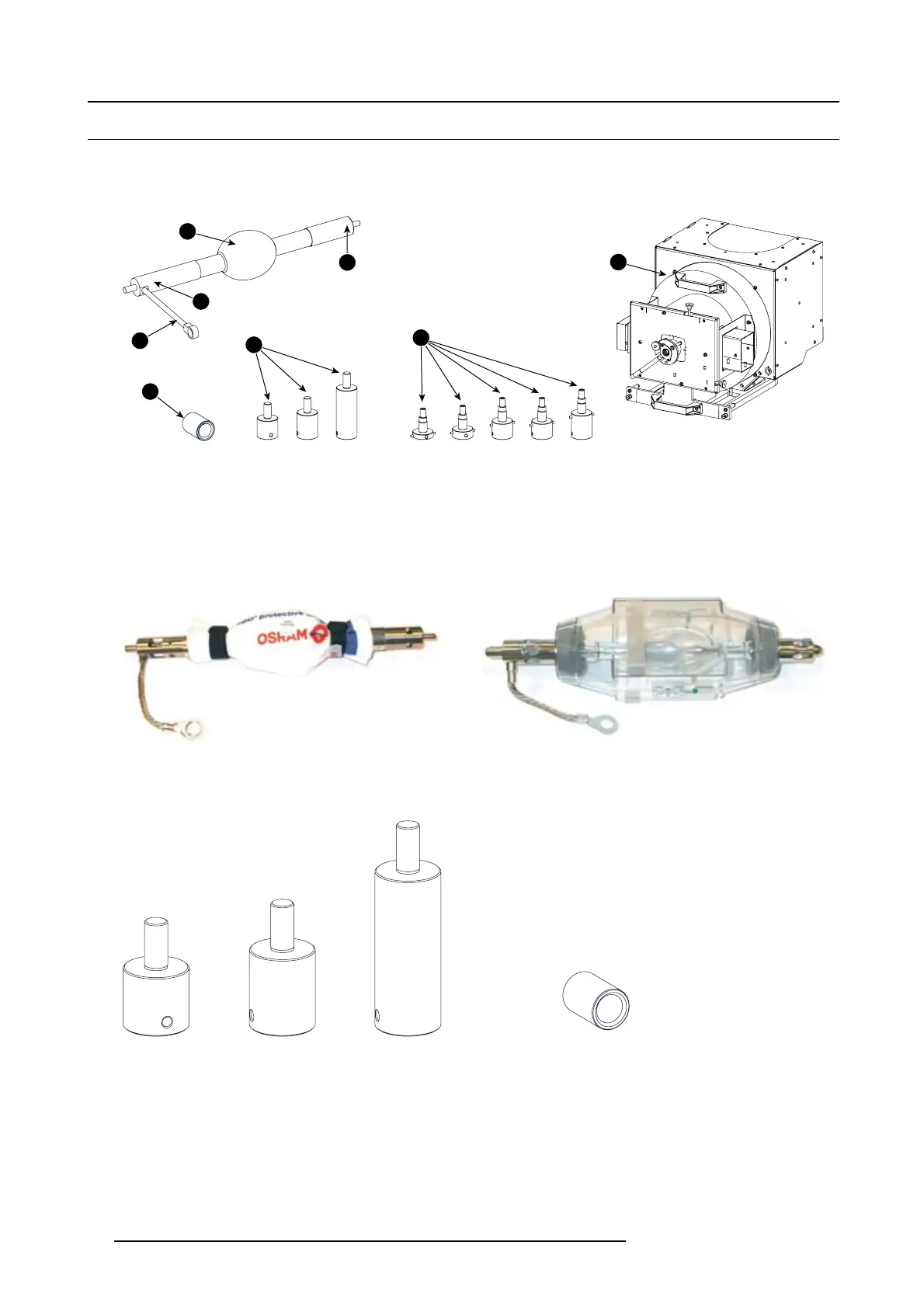

Image 4-1
A A node of the xenon bulb lamp.
B E nvelope of the xenon bulb lamp.
C Cathode of the xenon bulb lamp.
D Anode w ire of the xenon bulb lamp.
E A node adaptation bushing.
F Lamp anode adapter.
G Lamp cathode adapter.
H Lamp house.
The xenon bulb lamp is packed in a p rotective container or wrapped in a protective cloth. Never rem ove this protective container or
protective cloth without wearing adequate protective clothing (face shield, clean cotton gloves, welder’s jacket).
Image 4-2
Xenon bulb lamp wrapped in protective cloth (left) and in container (right).
Anode adapters
R859985KR859986K R859987K R864132
K
Image 4-3
Lamp anode adapters and adaptation bushing
32 R59770491 DP2K-32B 30/04/2010
