4. Lamp & lamp house

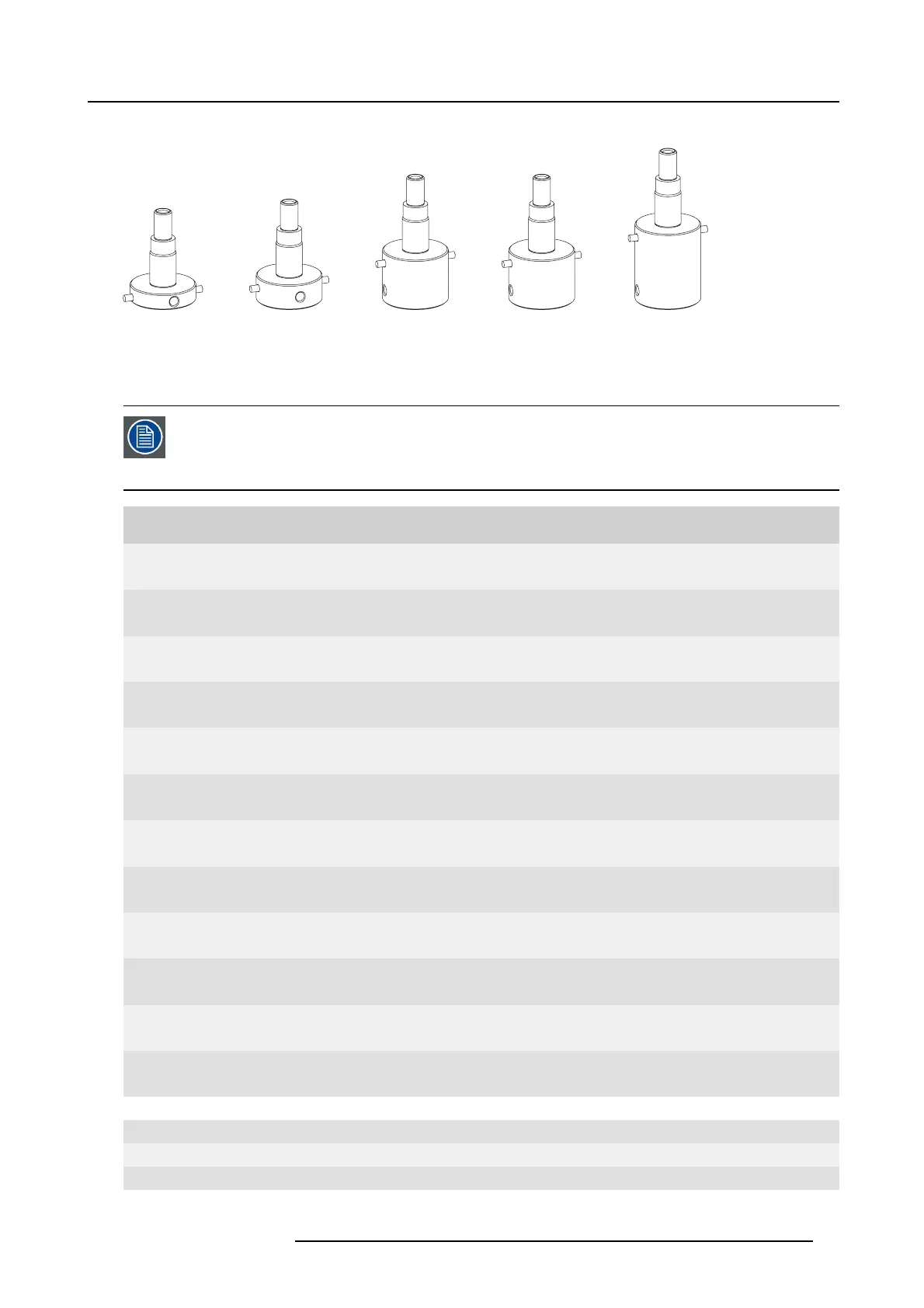

Cathode adapters
R8436081KR8436101K R8436111KR859984K R8436061K
Image 4-4
Lamp cathode adapters
Supported xenon bulk lamps
Anode and cathode lam p adapters are used to position the arc of the xenon lam p in the middle of the reflector
inside the lamp house. The size of the xenon lamp vary from type to type. Because of that d ifferent lamp
adapters are req uired. Futhermore, som e lamp types require an anode adaptation ring to fit precisely into
the anode support assembly. The table below shows for each supported xenon lamp which anode/cathode
adapters h ave to b e used an d if an anod e adaptation ring/bushing is required.
Lamp type
Supplier Cathode
adapter
Anode
adapter
Anode adaptation ring
or bushing
Barco Order No.
2000W
HS-OFR
OSRAM X BO R8436061K R859987K
--
2500W
HS O FR
OSRAM XBO
R8436061K R859987K
- -
3000W
HS-OFR
OSRAM XBO
R8436061K R859987K
--
3000W
DHS O FR
OSRAM X BO R8436061K R859987K
-
R9855950
4000W
HS-OFR
OSRAM XBO
R8436081K R859986K
--
4500W
HS-OFR
OSRAM X BO R8436081K R859986K
--
4500W
DHP-OFR
OSRAM XBO
R8436081K R859986K
-
R9855949
5000W
HBM-OFR
OSRAM XBO
R8436081K
-
R842215K or
R864132K
-
6000W
HS-OFR
OSRAM XBO
R8436081K
-
R842215K or
R864132K
-
6000W
HP-OFR
OSRAM XBO
R8436081K
-
R842215K or
R864132K
-
6000W
DHP-OFR
OSRAM X BO R8436081K
-
R842215K or
R864132K
R98064901
6500W
DHP-OFR
OSRAM XBO
R8436081K
-
R842215K or
R864132K
R9806860
UXL-20SC USHIO R8436061K R859987K
--
UXL-25SC USHIO R8436061K R859987K
--
UXL-30SC USHIO R8436061K R859987K
--
R59770491 DP2K-32B 30/04/2010
33
