3. Physical installation
Y
Δ
1
2
3
4
5
6
A
B
C

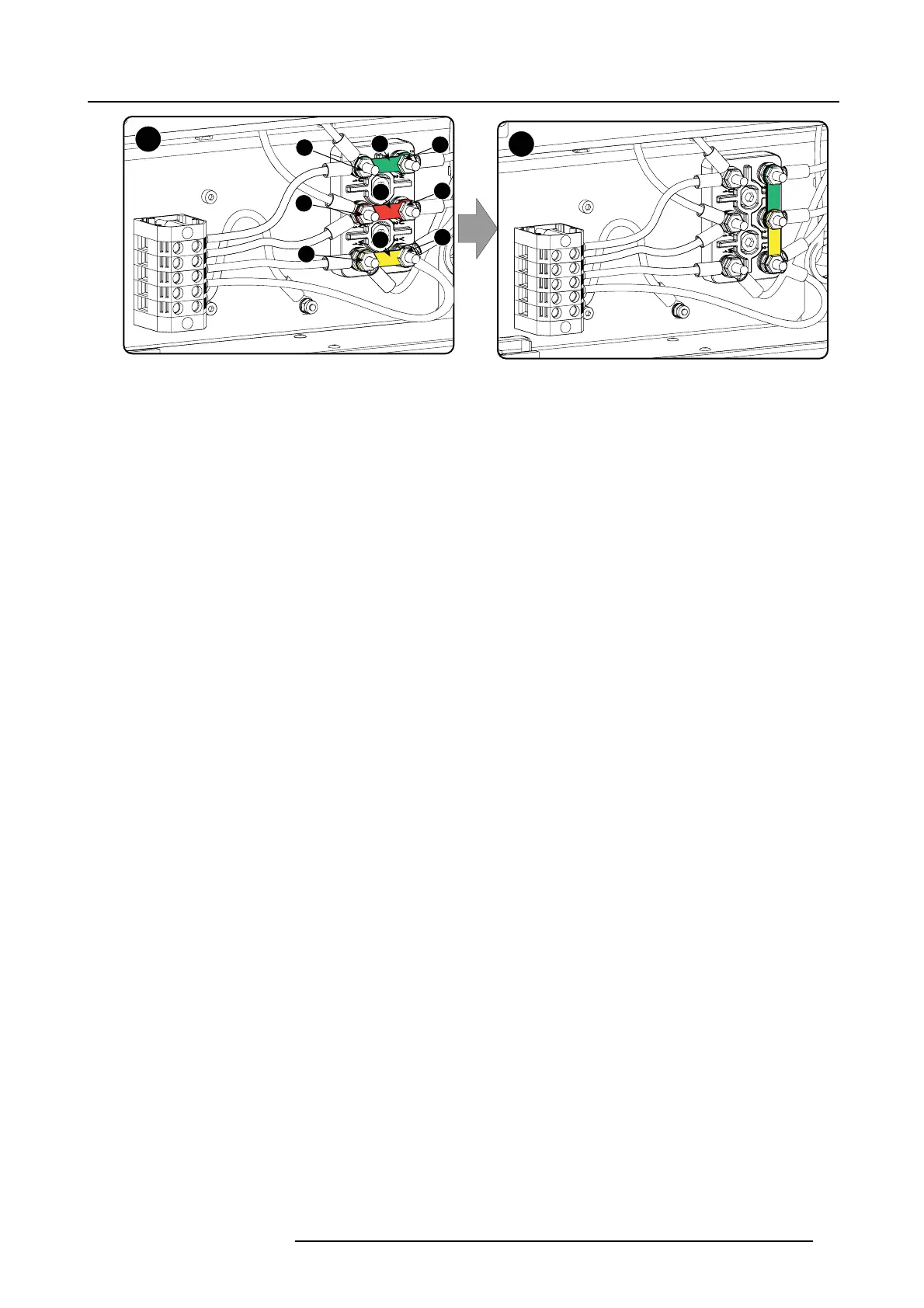

Image 3-11
Δ to Υ connection
2. Take off the mounted links (A, B and C).
3. C onnect the right pins together. P lace 2 links between the upper pin and the middle pin (A, B )and 1 link between the m iddle pin
and the low er pin (C).
R59770491 DP2K-32B 30/04/2010
25
