3. Physical installation
If a neutral conductor is available, connect alway s to the connector indic ated with N on the t erminal b arrier strip
Warning: Always connect first the PE wire .
3W+N+PE
3W + PE
L1
L2
L3
N
PE
L1
L2
L3
PE

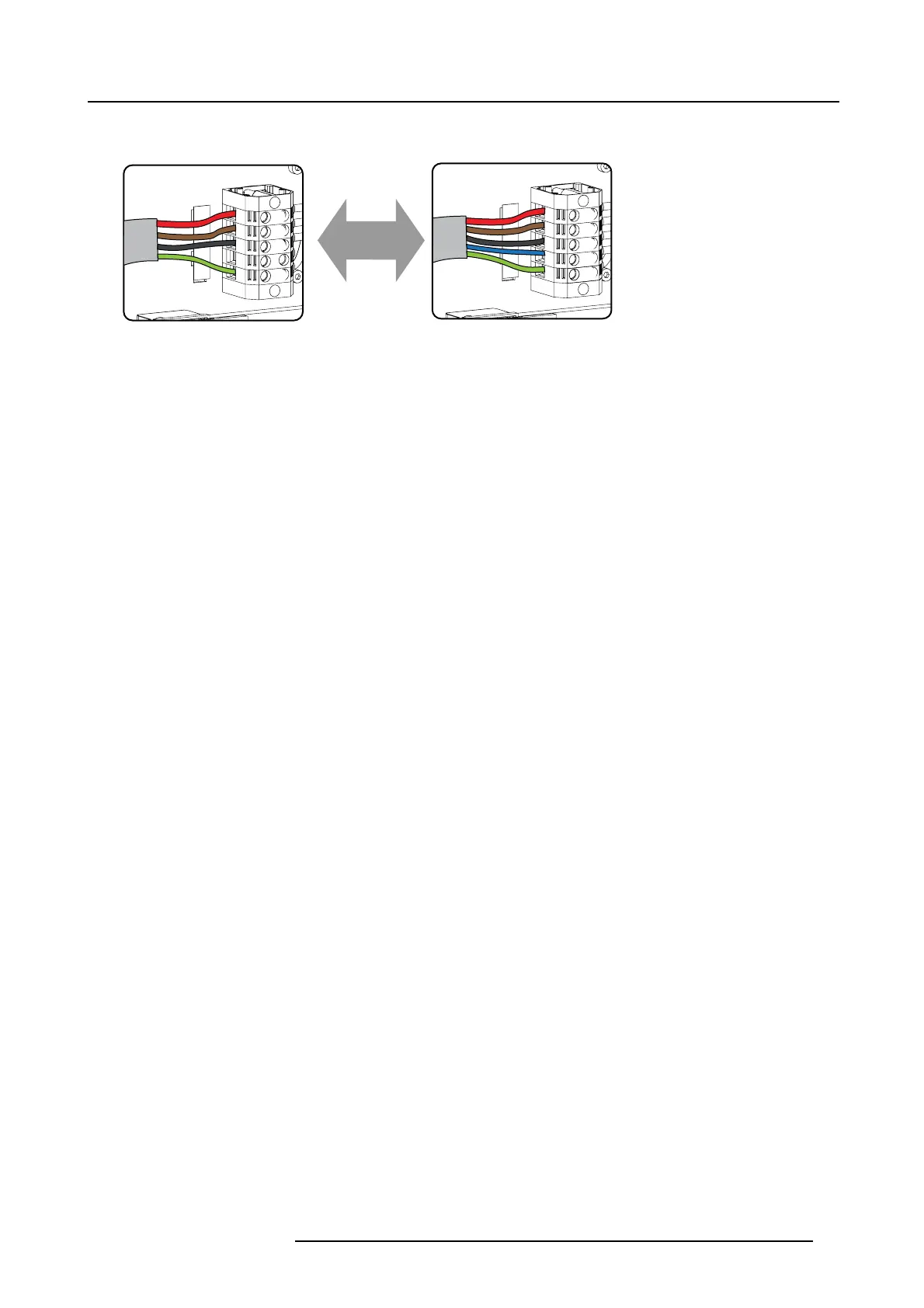

Image 3-13
Terminal connections
6. R einstall the power connection cover.
