5. Physical installation
90°

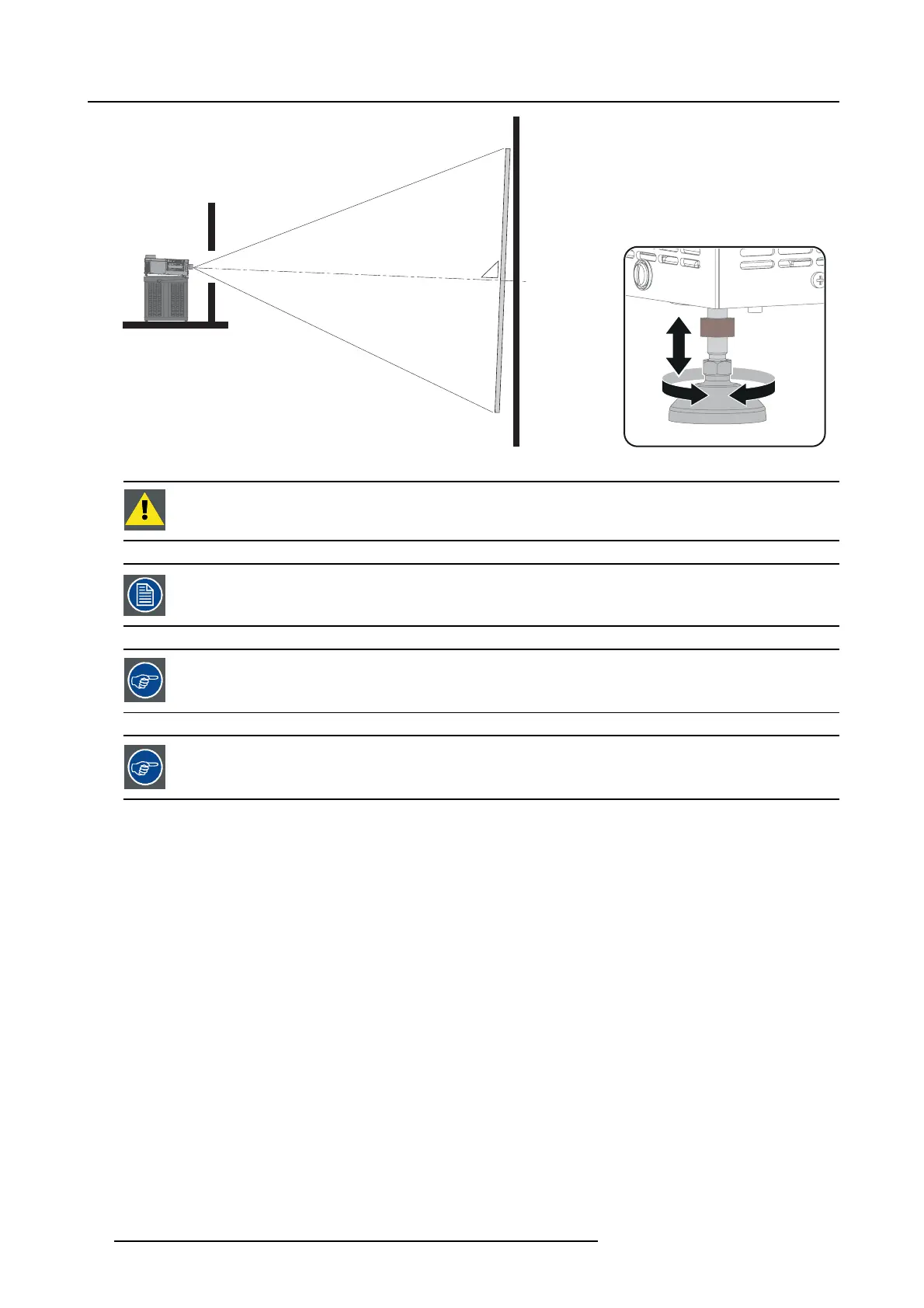

Inclined screen
Image 5-4
CAUTION: Th e DP2K -S series projector m ay tilt maximum 20° f orward and maximum 5° backwards. No tilt is
allowed sideways.
The back feet of the projector can be turned out maximum 150mm. This correspond with a forward tilt of 7° if
the fron t foot is completely turned in.
Barco offers a pedestal for the DP 2K-S series projector. This universal p edestal allow s yo u to ea sily tilt the
projectorforwardupto6°.
Use the tilt of the projector feet and the pedestal to get s ufficient tilt.
22 R5977692 DP2K-S SERIES 10/12/2012
