5. Physical installation
5
46
3
2

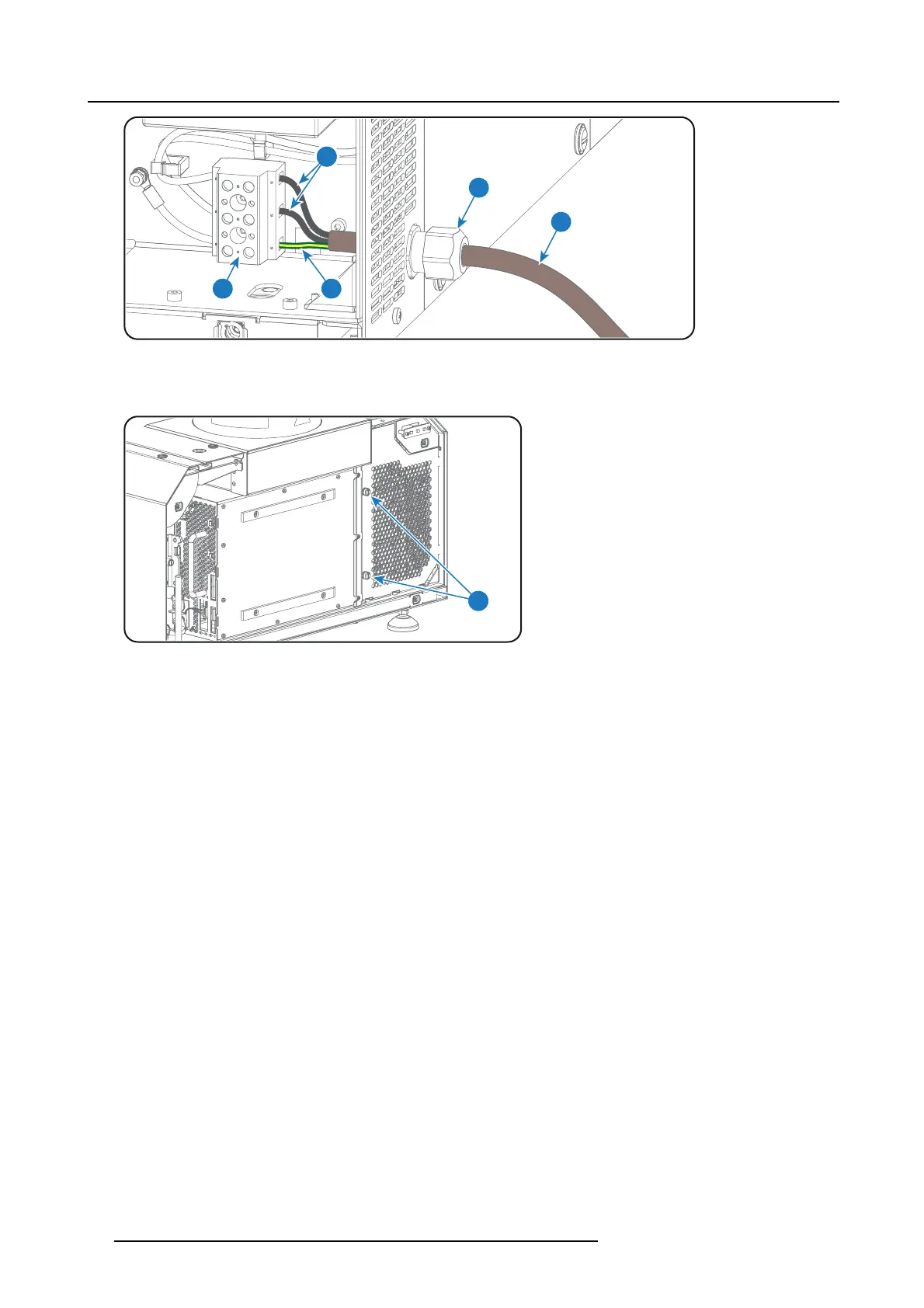

Image 5-7
4. Secur e the AC power supply cord by fastening the cable gland (reference 3 image 5-7). Use a 24m
m open end wrench
5. Install the cover of the m ain AC compartment. Fasten the tw o captive thumb screws (reference 1 image 5-8).
1
Image 5-8
6. Install the rear cover of the projector. See procedure "Installation of the rear cover", page 130 .
