2. Getting to know the projector.
Image 2-7
2.9 Functionality overview

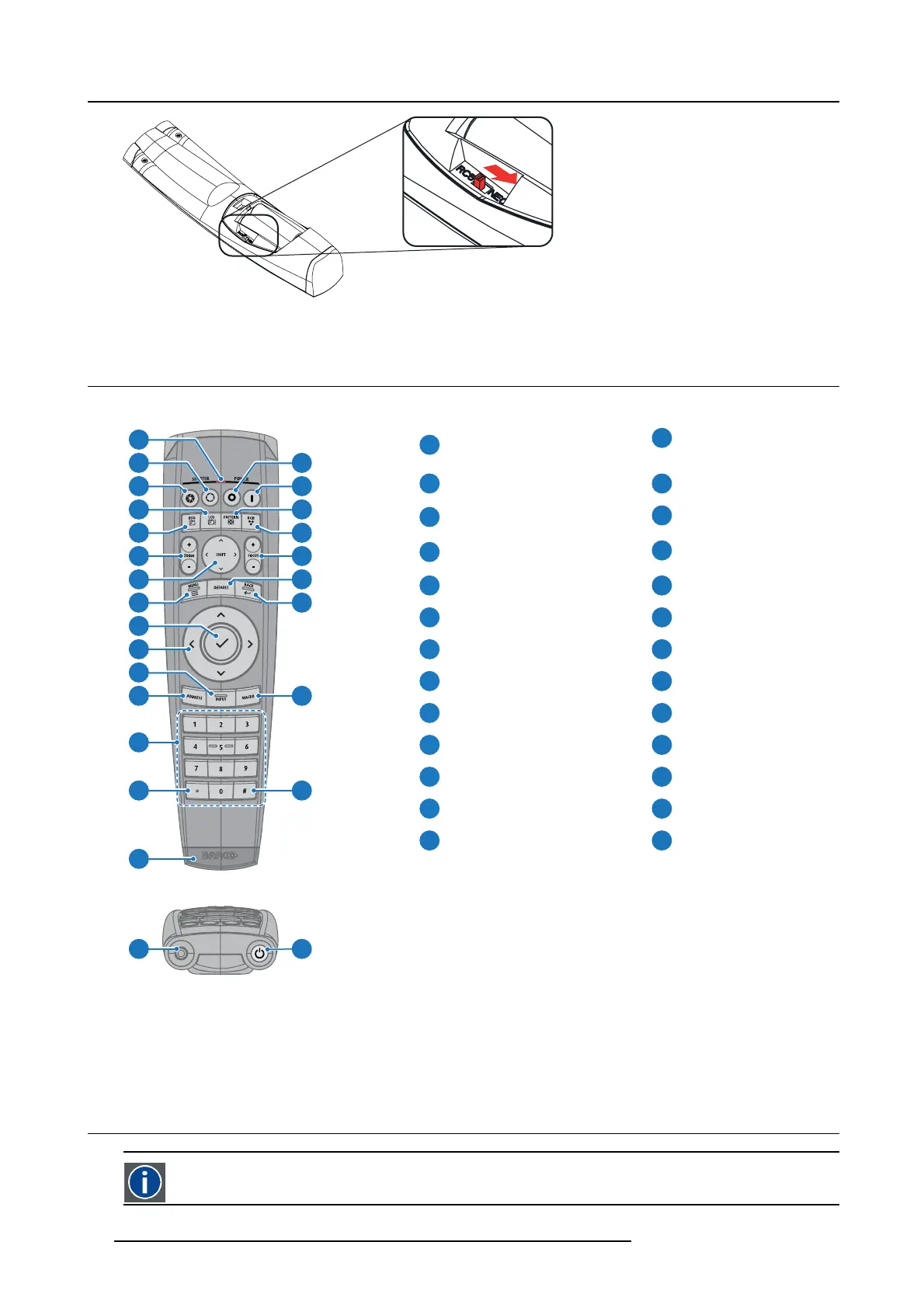

Remote Control Unit buttons
1
Button pressed indicator.
14
Backspace (while entering
values)
2
Shutter Open.
15
XLR connector.
3
Shutter Close.
16
Decimal mark (while entering
values)
4
Touch Panel On/Off. (Not in
use).
17
Macro button. (Not in use)
5
OSD On/Off.
18
Menu Bac k.
6
Lens Zoom.
19
Default button. (Not in us e).
7
Lens Shift.
20
Lens Focus.
8
Menu Activation.
21
Real Color menu..
9
Menu Selection, OK button.
22
Test Patterns.
10
Menu Navigation.
23
Power On.
11
Input Selection.
24
Power Off.
12
Address button.
25
Stereo Jack.
1
2
3
4
5
6
7
8
9
10
11
12
15
24
23
22
21
20
19
18
17
16
13
14
2625
13
Numeric buttons.
26
RCU On/Off.
The projector remote control is a full featu re wireless remote control, powered by two (2) standard AA batteries. The battery com-
partment is on the bac k s ide of the remote control.
The remote co ntrol is backlit for us e in dark environments. It als o has an Jack connector for wired connection to the projector. W hen
the wire is connec ted, the IR beam is switched off.
2.10 Projector Address
Projector address
Address installed in the projector to be individually co ntrolled.
