8. Installation menu
8. INSTALLATION MENU
Overview
• Lens
• Orientation
•Warp
• Warping – Bow
• Basic Blend
• Illumination
8.1 Lens
About
Installation / Lens
Manage lens functions: focus, zoom , shift, and iris.
All changes occur dynamically.
Focus and zoom
Installation / Lens / Z oom
Use the navigational arrows, up and down, to adjust zoom.
Use the navigational arrows, left and right, to adjust focus.
Shift
Installation / Lens / S hift
Use the left, right, up and down navigational arrows to adjust the lens s hift in four directions.
8.2 Orientation
About
Installation / Orientation
Rotate the image on the im aging device in table or ceiling and front or rear.
There are four options, as illustrated below: table / front, table / rear, c eiling / front, ce iling / rear.
Default: Table Front.

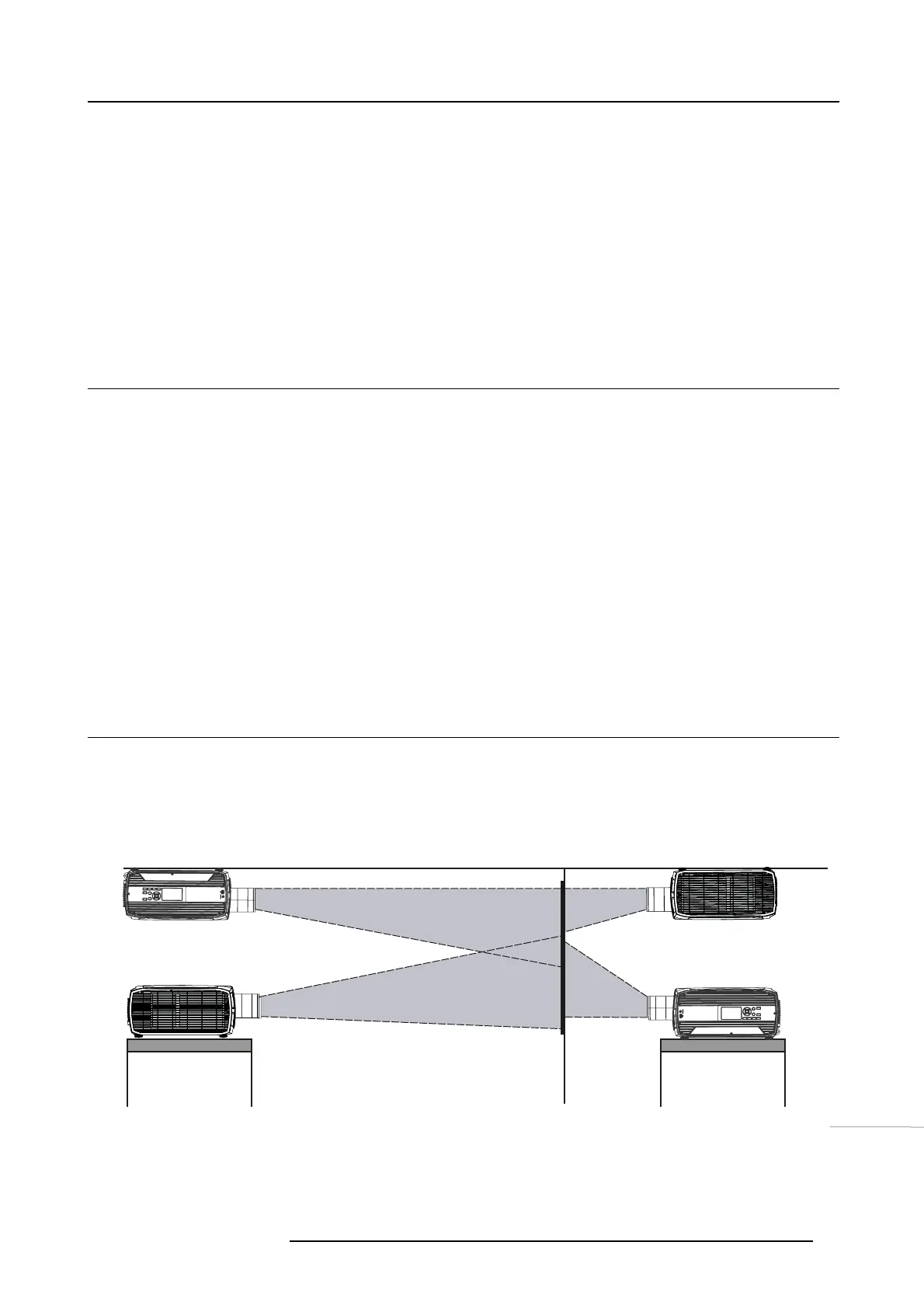

Image 8-1
601–426 F70 SERIES 16/06/2017 53
