4. Physical Installation
Mains power requirement
Projector Power Requirement
F70 110 –240V. 50 –60 Hz.
To protect operating personnel, the National Electrical Manufacturers A ssociation (NEMA) recommends that the instrument panel
and cabinet be grounded.
In no event shall this projector be operated without an adequate cabinet ground connection.
The AC supply must be installed by a qua lified e lectrician in conformance to local codes. Hardware, wire sizes and conduit t ypes
must comply with local codes.
AutoDim function will be activated when mains pow er are 110V or below.
Ventilation

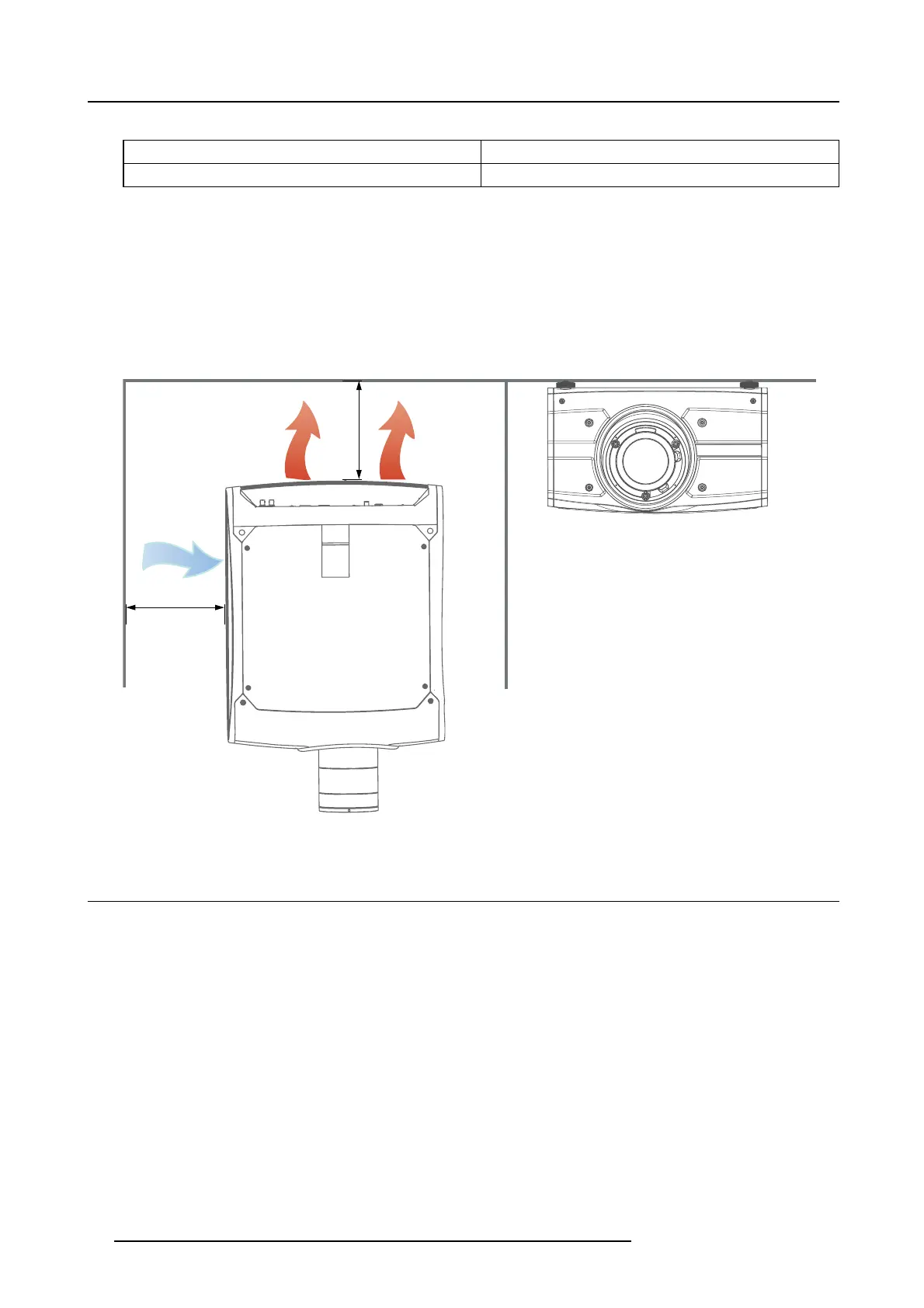

The free space necessary between the air intake and exhaust are shown below.
1000 mm
500 mm
Image 4-1
4.3 Initial inspection
General
Each projector is inspec ted and rigorously tested at our prod uction facility to ensure that it is free from any m echan ical or electrical
defects.
Upon receipt of the projector, we recommend that customers inspect the projector for any s igns of damage that may have occurred
in trans it. If damage is found, file a claim with the shipping carrier immediately. Notify the Barco Sales and Service office, or yo u r
preferred B arco age nt, of the damag e as soon as possible.
Box Contents
Your projector box should contain the following:
• Projector unit
• Power cord (suitable for reg ion)
• Quick start guide
• Safety manual
• Remote Control
32
601–426 F70 SERIES 16/06/2017
