4. Physical Installation
If app lied in a mo tion rig, care must be taken to stay w ithin the environmental specifications for vib ration and
shock. It may also be necessary to use additional, custom means t o stabilize the projection lens to make su re
that the proje cted image remains in position and properly focused.
4.6 Projector safe attachment point s
About
Due to use of a Rigging Frame or other equipmen t, the projector h as som e defines anchor points that shall be used. See the

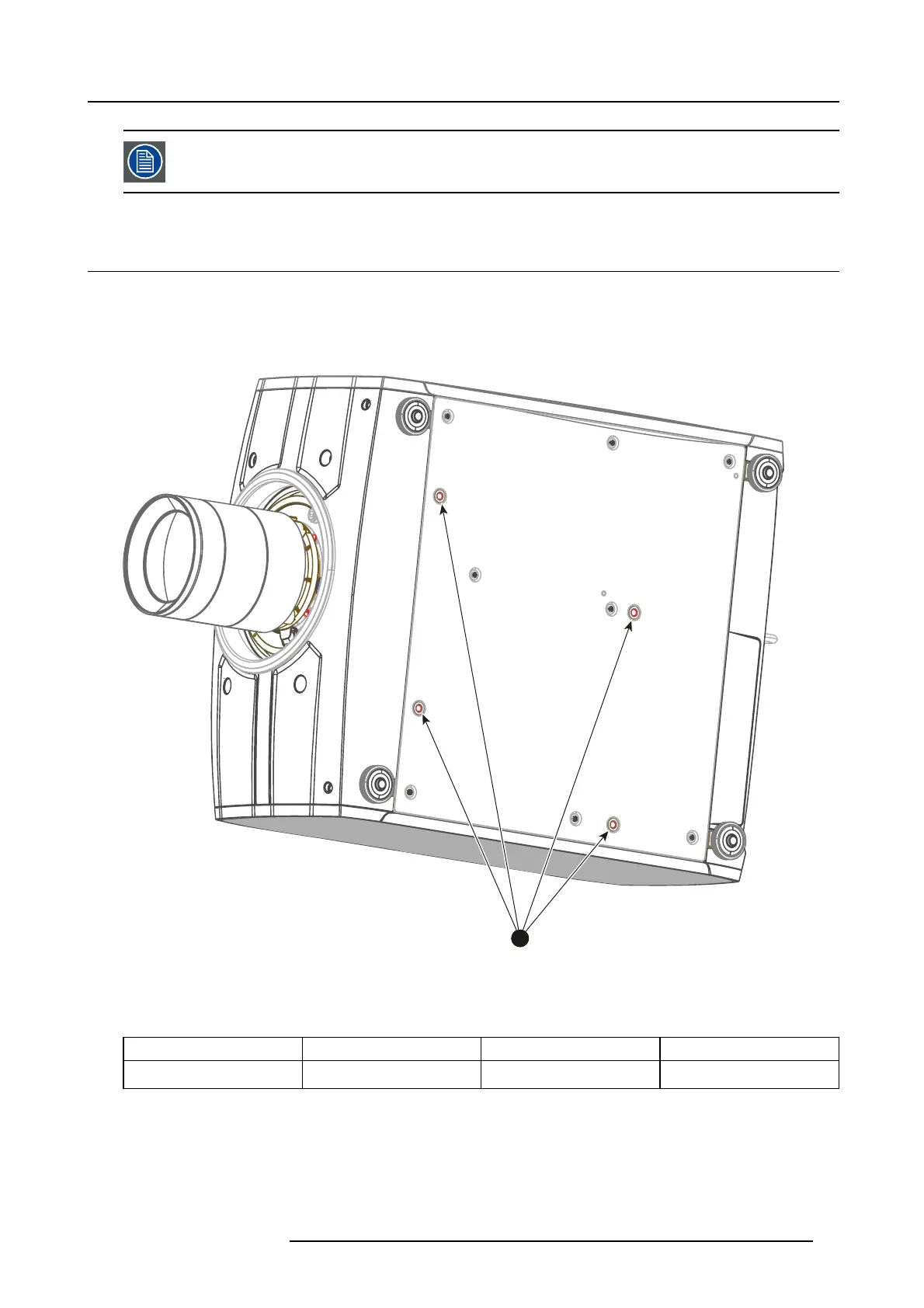

illustration below.
Note that there is only this 4 selected attachment points that is approved as anchor points for the unit.
Anchorpoints.
For attaching to rigging frame or similar.
1
Image 4-3
Item Thread Dimen sion Max Hole Depth Application
1 M6 15mm Anchorpoint / Ceiling / Rig
Mount
601–426 F70 SERIES 16/06/2017 35
