3. Lenses
EN11 EN12 EN13 EN14 EN15 EN16 EN33

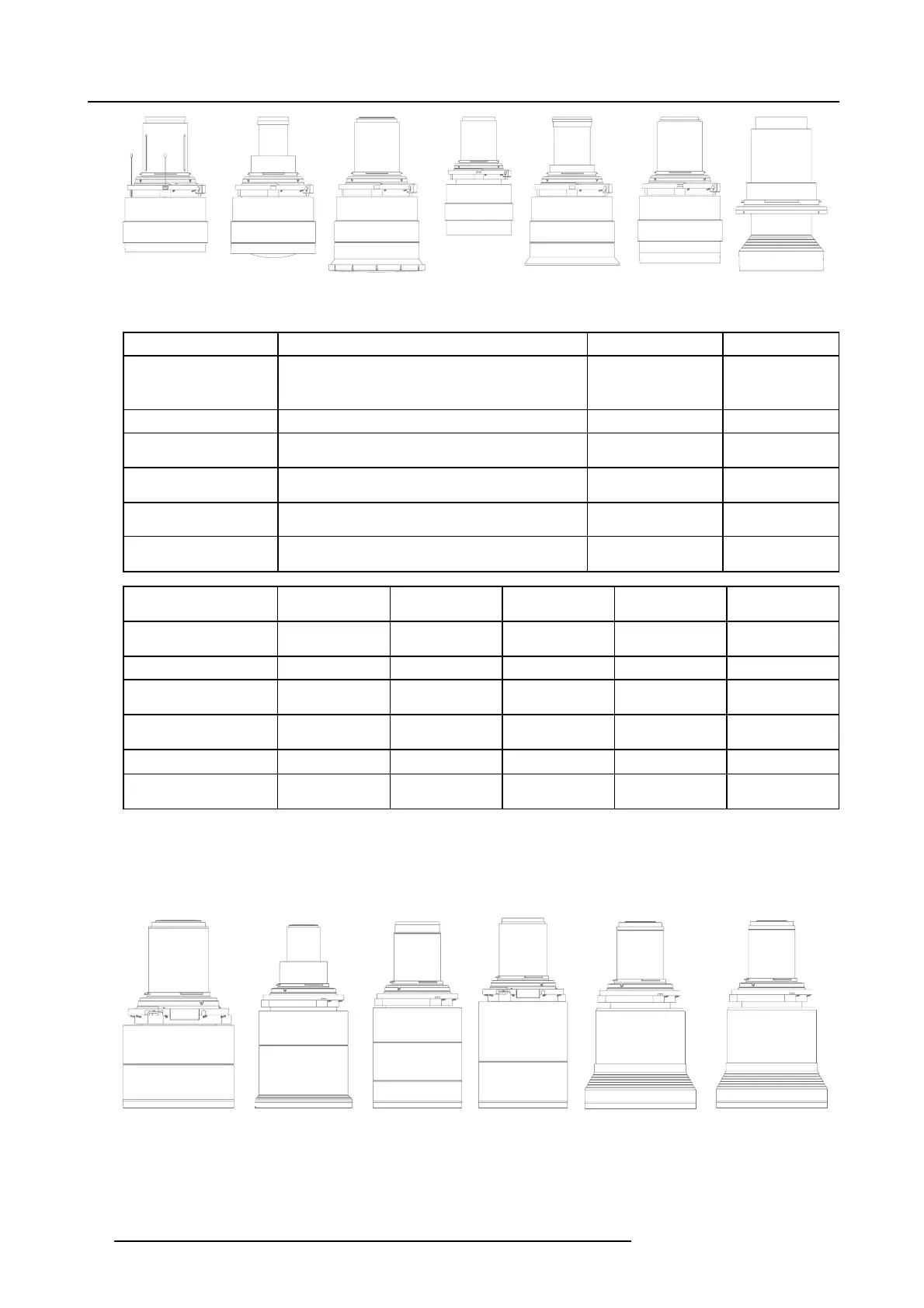

Image 3-1
Name Description Part number Weight
FLD Lens 1.6 - 2.32 : 1
(EN11)
1.6-2.32 : 1 (WUX GA)
R9801214 2.2 kg
FLD Lens 0.74 : 1 (EN12) 0 .74:1 (WUX G A)
R9801218 1.9 kg
FLD Lens 1.24 - 1.6 : 1
(EN13)
1.24 - 1.6 : 1 (WUXGA)
R9801228 2.6 kg
FLD Lens 2.37 - 3.79 : 1
(EN14)
2.37 - 3.79 : 1 (WUXGA)
R9801209 2.5 kg
FLD Lens 1.16:1 (EN15) 1.16 : 1 (WUXG A) R9801225 2.4 kg
FLD Lens 3.80 - 6.50 : 1
(EN16)
3.8 - 6.5 : 1 (WUXGA) R9801249 2.5 kg
Name
Working F# Iris / Iris F#
Zoom Ratio Focal Length
(mm)
Focus Range (m)
FLD Lens 1.6 - 2.32 : 1
(EN11)
2.1-2.52 Yes 2.1-6.5 1 .45 33.2-48.1 2.0-15
FLD Lens 0.74 : 1 (EN12) 2 .1 Yes 2.1-6.5
-
16.35 0.5-5
FLD Lens 1.24 - 1.6 : 1
(EN13)
2.1-2.22 Yes 2.1-6.5 1 .3 25.59-33.24 1.0-15
FLD Lens 2 .37 - 3.79 : 1
(EN14)
2.1-2.72 Yes 2.1-6.5 1 .6 49.1-78.6 3.0-30
FLD Lens 1.16:1 (EN15)
2.1 Yes 2.1-6.5
-
23.98 1.5-15
FLD Lens 3 .80 - 6.50 : 1
(EN16)
2.1-2.66 Yes 2.1-6.5 1 .74 78.3-136.2 4.0-40
Available lenses — 4K, WUXGA, W QXGA
The FLD+ (EN4X) lens range is custom-engineered for W Q XGA projec tors.
The electrical connection to the lens motors is via a spring probe contact (pogo) pin array o n the bayonet m ount. The projector w ill
automatically detect and identify the lens when it is install ed. Automatic detection is not av ailable for 3rd party lenses.
EN41
EN42 EN43 EN44 EN45 EN46
Image 3-2
26 601–426 F70 SERIES 16/06/2017
