6. Source menu
Dual Link DVI 2
Dual Link DVI 1
2400
2400
1920 1920
3840

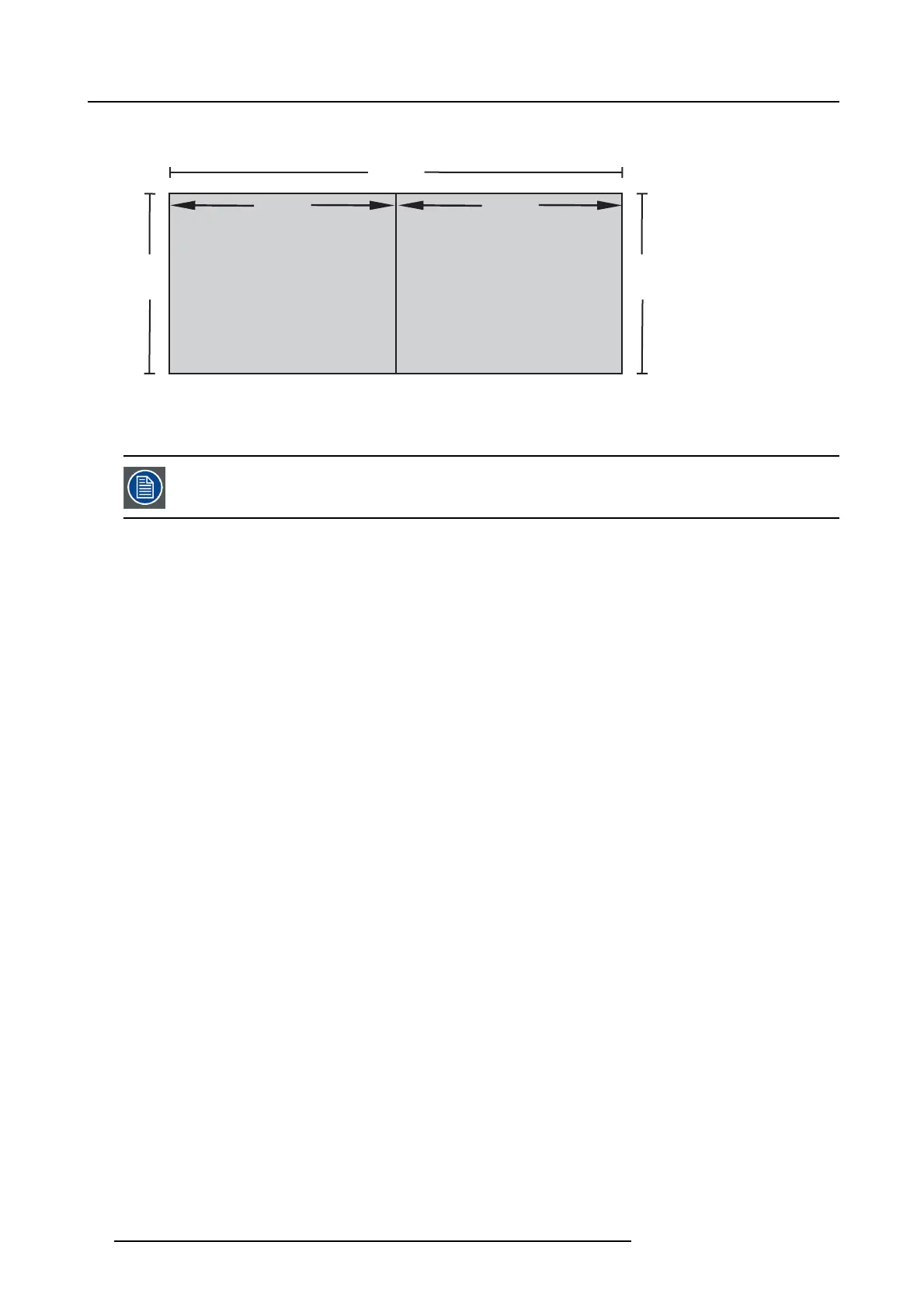

Image 6-1
An example of this is feeding a WQ XGA (3840 x 2400)source with 1920 x 2400 s ource re solutions at each DVI-I interfaces.
For Images to be displayed in this mode, the resolution must be the same on both chan nels
Signal source setup.
When using d ual inputs, it is important that the signal sources are set up correctly, with the co rrect resolution. P lease refer to the
manual for the source itself (PC, Graphic driver card..) in order to obtain a correct setup. When no t correct setup, no picture will be
visible in dual mode. The resolution for each dual channel can be up to 1920x2400 pixels.
