2. Parts, controls and connectors
12 Not connected
13 Not connected
14
+5V input (DDC supply) (*)
15
GND (cable sense)
16
Hotplugdetect(*)
17
D0_Rx- (T.M.D.S.)
18
D0_Rx+ (T.M.D.S.)
19
GND (data 0 shield)
20 Not connected
21 Not connected
22
GND (clock shield)
23
CK_Rx+ (T.M.D.S.)
24
CK_Rx- (T.M.D.S.)
C1
Analog Red
C2 Analog Green
C3
Analog Blue
C4
Analog horizontal sync
C5 Analog GND return (analog R, G, B)
(*) +5 VDC output selectable on either pin 14 or 16 via the OSD menu. (+5V ± 10% @ 500mA (max))
2.4.3 DVI ou t connector
Overview

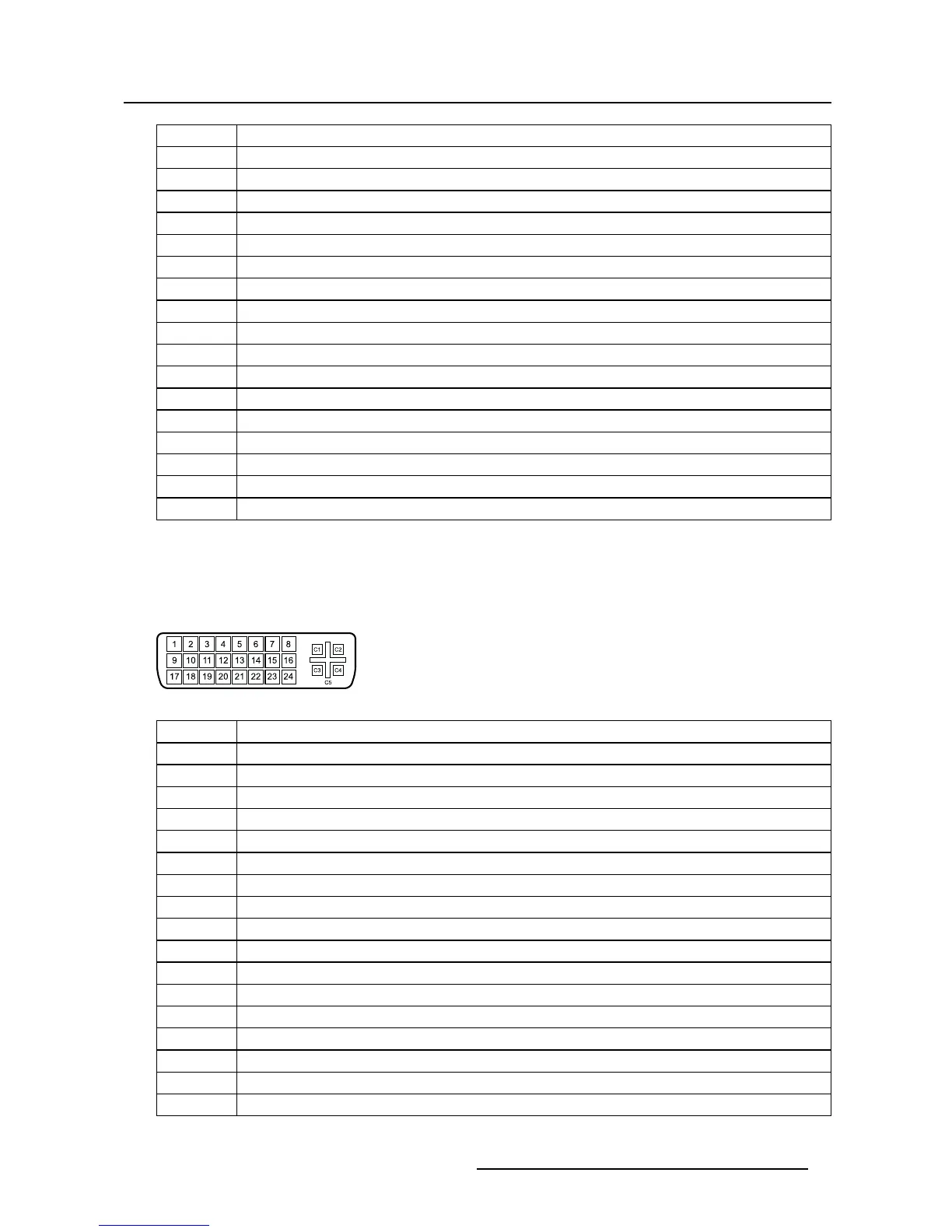

Image 2-7
Pin Function
1
D2_Rx- (T.M.D.S.)
2
D2_Rx+ (T.M.D.S.)
3
GND (data 2 shield)
4 Not connected
5
Not connected
6
SCL (for DDC)
7
SDA (for DDC)
8 Not connected
9
D1_Rx- (T.M.D.S.)
10
D1_Rx+ (T.M.D.S.)
11
GND (data 1 shield)
12 Not connected
13 Not connected
14
+5V output (*)
15
GND (cable sense)
16 Hot plug detect
17
D0_Rx- (T.M.D.S.)
